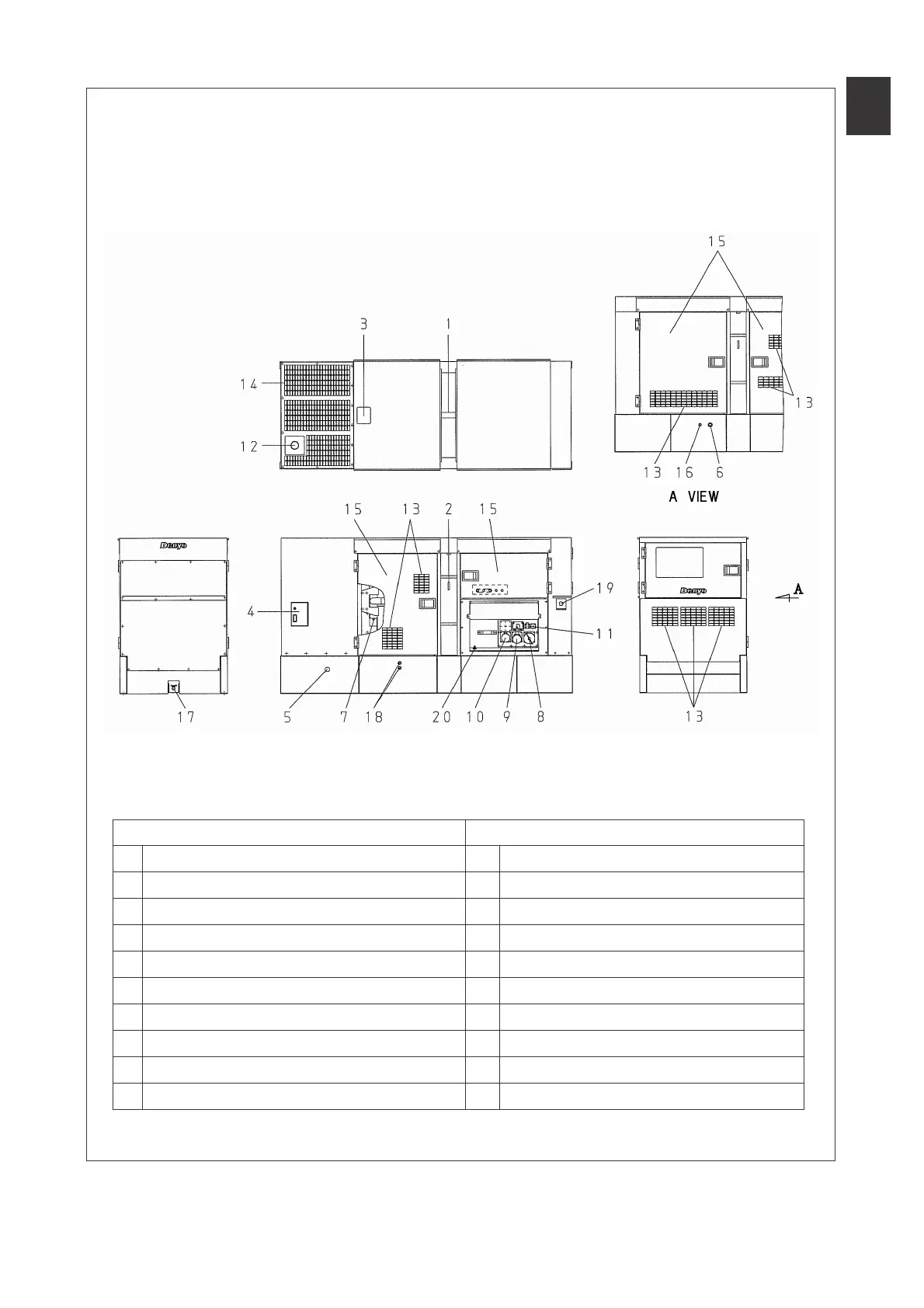

Fig. 2 Model DCA-125ESEI
Parts number
Parts number
1. Hanger 11. Single phase output receptacle 16A
2. Rope hanger 12. Engine exhaust port
3. Radiator cooling water refilling port cover 13. Cooling air intake port
4. Fuel tank refilling port cover 14. Cooling air exhaust port
5. Fuel drain plug 15. Side door
6. Oil drain plug 16. Drain plug engine cooling water
7. Intercooler drain plug 17. Environment base drain
8. Three phase output receptacle 125A 18. Three-way valve
9. Three phase output receptacle 63A 19. Emergency stop button
10. Three phase output receptacle 32A 20. PE earthing terminal
