28
DEPA
®
Air Operated Diaphragm Pumps

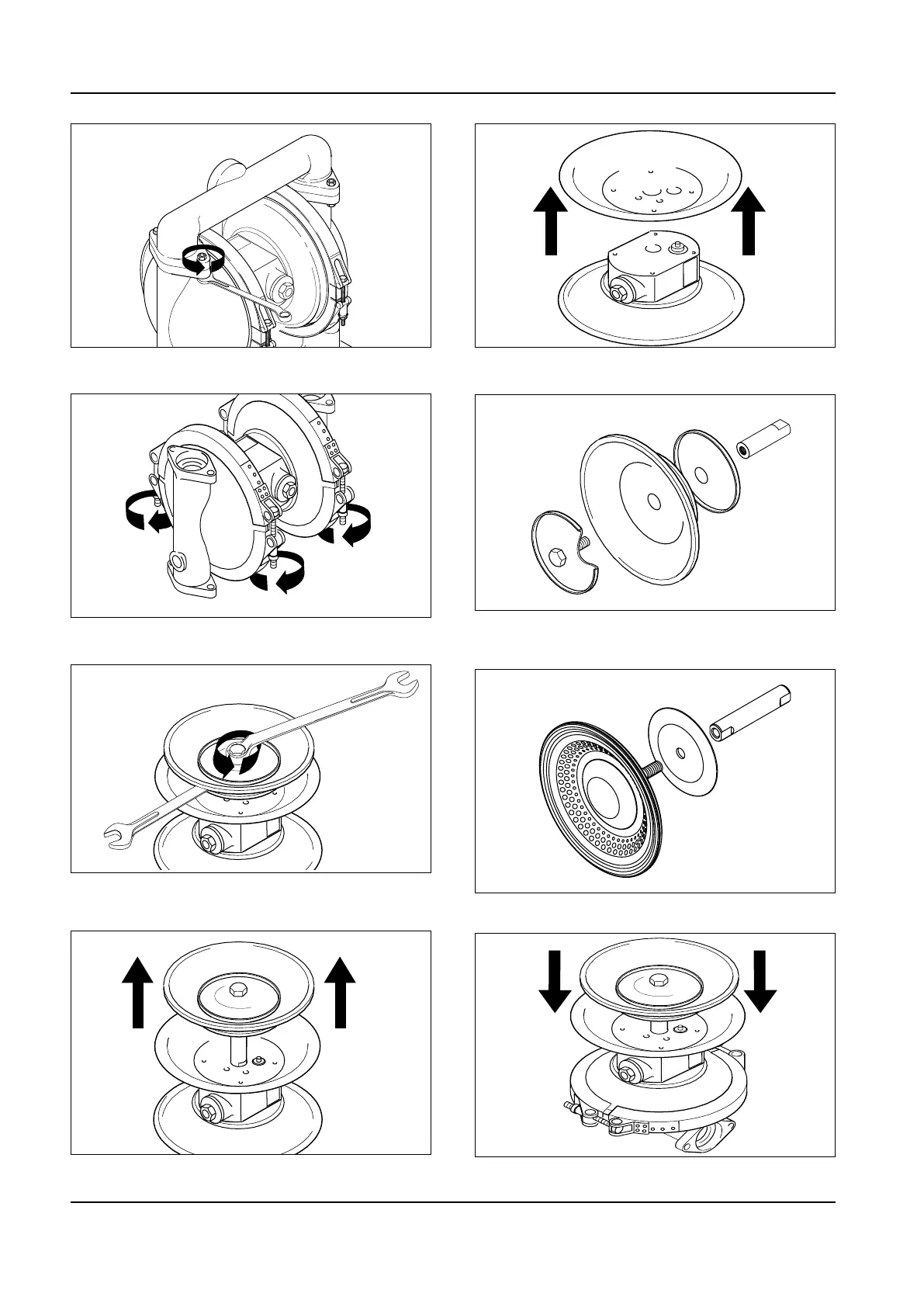

Fig. 13: Assembly of standard diaphragm with inner
and outer plate
Fig. 12: Disassembling the air chambers
Fig. 14: Installation of nopped E4
®
diaphragm.
Fig. 15: Assembly of second pump chamber
Fig. 9: Opening the clamp bands.
Fig. 8: Removing suction and pressure ports.
Fig. 10: Loosen the diaphragm plate. (Not used for
nopped E4
®
diaphragms.)
Fig. 11: Pulling out the piston rod.
