Depa DH40-FA - Page 48

48
DEPA
®
Air Operated Diaphragm Pumps

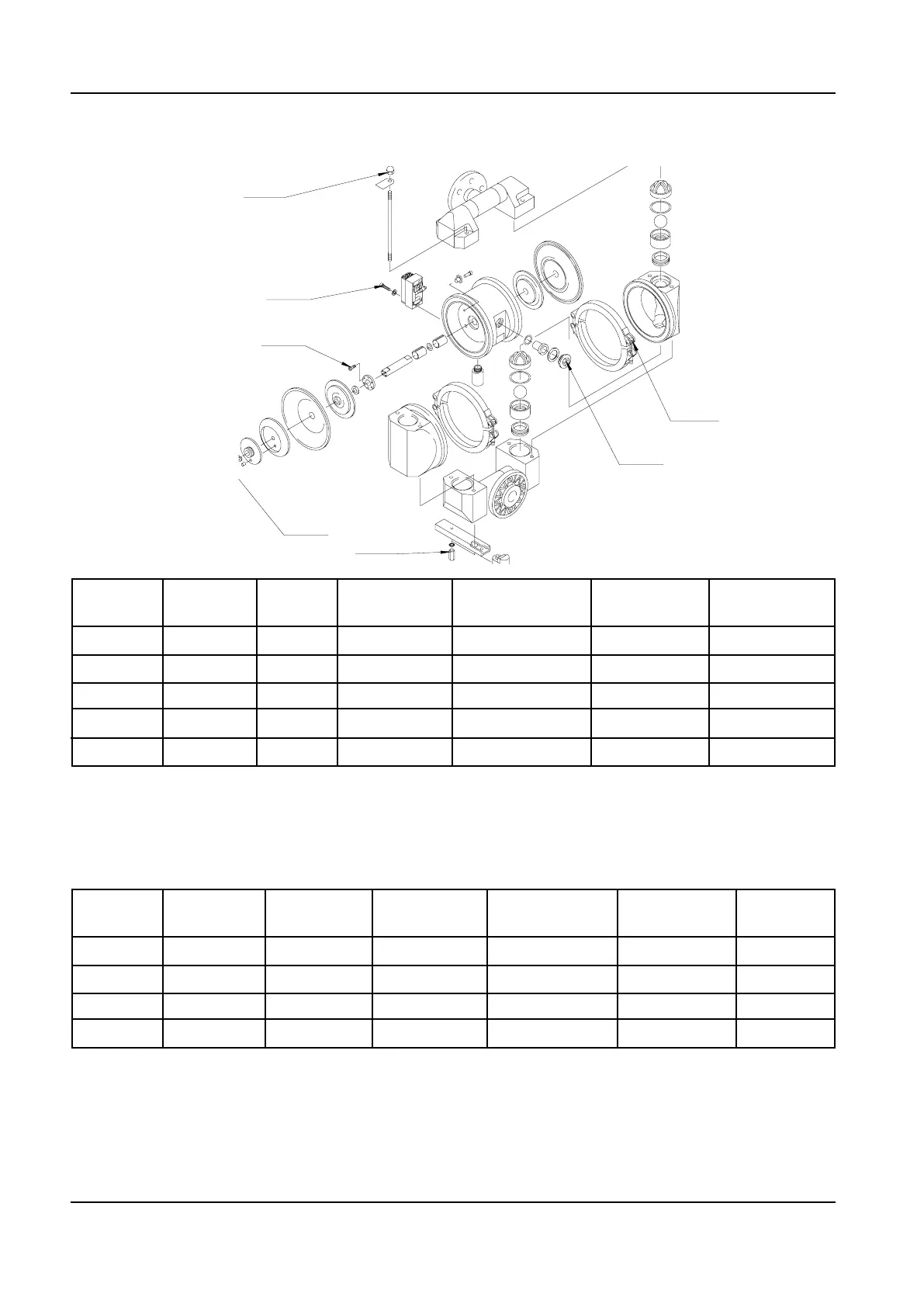

Pos. 2
Pos. 3
Pos. 6
Pos. 4
Pos. 1
Pos. 1
Pos. 7
Tightening torques series P,
size 15-80
Pump size Anchor rod Air inlet Air valve Piston Centre block Clamp band
Pos. 1 Pos. 2 Pos. 3 Pos. 4 cover, Pos. 6 Pos. 7
DL15-P 10 Nm - - 6 Nm 2,5 Nm 7 Nm
DL25-P 10 Nm 50 Nm 8 Nm 70 Nm 2,5 Nm 8 Nm
DL40-P 25 Nm 50 Nm 8 Nm 90 Nm 2,5 Nm 10 Nm
DL50-P 49 Nm 85 Nm 8 Nm 150 Nm 5,5 Nm 12 Nm
DL80-P 49 Nm 85 Nm 8 Nm 150 Nm 5,5 Nm 15 Nm
Tightening torques series PT,
size 15-80 (drawing see above)
Pump size Anchor rod Air inlet Air valve Piston Centre block Clamp band
Pos. 1 Pos. 2 Pos. 3 Pos. 4 cover, Pos. 6 Pos. 7
DL15-PT 10 Nm - - 5 Nm 2,5 Nm 7 Nm
DL25-PT 10 Nm 50 Nm 8 Nm 70 Nm 2,5 Nm 8 Nm
DL40-PT 22 Nm 50 Nm 8 Nm 90 Nm 2,5 Nm 10 Nm
DL50-PT 25 Nm 85 Nm 8 Nm 150 Nm 5,5 Nm 12 Nm
