DEPA
®
Air Operated Diaphragm Pumps
Pos. 6
Pos. 7
Pos. 2
Pos. 1
Pos. 7
Pos. 1
Pos. 4
Pump size Manifold / Air inlet Diaphragm Centre block Pump chamber /
Pump chamber cover Centre block
Pos. 1 Pos. 2 Pos. 4 Pos. 6 Pos. 7
DH15-PT/TL 3 Nm 50 Nm 1 Nm 2,5 Nm 6 Nm
DH25-PT/TL 5 Nm 50 Nm 1 Nm 2,5 Nm 6 Nm
DH40-PT/TL 5 Nm 50 Nm 1 Nm 2,5 Nm 6 Nm

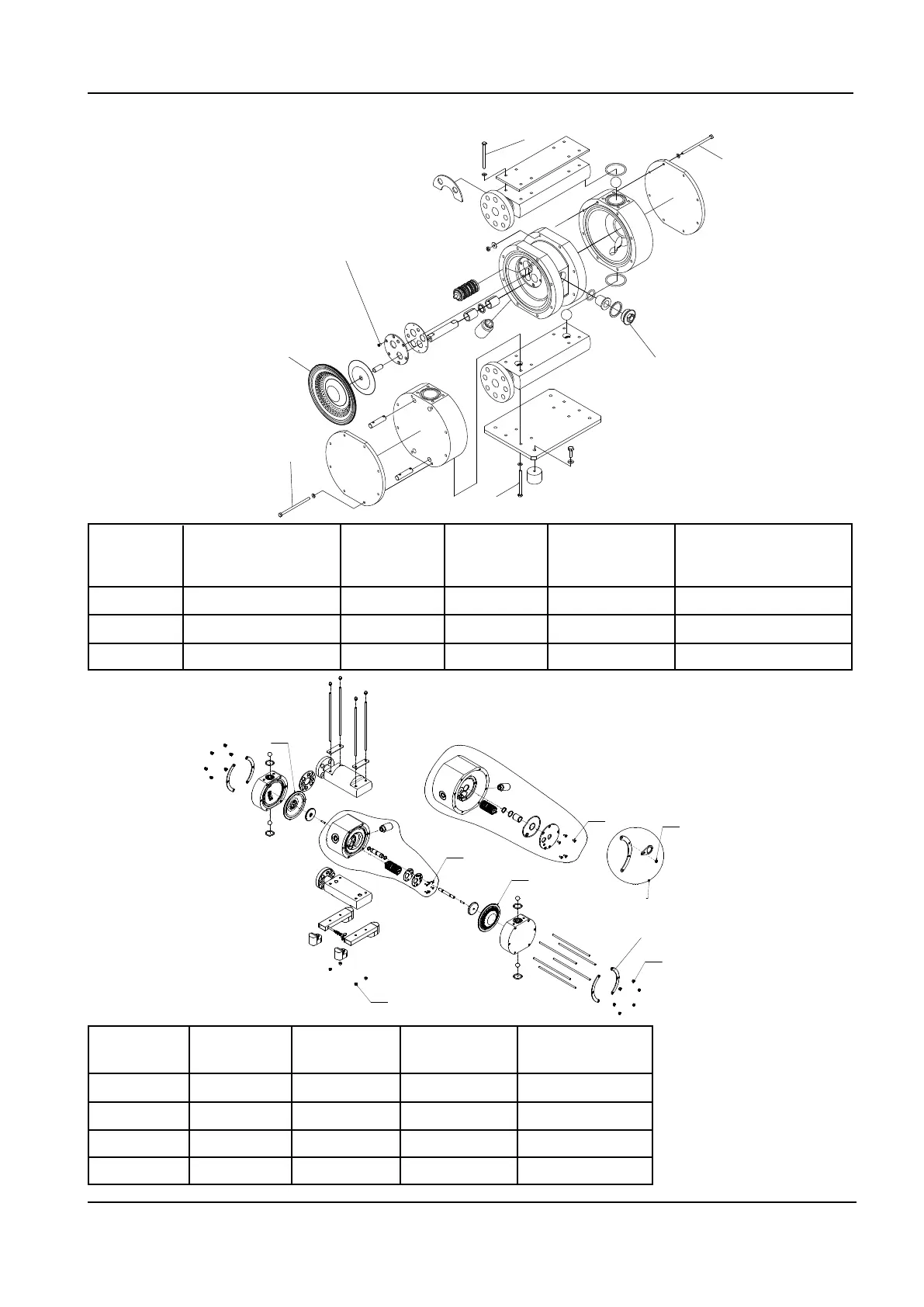

Tightening torques series P, type DH-PT/-TL
size 15-40
Tightening torques series P, Typ TP, TPL
size 15-50
R
Pos.7
Pos.6
Pos.1
Pos.6
Pos.4
Pos.4
für DH25/40 gilt (beidseitig): /
for DH25/40 applies (both sides):
Pos.7
Pump size Manifold Diaphragm Centre block Pump chamber
Pos. 1 Pos. 4 cover Pos. 6 Pos. 7
DH15-TP, TPL 4 Nm 1 Nm 3 Nm 4 Nm
DH25-TP, TPL 4 Nm 1 Nm 5 Nm 4 Nm
DH 40-TP, TPL 8 Nm 1 Nm 5 Nm 8 Nm
DH 50-TP, TPL 12 Nm 1 Nm 5 Nm 26 Nm
2 times for each, for sizes 40 and 50
