Operation EN
42 / 84 03/2020

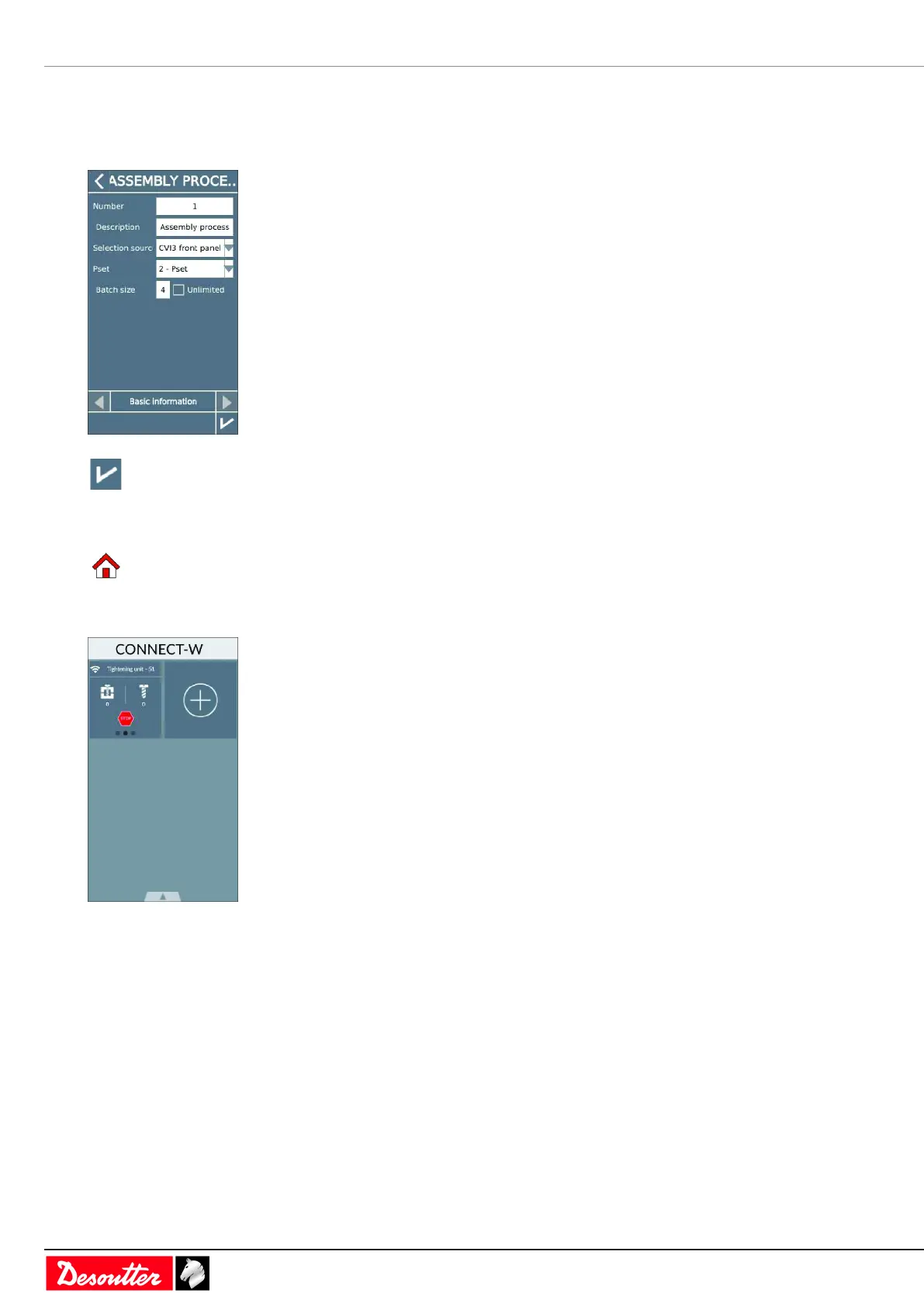

• Tool display
Select the Pset to execute.
Enter the batch size i.e. the number of times the Pset will be executed: 1-99 or unlimited.
Example:
Tap this icon to validate.
Executing the Assembly Process
Tap this button on the front panel to display the start screen.
Swipe the tile.
Click the body of the tile.
Select Assembly Process 1 in the list.
