原厂说明

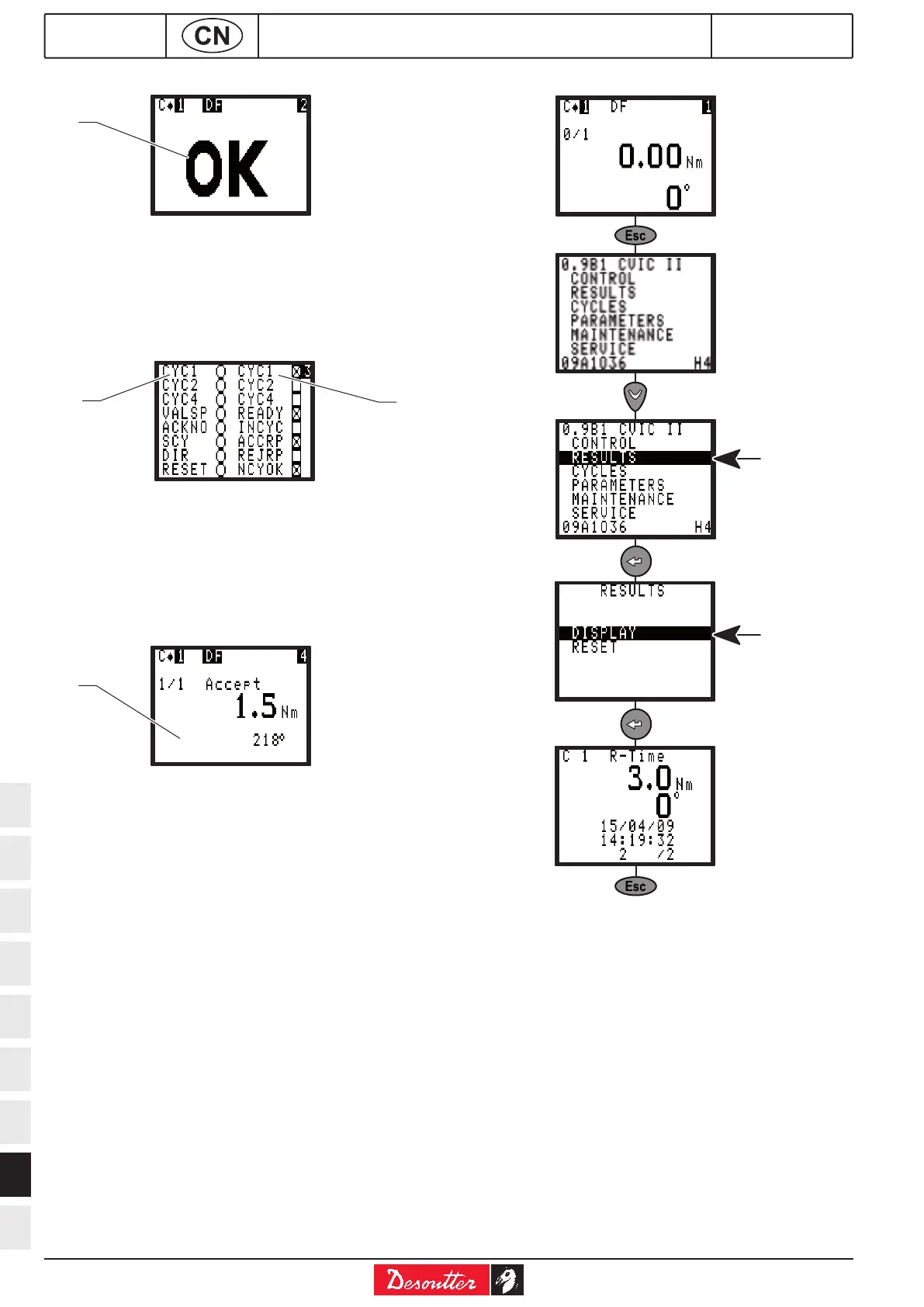

界面 2
1
图例
1 拧紧作业报告
界面 2 显示拧紧作业报告(1): OK(正常)或
NOK(异常)
界面 3
1
2
图例
1 输入信号状态
2 输出信号状态
按照拧紧作业报告,提供输入信号(1)(左列)和
输出信号(2)(右列)的状态信息。
界面 4
02513654
1
图例
1 条形码扫描结果
界面 4 显示条形码扫描结果(1)。
4.2.8 - Results(作业结果)菜单
在该菜单中,操作者可以查看和删除拧紧作业结
果。
