CONDUIT ENTRIES—
3/4” NPT or M25.
ENCLOSURE MATERIAL—
Epoxy coated aluminum or 316 stainless steel.
SHIPPING WEIGHT—
Aluminum: 4.15 pounds (1.88 kilograms).
Stainless steel: 10.5 pounds (4.76 kilograms).
WARRANTY—
12 months from date of installation or 18 months from
date of shipment, whichever occurs first.
DETECTOR COMPATIBILITY—
The UD10 can be used with the Det-Tronics gas
detectors listed in Table 5.
UNIT OF MEASUREMENT—
PPM, % LFL, % V/V, LFLM, or Mg/M
3
.

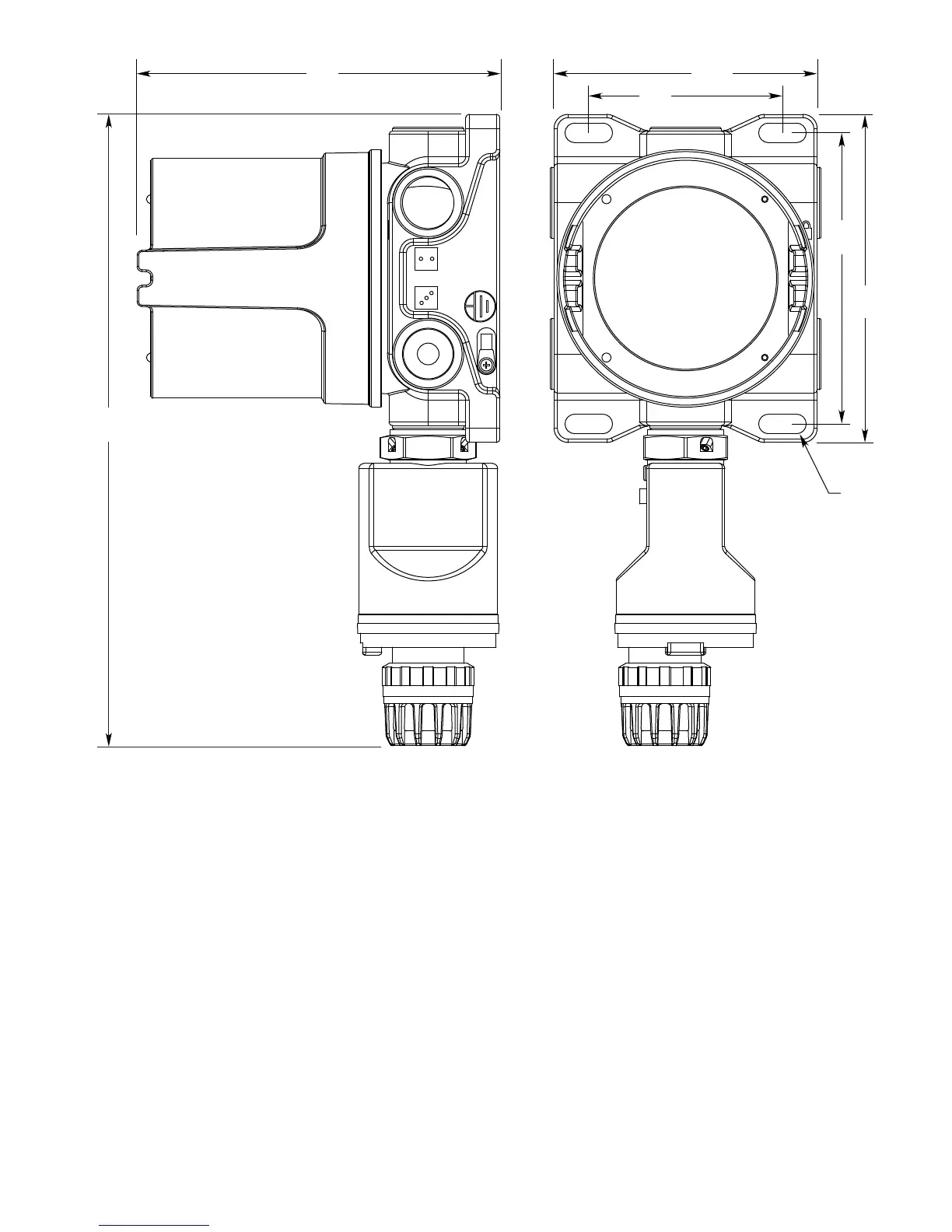

Figure 12—Dimensions of UD10 with GT3000 in Inches (Centimeters)
11.28
(28.7)
6.48
(16.5)
3.46
(8.8)
4.7
(11.9)
5.2
(13.2)
R0.175
5.86
(14.9)
A2442
