Det-Tronics UD10 User Manual

4.1 95-8661K-1
AppenDix K
UD10 with C706X TOXIC GAS SENSOR
NOTE
For complete information regarding the C7064E H2S Gas Sensor, refer to instruction manual 95-8396.
For the C7067E Chlorine Gas Sensor, refer to instruction manual 95-8439.

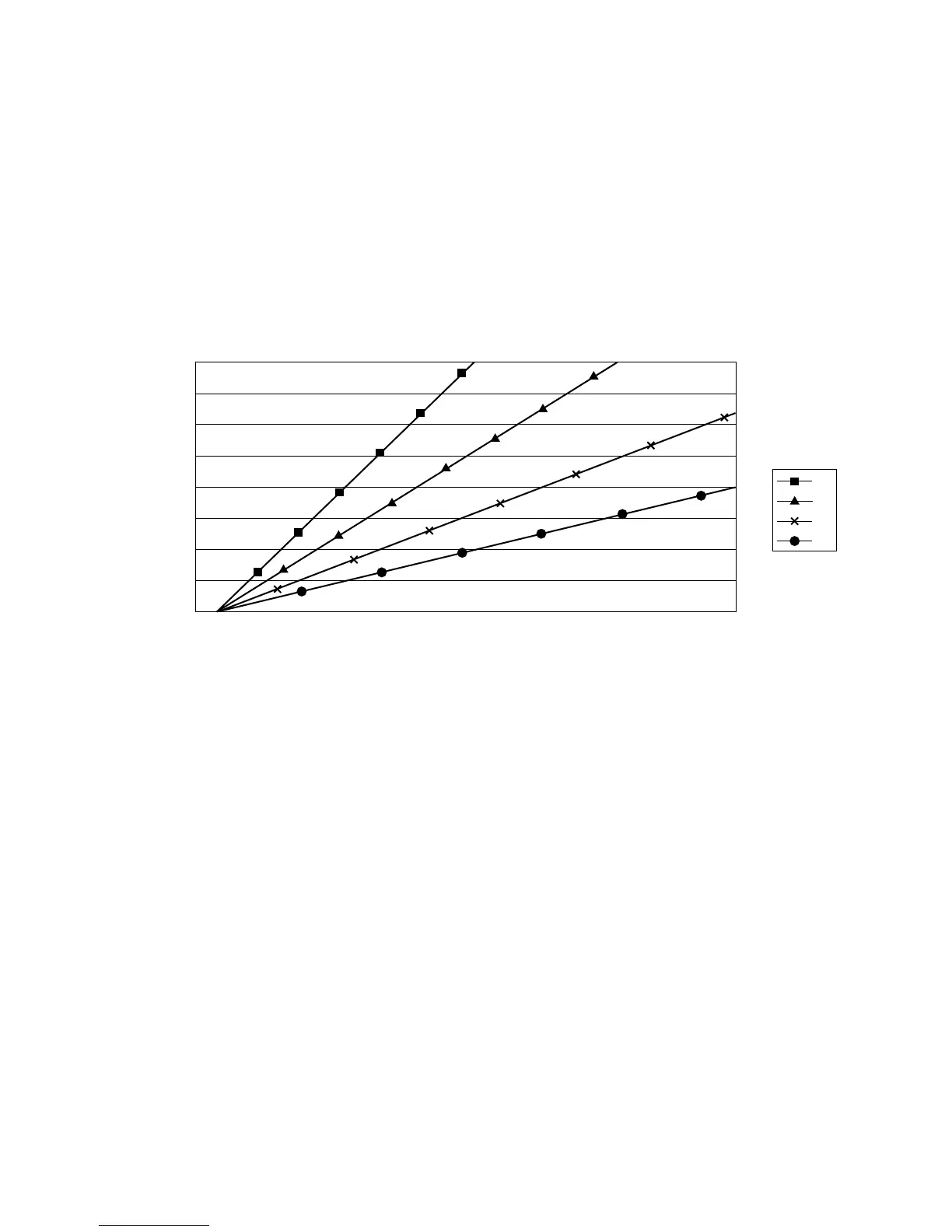

WirinG
4000
3500
3000
2500
2000
1500
1000
500
0
18 19 20 21 22 23 24 25 26 27 28 29 30
Power Supply Voltage
Distance in ft.
UD10 with GT3000/C706X
12
14
16
18
AWG
Wire Size
Notes: Maximum cable length from power source to UD10 is 2000 feet.
Maximum cable length from UD10 to sensor/STB termination box is 2000 feet.
