20 95-8661
4.1
CERTIFICATION—
For complete approval details, refer to the appropriate
Appendix:
FM
APPROVED
®
Appendix A – FM
Appendix B – CSA
Appendix C – ATEX
Appendix D – IECEx
SIL Approval - IEC 61508
Certified SIL 2 Capable.
For specific information regarding SIL safety
certification, refer to the Model UD10 Safety Reference
Manual (form 95-8668).
DeVice repAir AnD return
Prior to returning devices, contact the nearest local
Detector Electronics office so that a Return Material
Identification (RMI) number can be assigned. A
written statement describing the malfunction must
accompany the returned device or component to
assist and expedite nding the root cause of the
failure.
Pack the unit properly. Always use sufficient packing
material. Where applicable, use an antistatic bag
as protection from electrostatic discharge. The RMI
number should be clearly marked on the outside of the
box.
NOTE
Inadequate packaging that ultimately causes
damage to the returned device during shipment
will result in a service charge to repair the damage
incurred during shipment.
Return all equipment transportation prepaid to the
factory in Minneapolis.
NOTE
It is highly recommended that a spare be kept on
hand for eld replacement to ensure continuous
protection.

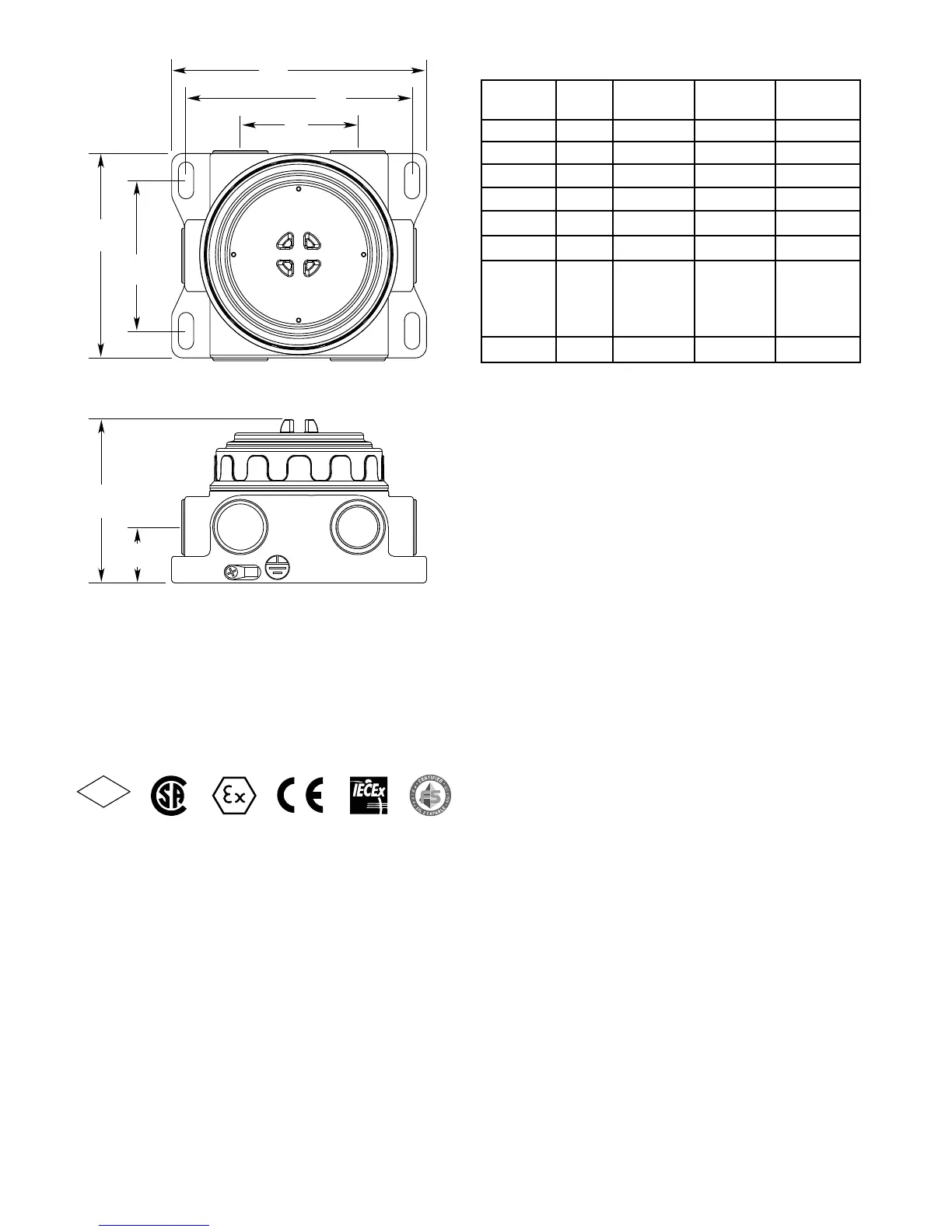

Figure 13—Dimensions of Model STB Termination Box
in Inches (Centimeters)
3.77
(9.6)
1.28
(3.3)
3.46
(8.8)
4.7
(11.9)
2.7
(6.9)
5.2
(13.2)
5.86
(14.9)
C2281
Device Toxic
1
Catalytic
Combustible
IR
2
Combustible
Instruction
Manual
GT3000 X 95-8616
PIR9400 X 95-8440
PIRECL X 95-8526
OPECL X 95-8556
CGS X 90-1041
505/CGS X 95-8472
C706X
3
X
95-8396
95-8411
95-8414
95-8439
NTMOS
4
X 95-8604
1 Hydrogen sulde, Ammonia, Chlorine, Hydrogen, Oxygen,
Carbon Monoxide, and Sulfur Dioxide.
2 Methane, Ethane, Ethylene, Propane, and Propylene.
3 C7065E Oxygen detector is not supported.
4 Hydrogen sulde only.
Table 5—Gas Detectors Compatible with the UD10
