Detecto 7550

PARTS IDENTIFICATION

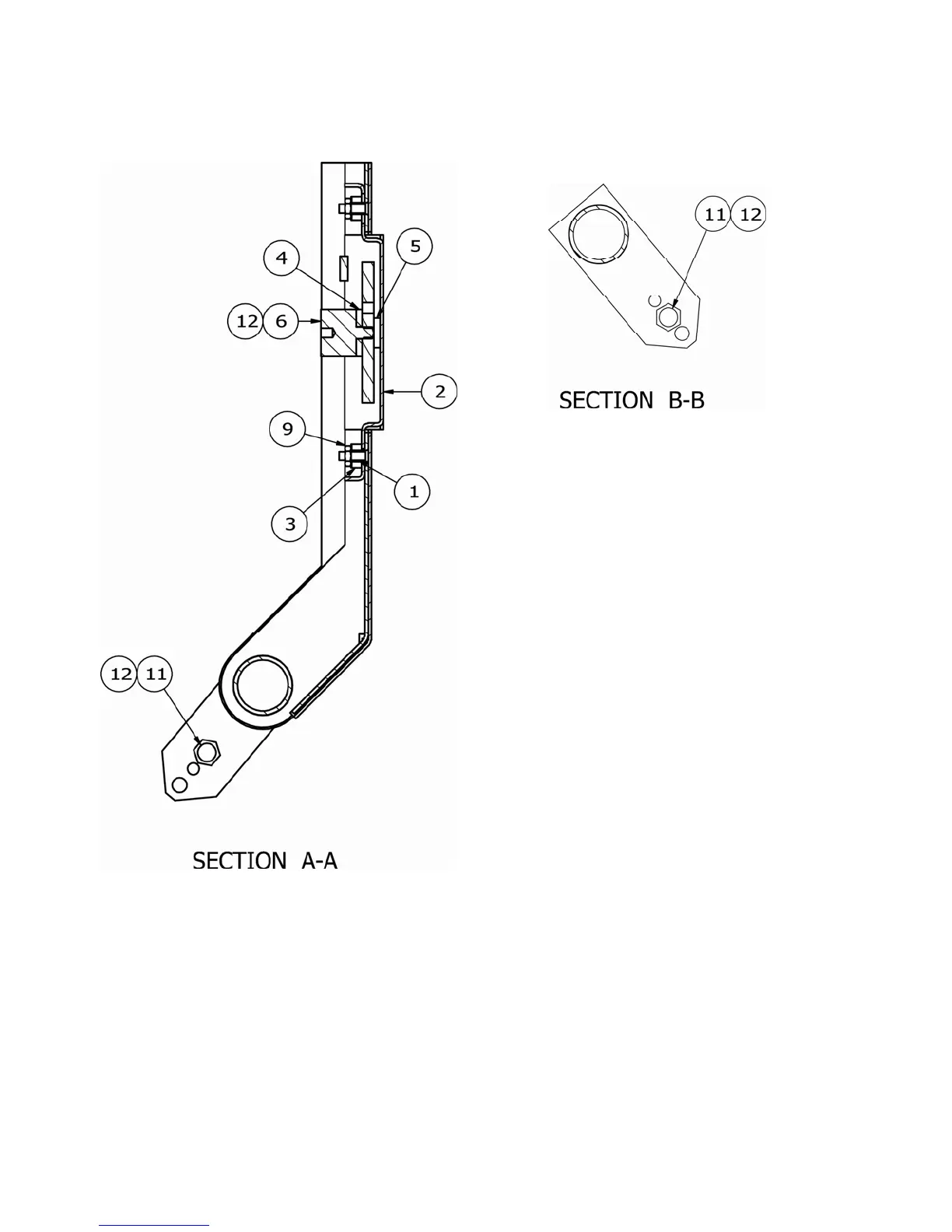

SUPPORT TRAY ASSEMBLY, CONT.
DESCRIPTION
SPACER
LOAD CELL FOOT WELDMENT
LOAD CELL MOUNT SPRING
LOAD CELL SPACER
LOAD CELL WASHER
WEIGHBRIDGE MOUNT, 7550
NUT #10-32 HEX Z/P
BALL STUD, GAS SPRING, 10 MM DIA, 5/16” - 18
ADHESIVE LOCTITE 242 THRDLCKR, REMOVABLE
ITEM QTY PART NUMBER
1 8 0031-B014-08
2 4 0065-B632-0A
3 8 0065-B635-08
4 4 0065-B636-08
5 8 0065-B637-08
6 4 0065-B642-08
9 16 6013-0295
11 4 6031-0220
12 AR 6560-1125
0065-0647-0M Rev A  7550 FOLD-UP STATIONARY SCALE
15
