Detecto 7550

PARTS IDENTIFICATION

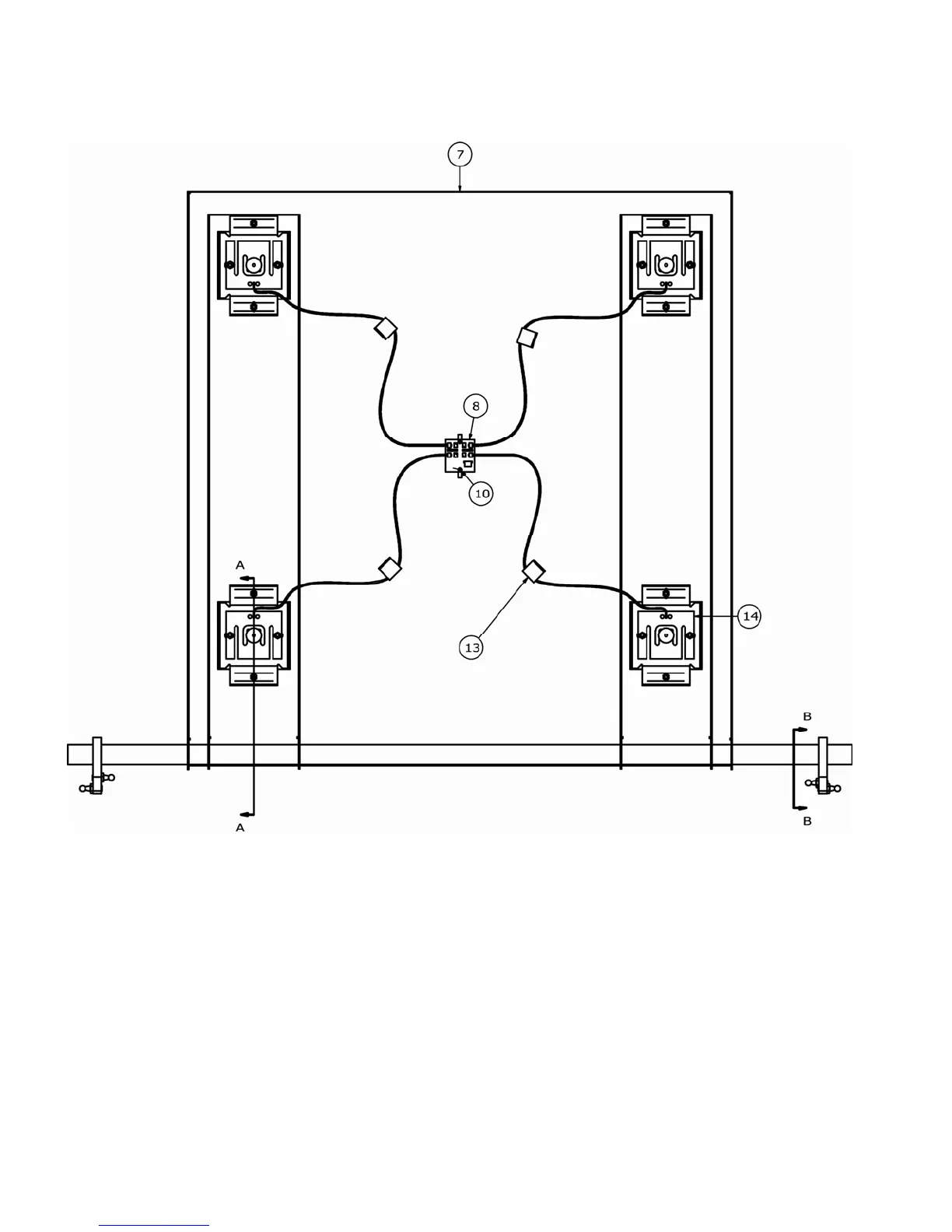

SUPPORT TRAY ASSEMBLY
ITEM QTY PART NUMBER DESCRIPTION
7 1 0065-D627-0A SUPPORT FRAME
8 1 3502-B629-0A PCB 7550 4 CELL TRIM BOARD
10 2 6021-0654 SCW PAN-HEAD. MACHINE-SCW 06-32X 0.25
13 4 6610-5007 CABLE CLIP, 1” X 1” GREY
14 4 FP-250 LOAD CELL, FLAT PLATE, 250 LBS
0065-0647-0M Rev A  7550 FOLD-UP STATIONARY SCALE
14
