Deutz 914 - 2.2 Engine Illustrations; 2.2.8 Exhaust side BF6 L 914

2
© 2001

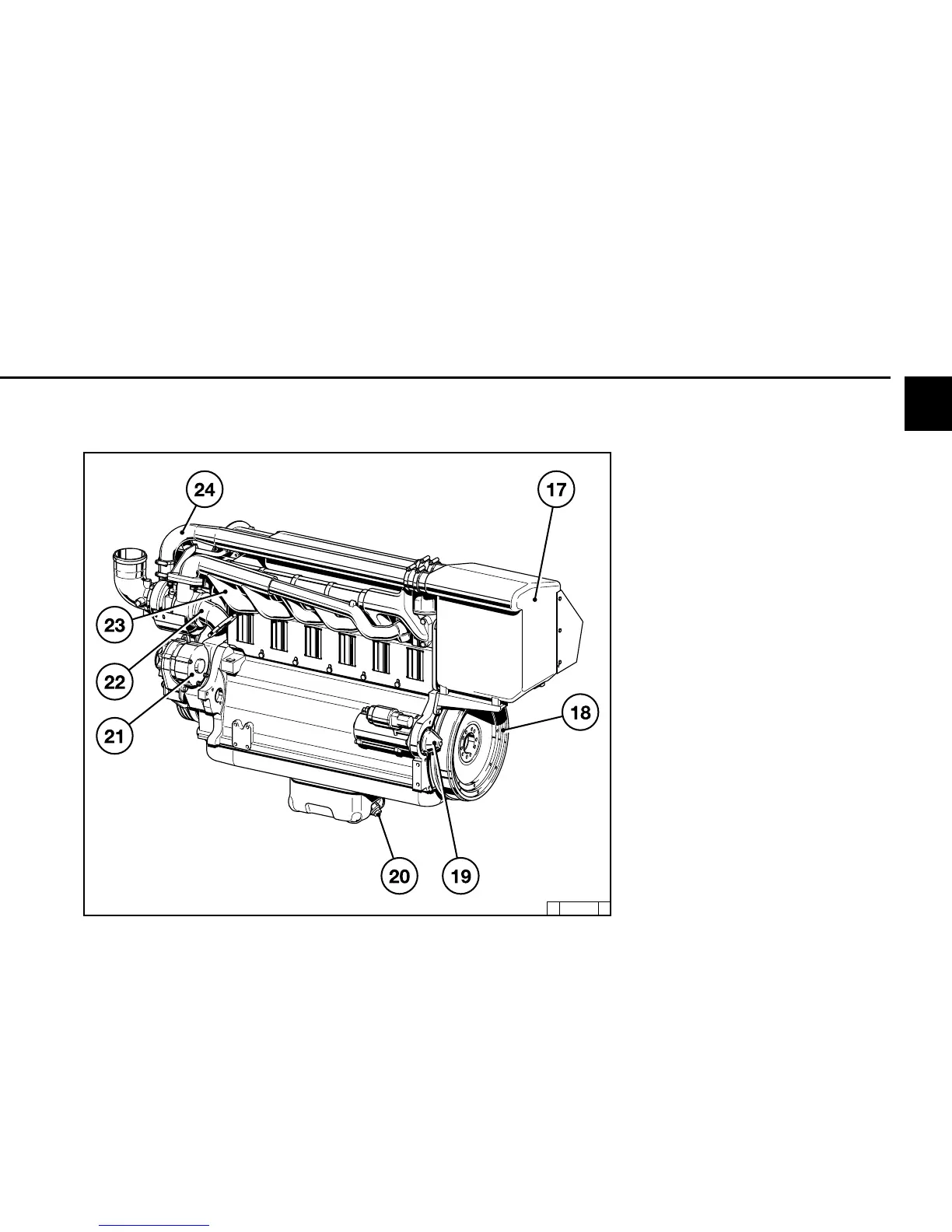

17 Intercooler
18 Flywheel
19 Starter
20 Oil drain screw
21 Alternator
22 Exhaust connection supports
23 Exhaust manifold line
24 Air-intake manifold to exhaust turbocharger
2.2 Engine Illustrations Engine Description
2.2.8 Exhaust side
BF6L 914 - intercooler over flywheel
© 34 580 0
