Engine Operation 3.3 Monitoring Operation

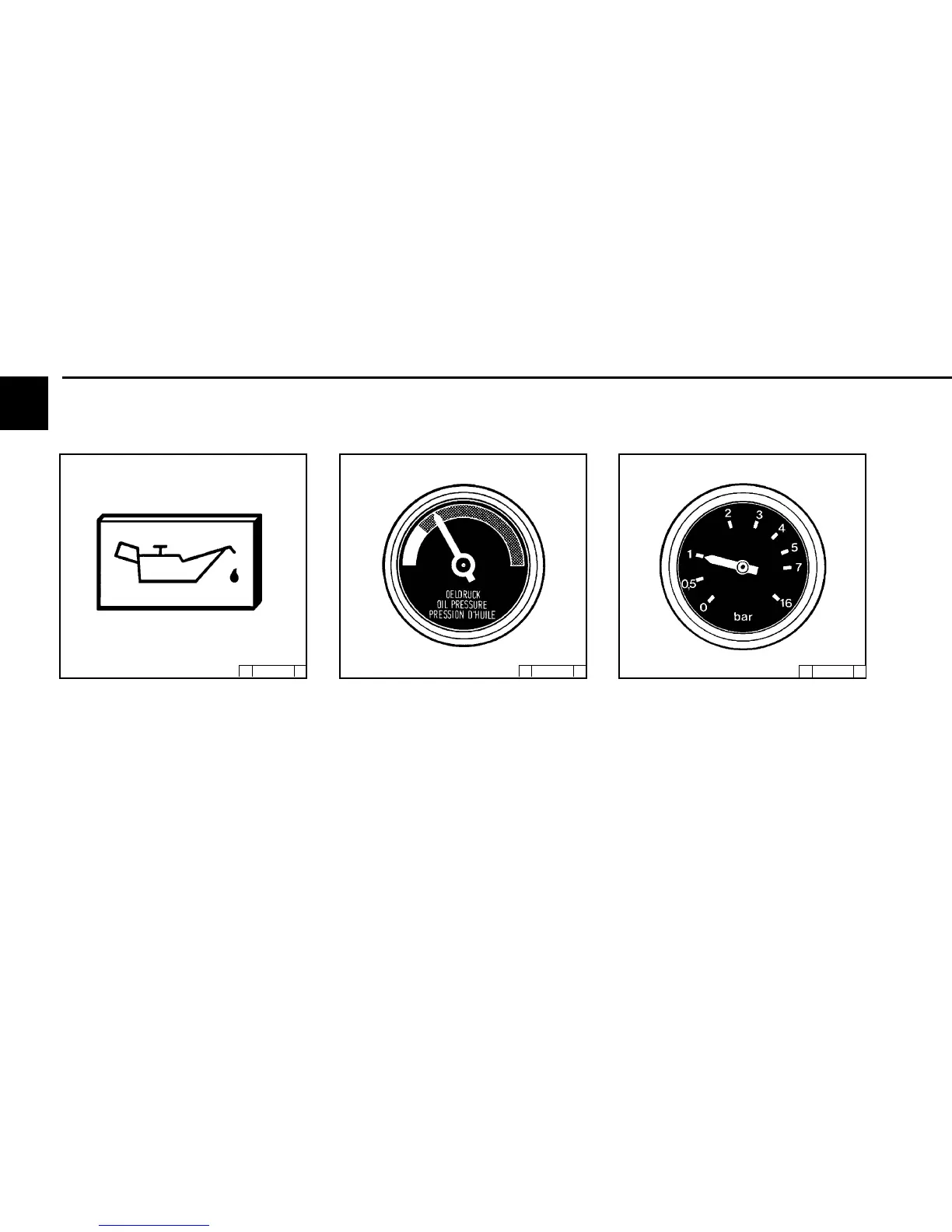

Oil Pressure Indicator Oil Pressure Gauge
● The oil pressure pilot light comes on with
operating voltage on and engine off.
● The oil pressure pilot light should go out
when the engine is running.
● The pointer must remain in the green sector
over the entire operating range.
● The pointer of the oil pressure gauge must
display the minimum oil pressure (see 9.1).
3.3.1 Engine Oil Pressure
Oil pressure pilot lights
© 25 752 1 © 25 753 0
© 25 754 0
