Deutz 914 - 6.5 Belt Drives; 6.5.1 Check V-belts; 6.5.2 Fan V-belt

6
© 2001

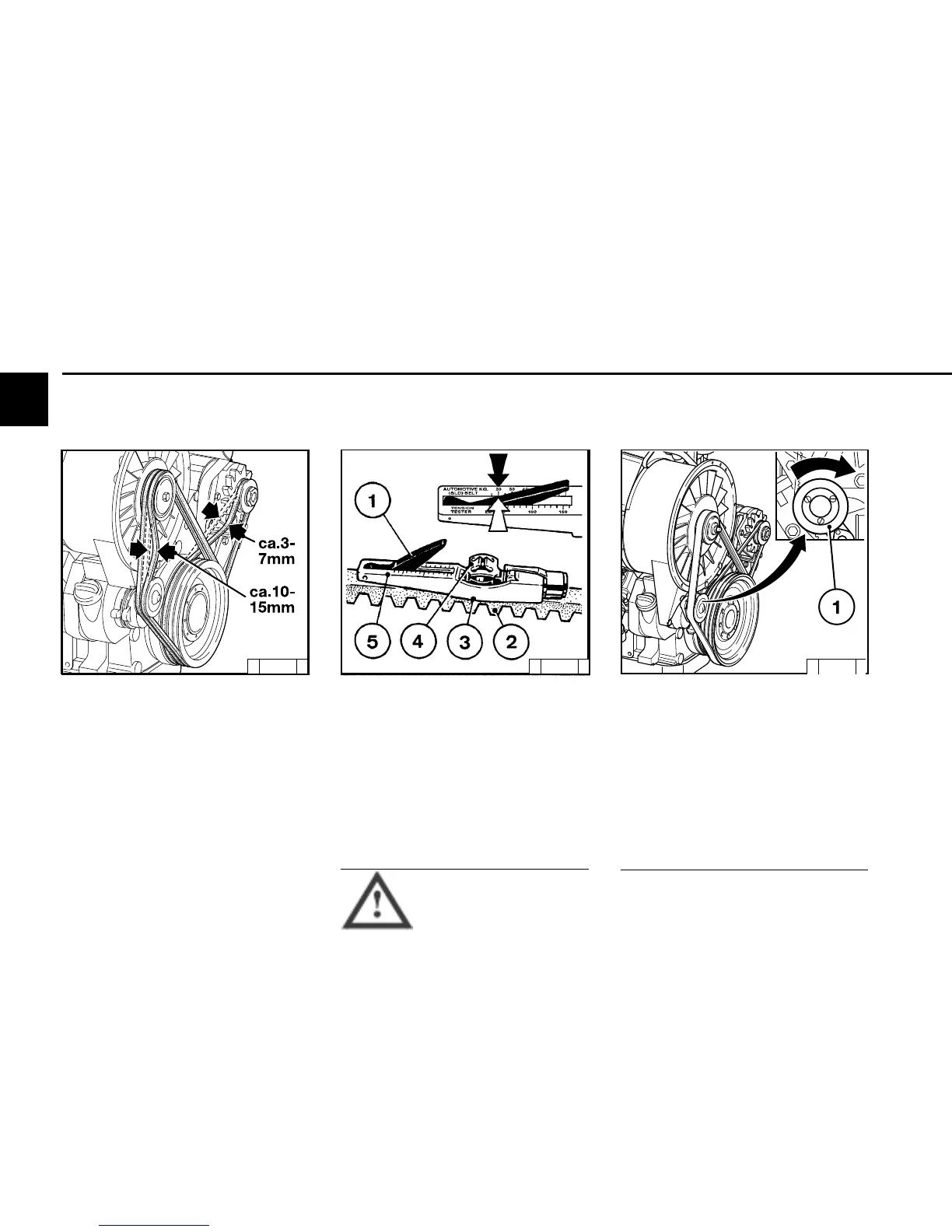

Read off the value where the indicator
arm 1 intersects scale 5 (arrow). For
settings, see 9.1.
- If necessary, retension belt and measure
again.
Check, tension and change belts
only with the engine off. Rein-
stall V-belt guard
● Visually inspect entire V-belt for damage.
● Replace damaged V-belts.
● After installing new belts, run engine for 15
minutes, then check belt tension.
● To check the tension of the V-belt, use a
tension gauge (see 9.3).
- Place indicator arm 1 into gauge.
- Position guide 3 on V-belt 2, midway
between the pulleys, with flange 3 on
bottom of gauge against the edge of belt.
- Push slowly on the black pad 4 at right
angles to V-belt 2 until the spring is heard
or felt to trigger.
- Carefully remove the gauge without
altering the position of the indicator arm 1.
Service and Maintenance 6.5 Belt Drives
● To replace the tension roller 1, press in-
wards with a commercial tool and remove
the V-belt.
● Position new ribbed V-belt.
Retension V-belt after it has ran for 15 min-
utes.
6.5.1 Check V-belts
6.5.2 Fan V-belt
© 24 684 1 © 35 203 0
© 35 209 0
