Deutz 914 - 6.5 Belt Drives; 6.5.3 Alternator belts; 6.5.4 Change alternator belt; 6.5.5 Check warning system

6
© 2001
6.5 Belt Drives Service and Maintenance

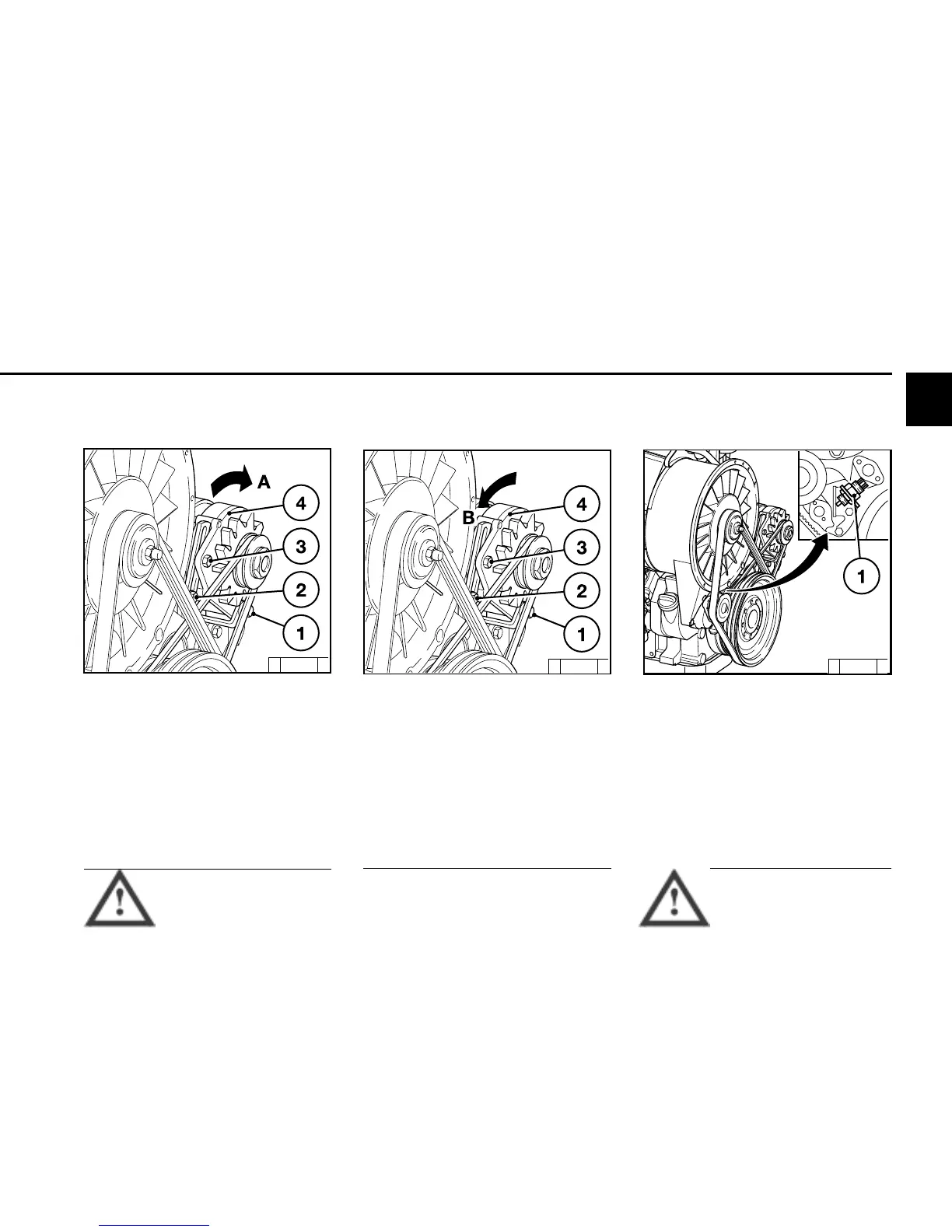

● Loosen bolts 1, 2 and 3 slightly.
● Press alternator 4 outwards in direction
of arrow A until correct belt tension is
achieved.
● Retighten bolts 1, 2 and 3.
Check, tension and change belts
only with the engine off. Rein-
stall V-belt guard.
● Remove fan belt, as shown in 6.5.2.
● Slacken off bolts 1, 2 and 3.
● Swing alternator inwards in the direction
of arrow B.
● Remove and replace belt.
● Swing alternator 4 outwards in direction
of arrow A until correct belt tension is
achieved.
● Retighten bolts 1, 2 and 3.
● Fit fan belt.
Retension V-belt after it has ran for 15 min-
utes.
● When the V-belt is torn, the pressure pin 1
of electrical switch is actuated by the
tension roller and an audio signal or a light
signal is emitted.
● Check the function by pressing pin 1.
Only check function when the
engine is off!
6.5.3 Alternator belts 6.5.5 Check warning system6.5.4 Change alternator belt
© 35 207 0
© 35 208 0 © 35 202 0
