Deutz 914 - 2.5 Engine Cooling; 2.5.1 Amount of cool air regulated by exhaust thermostat

2
© 2001

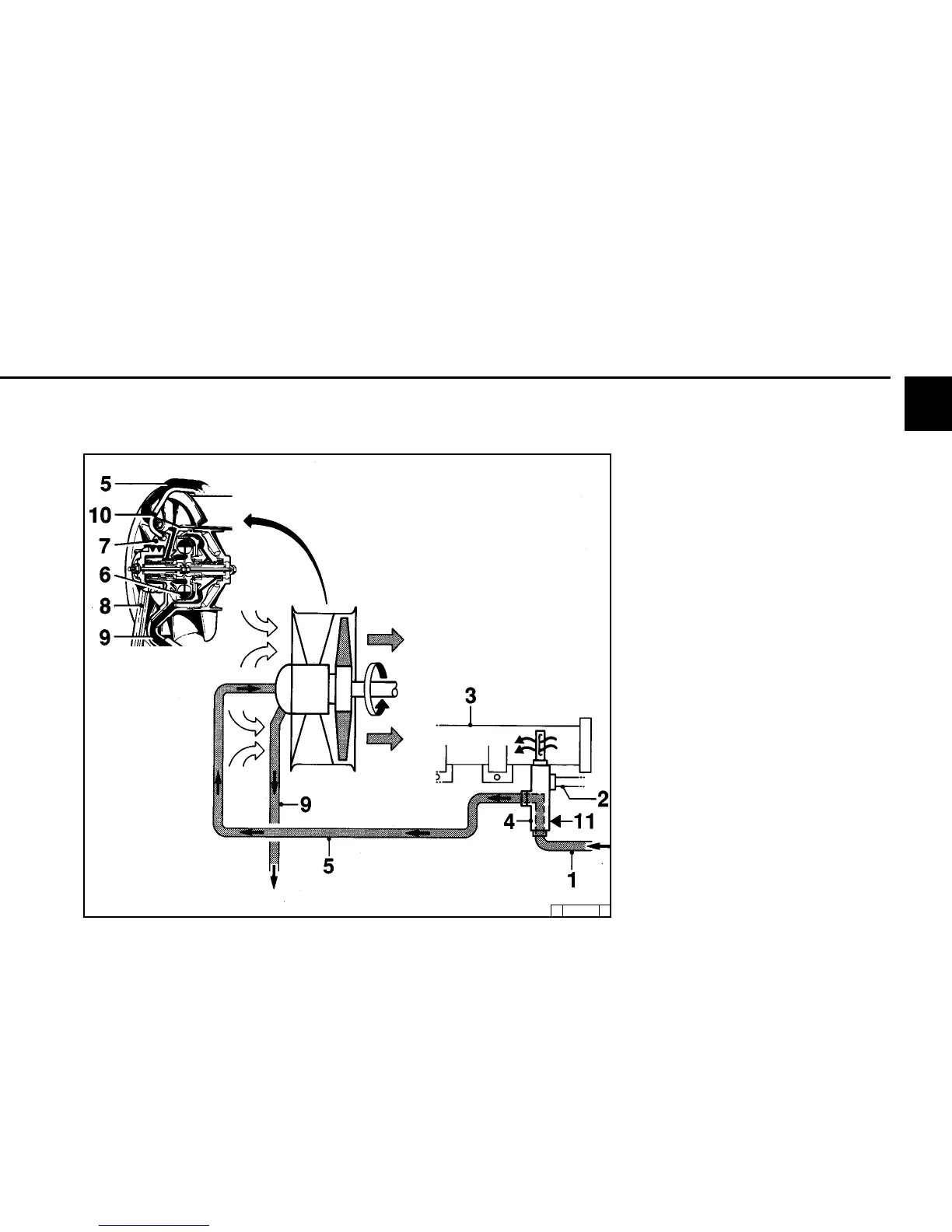

1 Pressure oil line from engine to exhaust
thermostat
2 Air line to exhaust thermostat
3 Exhaust manifold line
4 Exhaust thermostat
5 Control line to hydraulic coupling
6 Hydraulic coupling
7 Cooling fan
8 Cooling fan drive
9 Oil return line to crankcase
10 Ventilation line
11 Adjusting screw with special seal ring
2.5.1 Amount of cool air regulated by exhaust thermostat
2.5 Engine cooling Engine Description
