Deutz 914 - 6.1 Lubrication System; 6.1.4 Change bypass-oil filter use

6
6.1 Lubrication System Service and Maintenanceen
6.1.4 Change bypass-oil filter
use

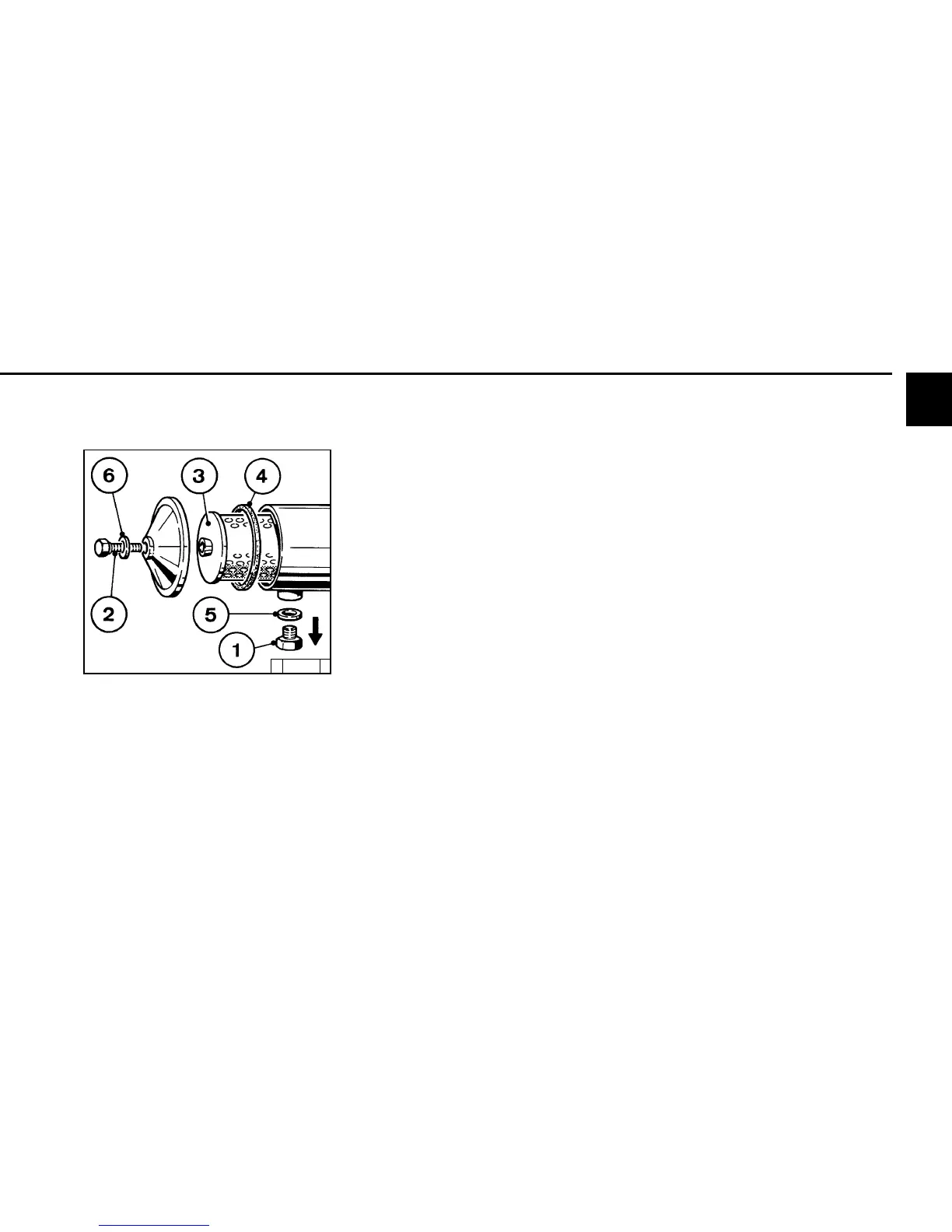

● Remove oil drain screw 1 and let the oil run
out.
● Catch any escaping oil.
● Remove tensioning screw 2. Remove
cover.
● Remove soiled filter 3. Clean filter casing.
● Check cover 4 for leaks, and replace if
necessary.
● Screw in oil drain screw with a new seal
ring 5.
● Insert new filter.
● Screw on cover with seal ring 6.
● During trial, observe oil pressure and check
for leaks.
© 24 511 1
