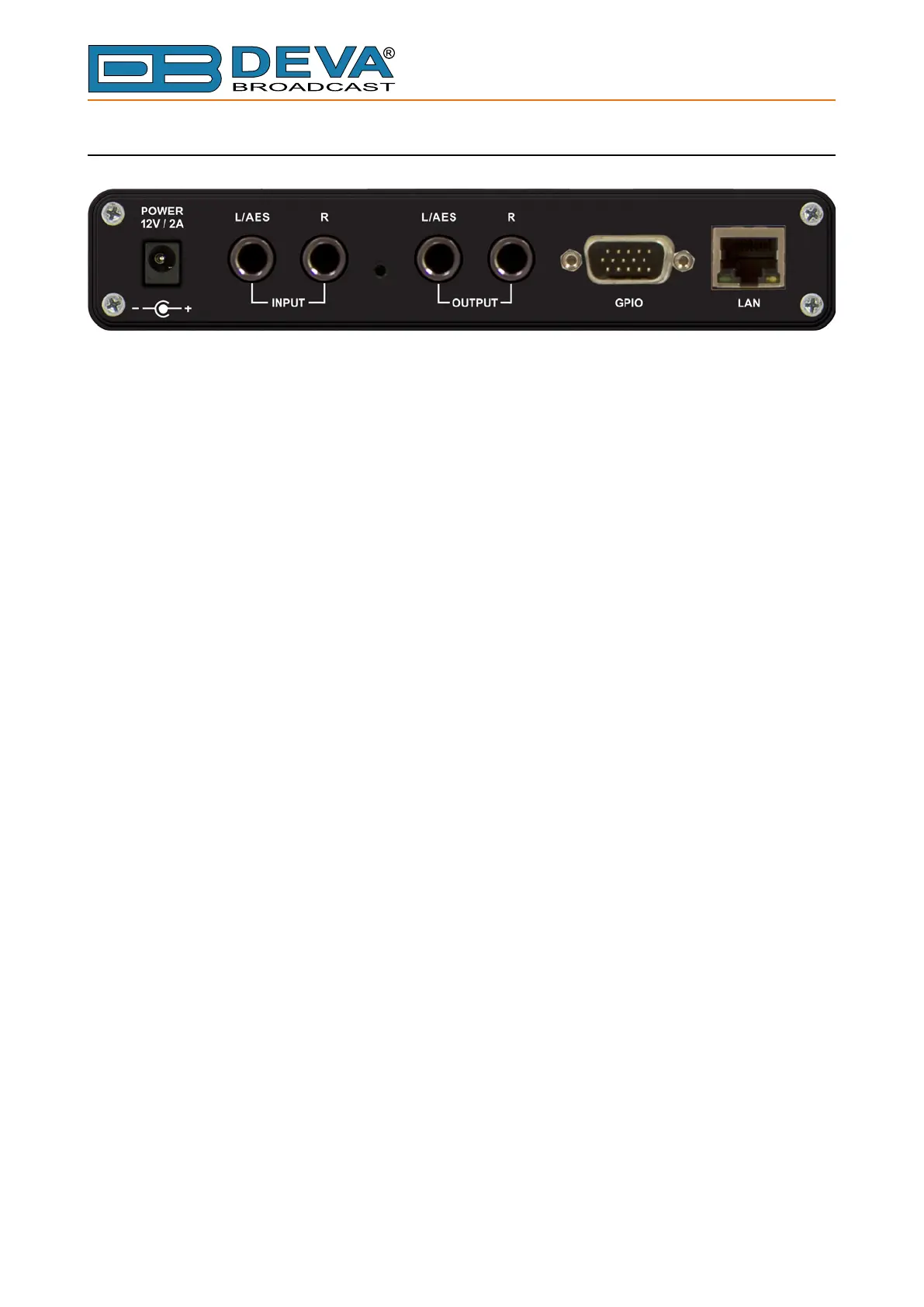

REAR PANEL

1. Power Supply (12 V, 1A);

2. Left Line Analog or AES/EBU Digital Input – 1/4” (6,3mm) Phone jack, female;

3. Right Line Analog Input – 1/4” (6,3mm) Phone jack, female;

4. Factory Defaults Reset button;

5. Left Line Analog or AES/EBU Digital Output – 1/4” (6,3mm) Phone jack, female;

6. Right Line Analog Output – 1/4” (6,3mm) Phone jack, female;

7. GPIO & RS-232 port – male DB15 connector;

8. LAN Port – standard RJ-45 port.
