REAR PANEL GENERAL PURPOSE PORTS

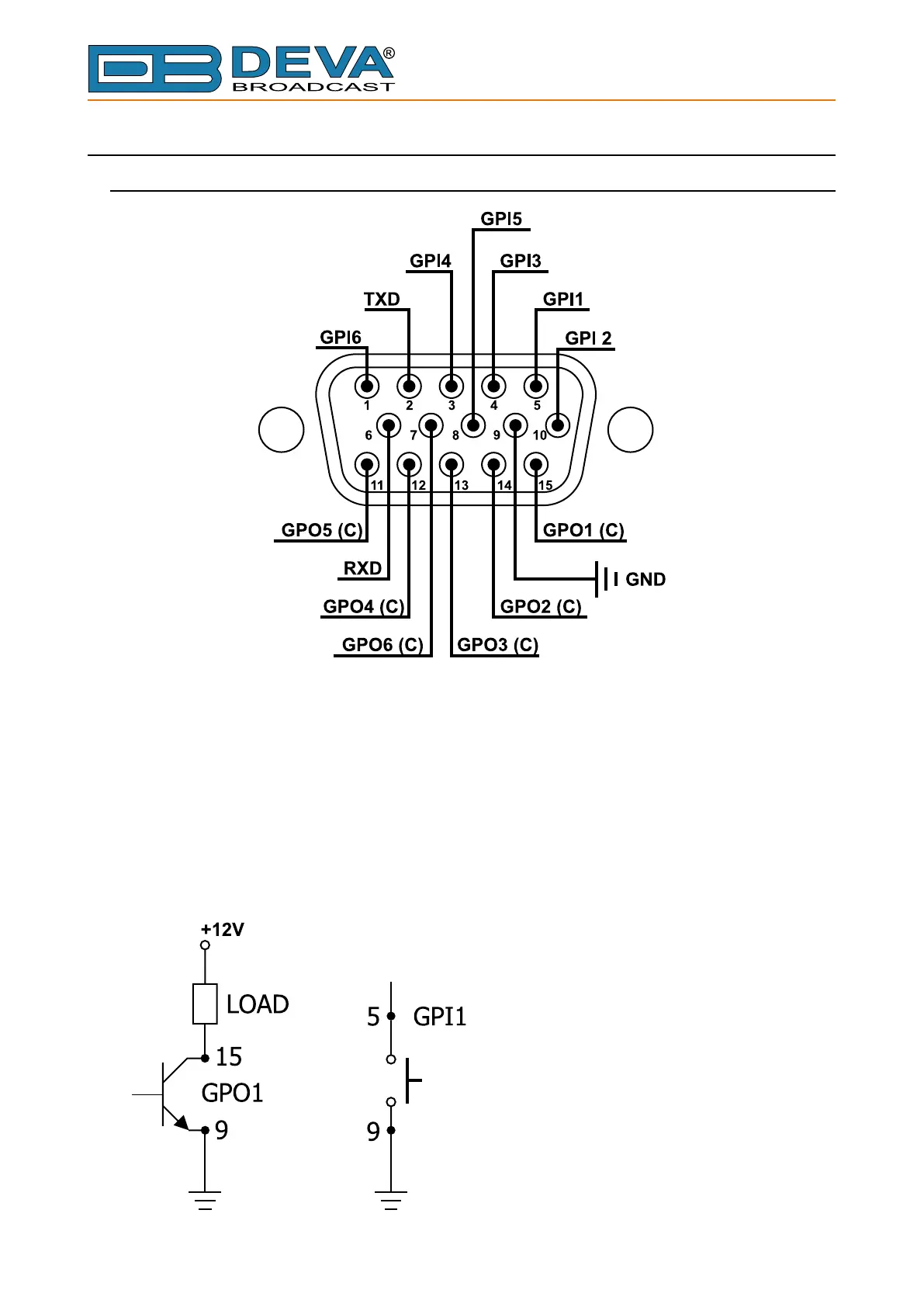

Connector Pinouts
1. GPI 6
2. TXD - RS232 Tx line
3. GPI 4
4. GPI 3
5. GPI 1
6. RXD - RS232 Rx line
7. GPO 6 (open collector)
8. GPI 5
9. GND - Common Ground
10. GPI 2
11. GPO 5 (open collector)
12. GPO 4 (open collector)
13. GPO 3 (open collector)
14. GPO 2 (open collector)
15. GPO 1 (open collector)
