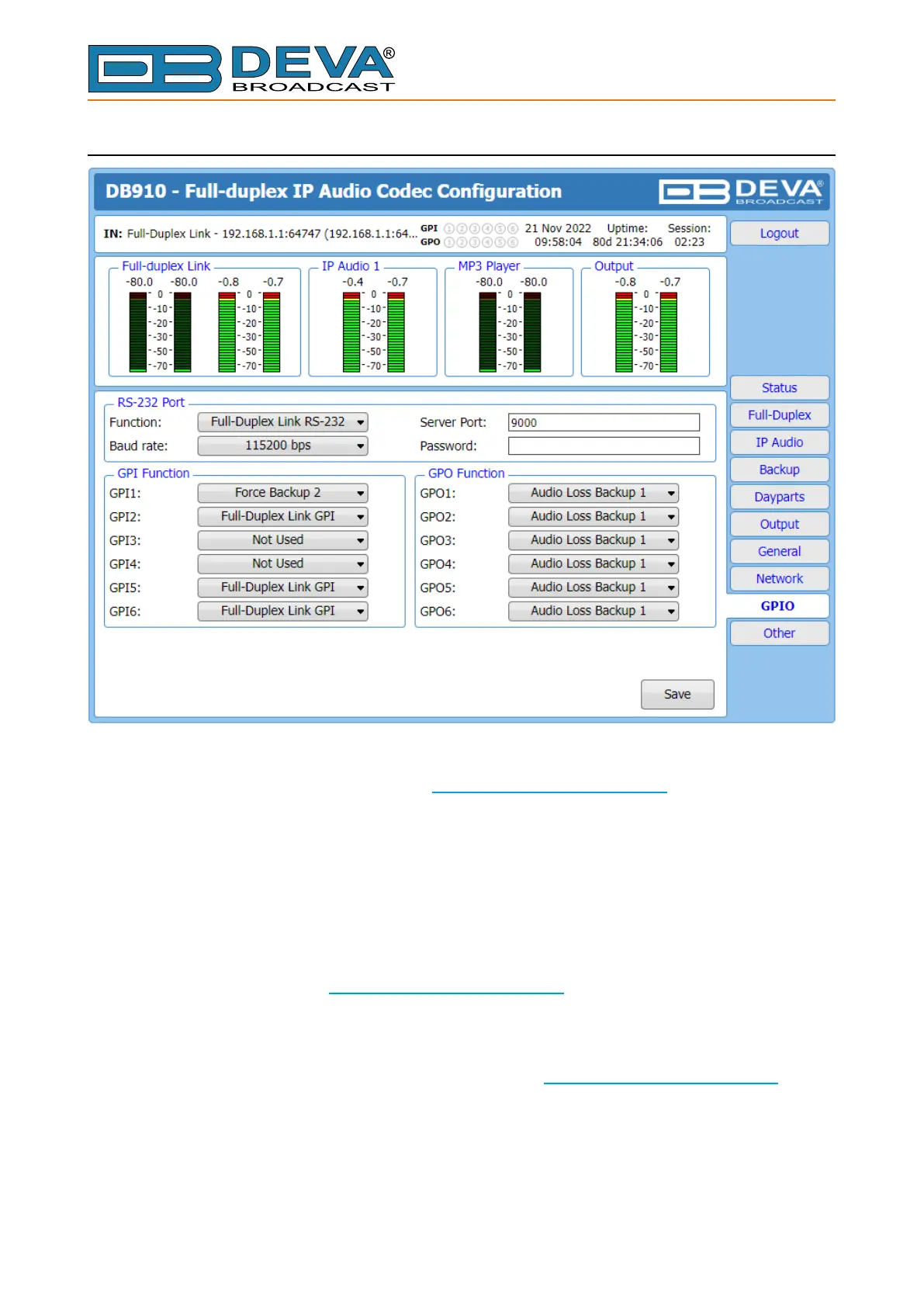

GPIO
RS-232 Port
Function – select RS-232 port function. Full-duplex Link RS-232 option should also be
congured in Full-duplex settings (see “Full-Duplex” on page 22)
Baud rate – RS-232 baud rate
Server Port – RS-232 Redirector server port. Only used when Function is set to RS-232
Redirector Server.
Password – RS-232 Redirector password. Only used when Function is set to RS-232
Redirector Server
GPI Function
GPI1-GPI6 – select GPI function. Force Main/Backup 1/Backup 2 will switch to the selected
audio source while the pin is active. Full-duplex GPI option should also be congured in
Full-duplex settings (see “Full-Duplex” on page 22)
GPO Function
GPO1-GPO6 – select GPO function. Audio loss Main/Backup 1/Backup 2 will set the pin
active while there is an audio loss on the selected audio source. Full-duplex GPO option
should also be congured in Full-duplex settings (see “Full-Duplex” on page 22)
