DeVilbiss 7305 SERIES - Setup Procedures; Internal Filter Cartridge Setup; External Filter Setup; How to Operate Your 7305 Series Suction Unit

1. 43/8” connection tubing
2. Filter cartridge (Do not get wet)
3. Lid
4. Jar
5. Splash guard
6. Patient tubing connector

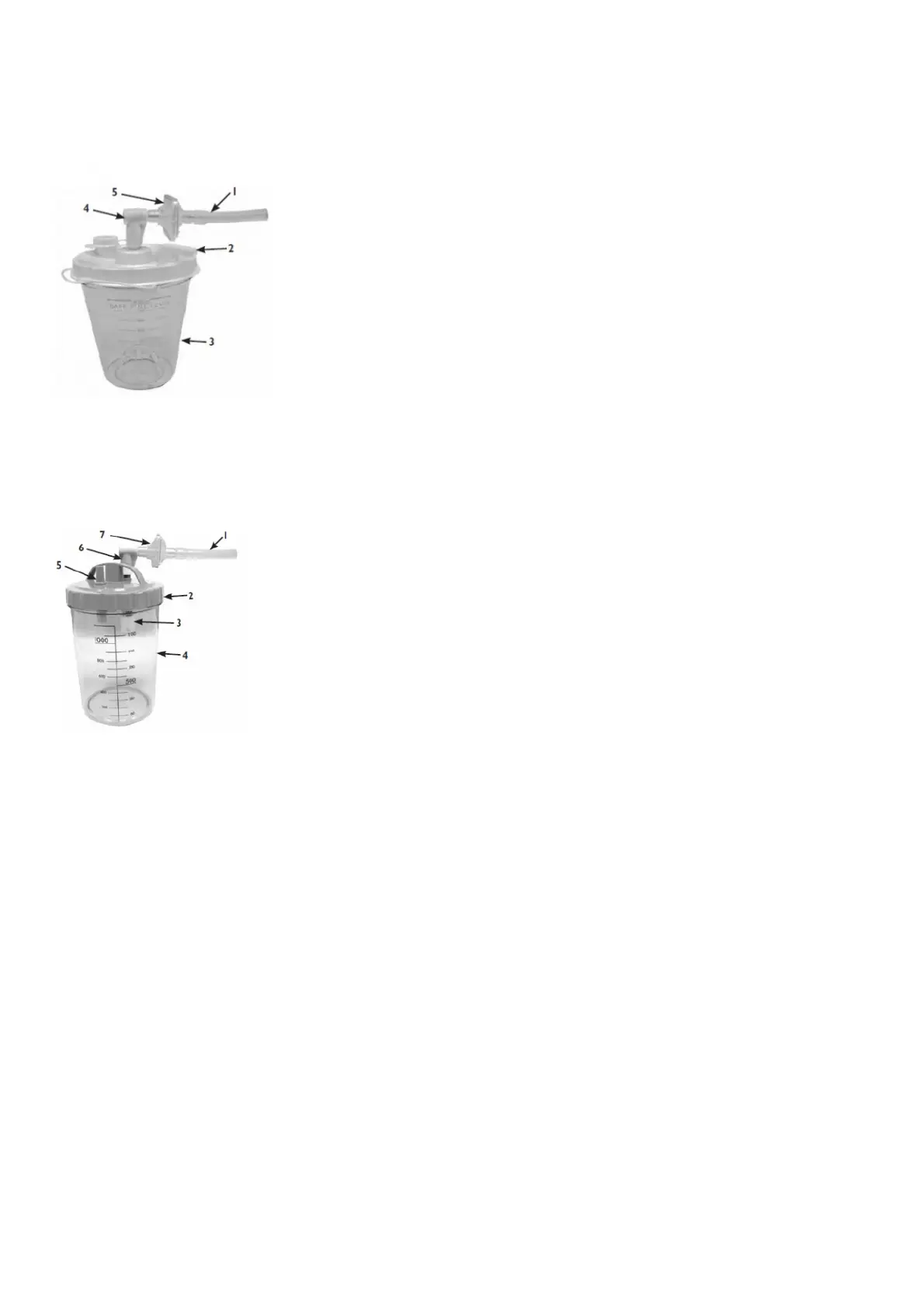

Disposable Container with External Bacteria Filter
1. 33/8” connection tubing
2. Patient tubing connector
3. Jar
4. Connection elbow
5. Bacteria filter
Reusable Container with External Bacteria Filter
1. 43/8” connection tubing
2. Lid with o-ring
3. Overflow valve
4. Jar
5. Patient tubing connector
6. Connection elbow
7. Bacteria filter
Internal Filter Cartridge Set-Up
Disposable Container w/Internal Filter Cartridge & Splash Guard
1. Fully charge battery for 17 hours (7305P series only).
2. Ensure splash guard is securely attached to inside of lid over filter
3. Securely attach lid to
4. Insert container into
5. Attach 43/8” tubing from filter cartridge to tubing connector.
6. The patient tubing should be connected to the container lid at the outlet labeled <Patient>.
7. Please assure that all connections are secure and without leaks before
8. Verify that unit is at desired suction level before beginning patient
External Filter Set-Up
Disposable Container or Reusable Container with External Bacteria Filter
1. Fully charge battery for 17 hours (7305P series only).
2. Securely attach lid to
3. Insert container into
4. Connect either end of the 43/8” reusable tubing or 33/8 ” disposable tubing to the tubing connector then connect the other end to the bacteria Ensure that the clear side of the bacteria
filter is toward elbow and container when installing/re-installing. Do not reverse direction of filter.
5. The bacteria filter should then be connected to the 90˚ elbow connection, and the 90˚ connection should be connected to the top of the container lid where it says <Vacuum>.
6. The patient tubing should be connected to the container lid at the outlet labeled <Patient>.
7. Please assure that all connections are secure and without leaks before
8. Verify that unit is at desired suction level before beginning patient
HOW TO OPERATE YOUR 7305 SERIES DEVILBISS SUCTION UNIT
Before connecting the unit to the AC adapter or 12V DC cord, make sure that the power switch located on the side of the unit is in the “Off” position. Select power source desired.
