DeVilbiss AGMD Series - Page 12

High-performance automatic gun
AGMD
1-1-AGMD-514&515-E-002-1
11

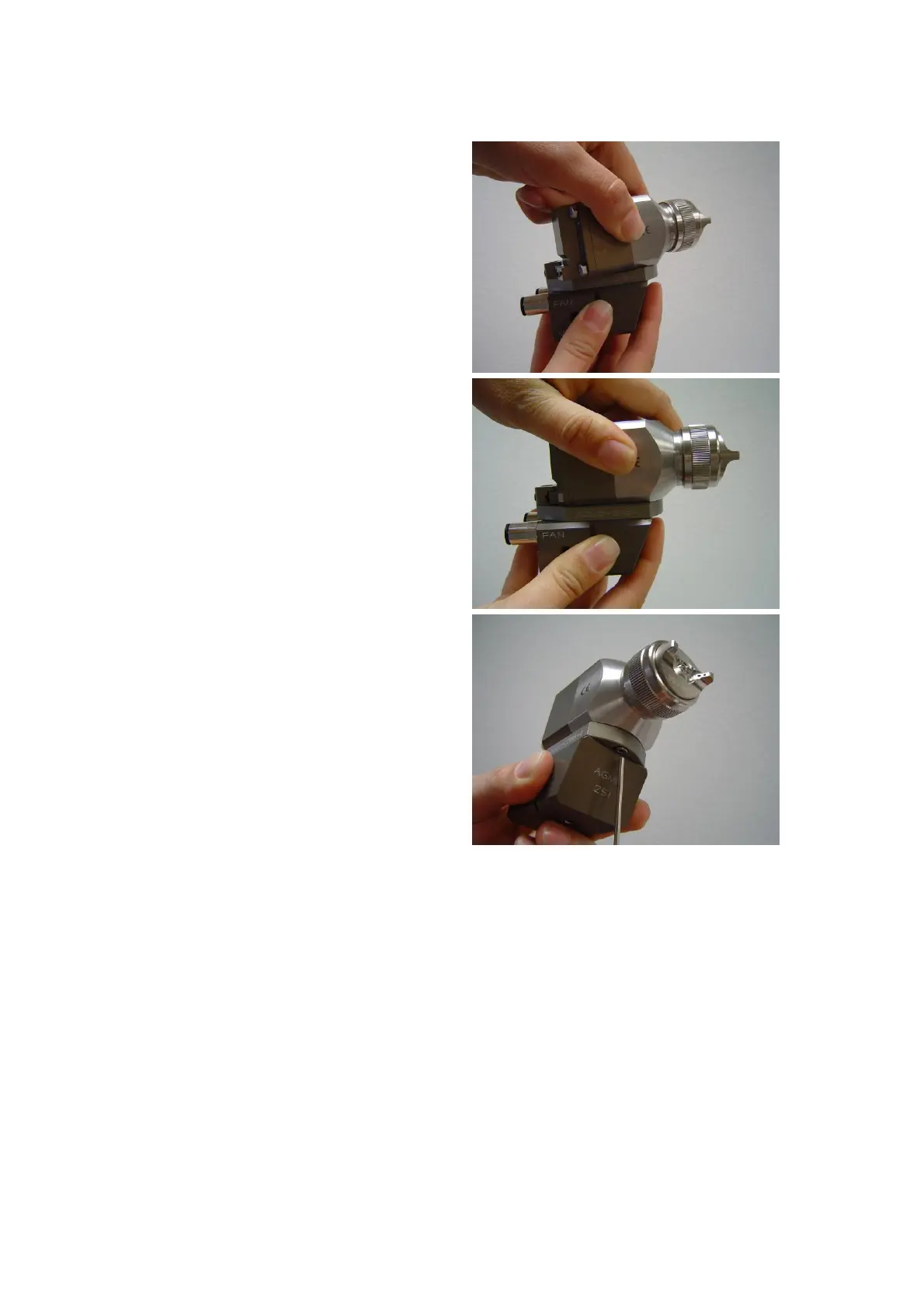

3. Insert the locking device into its position.
4. Turn the high-performance automatic
spray gun AGMD 45° clockwise until it
clicks into the rear locking device.
5. If necessary, bolt the high-performance
automatic spray gun AGMD and
intermediate plate together with a size 2.5
hexagon socket head wrench.
