4.3.2 Intermediate plate AGMD-245-8
Note!
For the intermediate plate AGMD-245-8, the high-performance automatic spray
gun AGMD is fitted with the conical locking device AGMD-244-8.

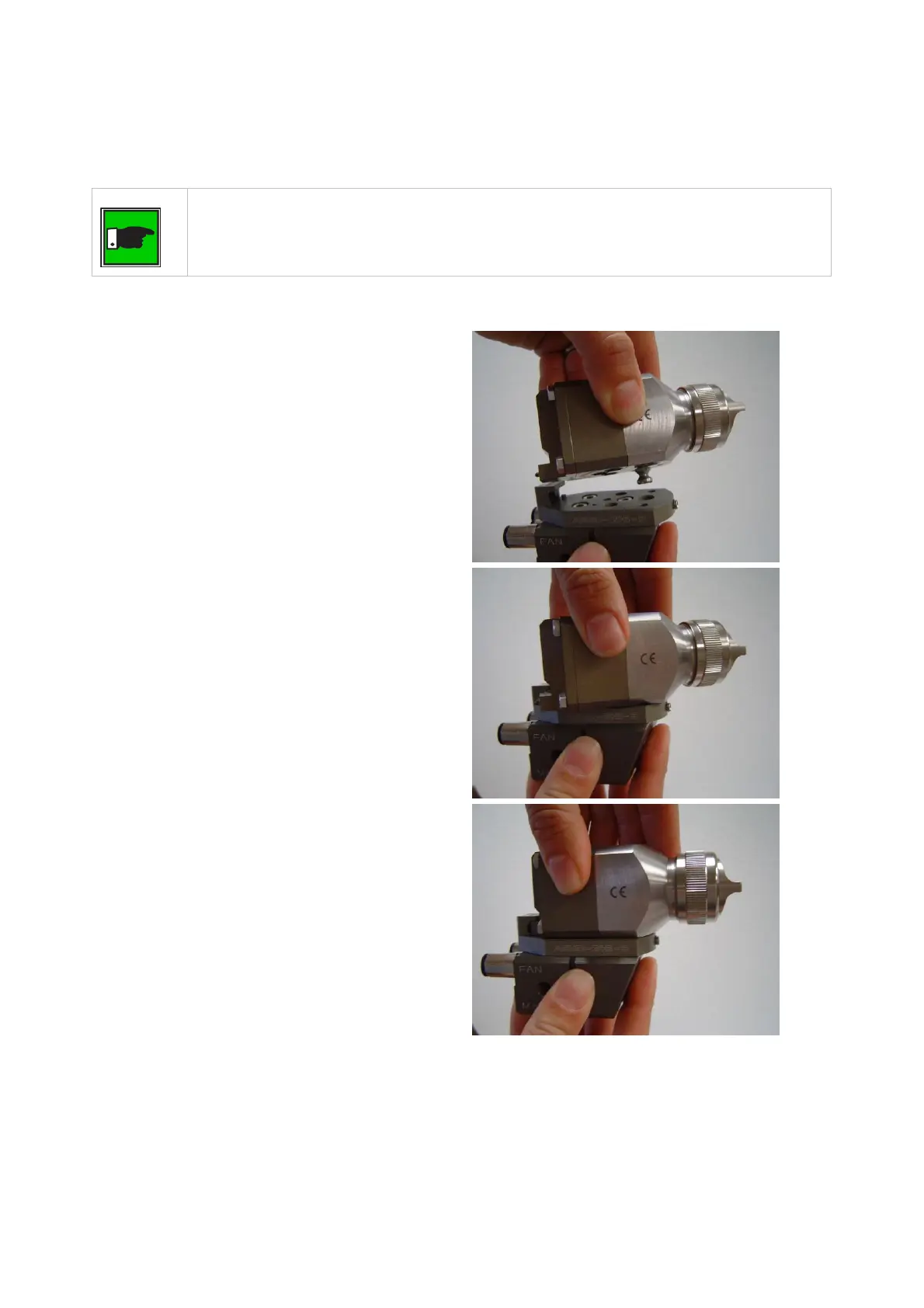

1. Lightly grease the O-rings.
2. Position the high-performance automatic
spray gun AGMD at an angle of 45°
towards the intermediate plate.
3. Insert the conical locking device into its
position.
4. Turn the high-performance automatic
spray gun AGMD 45° clockwise until it
clicks into the rear locking device.
