High-performance automatic gun
1-1-AGMD-514&515-E-002-1
5.6 Assembling the high-performance automatic spray gun AGMD
The item indicated in parentheses corresponds to the individual parts from Chapter 7.1
AGMD-514 (conventional atomisation) and/or Chapter 7.2 AGMD-515 (Trans
Tech and HVLP atomisation).
1. Lay out all components and the required
tools on a clean level surface.

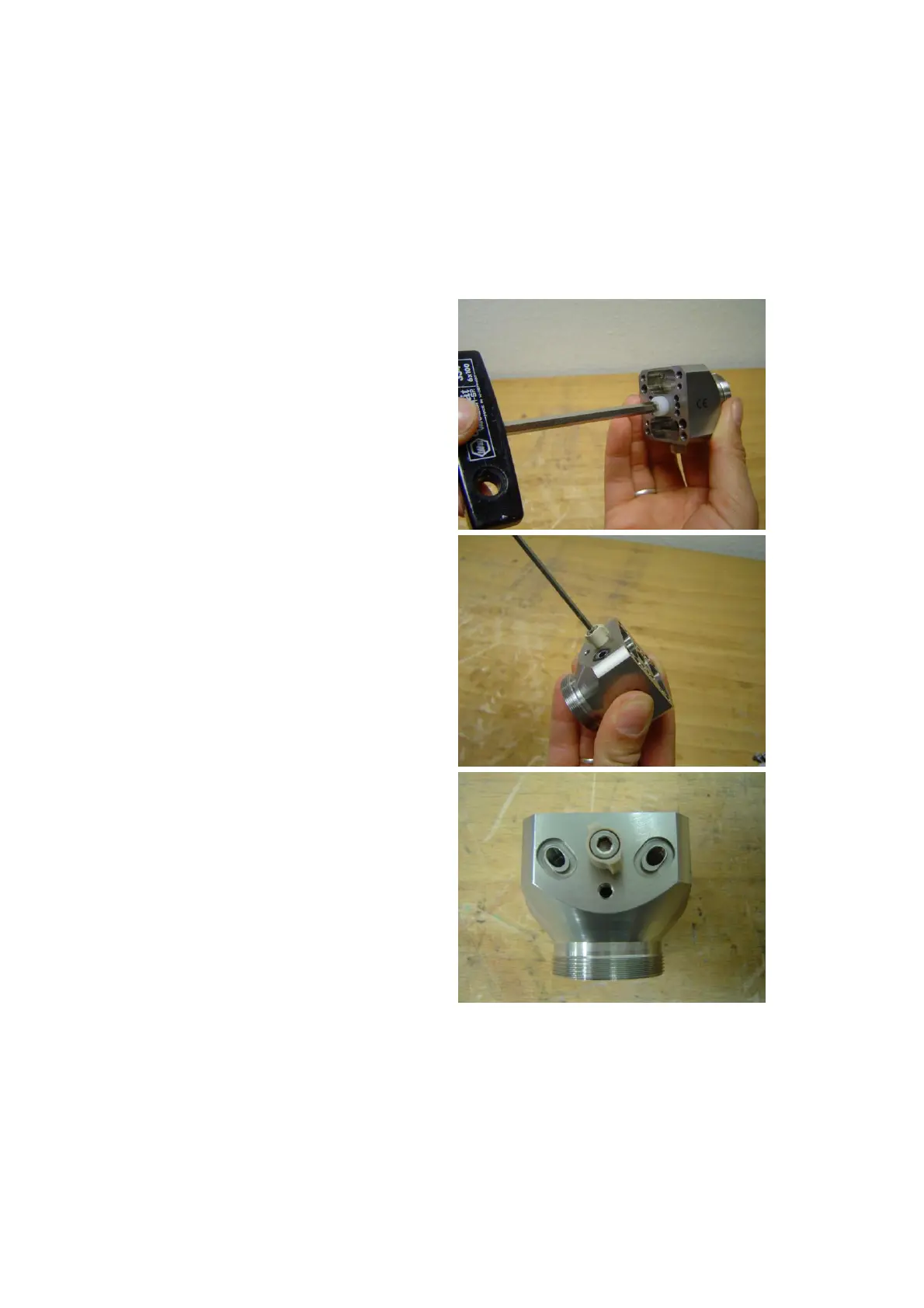

2. Screw the needle set (set 9) into the
head (item 6) with a size 6 hexagon
socket head wrench, to a torque of
0.8 Nm.
3. For use with the intermediate plate
AGMD-245-1, screw the locking device
(item 7) together with the fillister head
screw (item 8).
4. Position the locking device so that the
latches tilt slightly.
Note:
Torque of each locking device 4.5 Nm.
