High-performance automatic gun
AGMD
1-1-AGMD-514&515-E-002-1
20
If the high-performance automatic spray gun
AGMD is screwed onto the intermediate
plate at a later stage, the centring screw
(item 7.1.) can also be attached as an option
for the locking device (item 7 with 8).
If you are using the intermediate plate
AGMD-245-8, screw in locking device
(item 7.2).

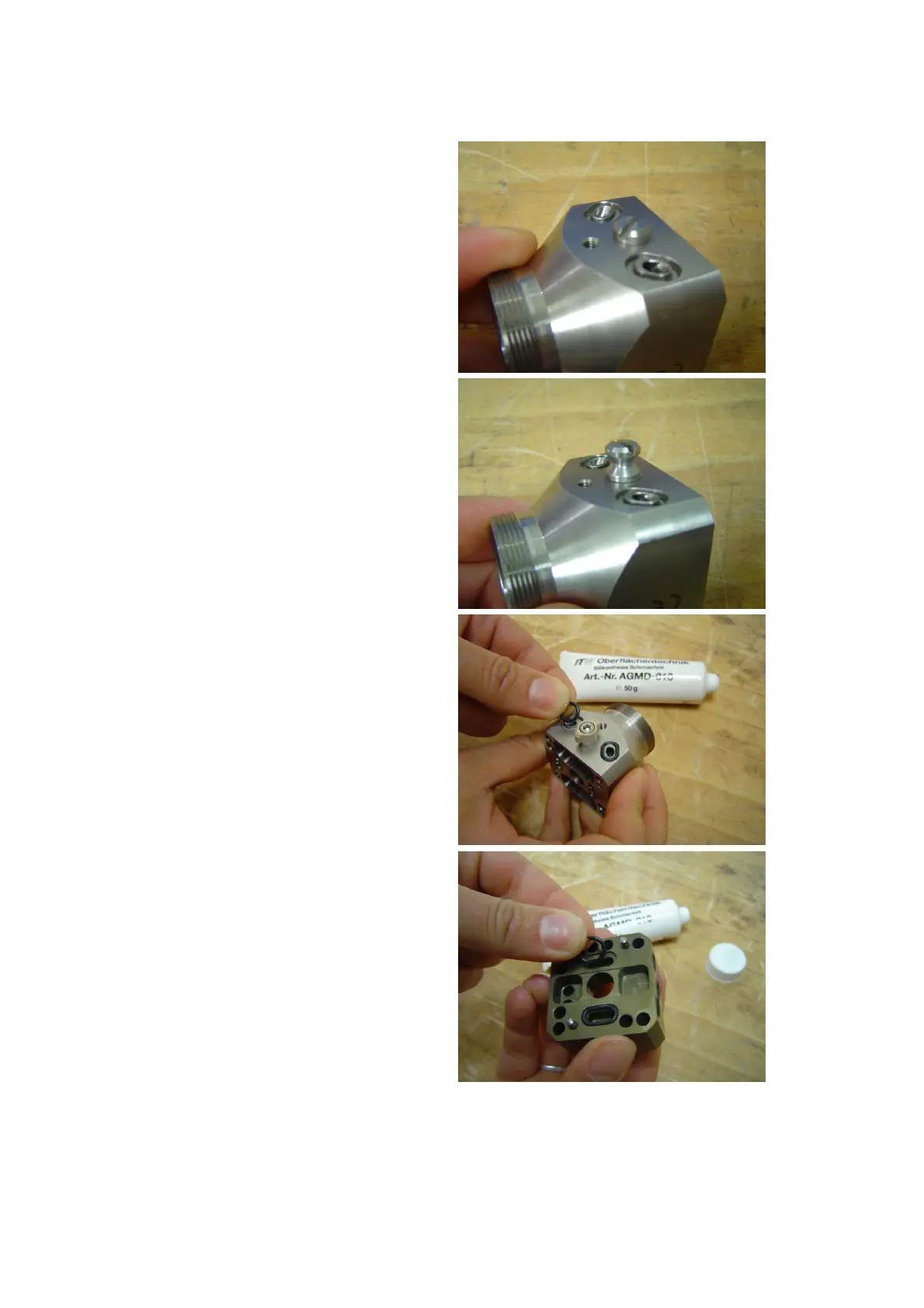

5. Grease two O-rings (item 12) and
position them in the slots of the head
(item 6).
6. Grease two O-rings (item 11) and
position them in the slots of the head
holder (item 13).
