High-performance automatic gun
AGMD
1-1-AGMD-514&515-E-002-1
28
7 Spare parts
Note!
During any maintenance work on the high-performance automatic spray gun
AGMD, replace damaged parts with original spare parts!
7.1 AGMD-514 (conventional atomisation)

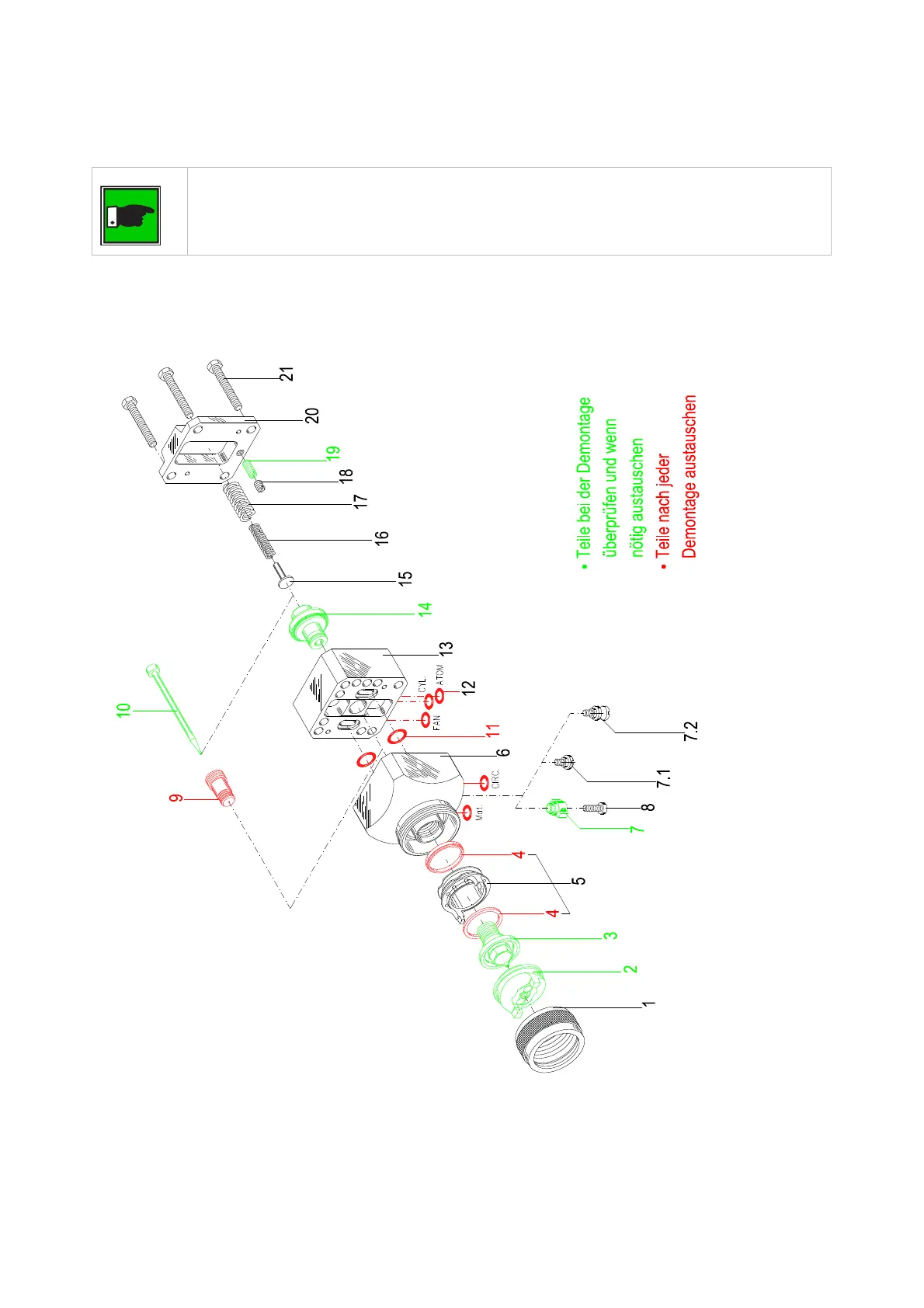

7.1.1 Exploded drawing
