5.3 Removing the high-performance automatic spray gun AGMD
Note!
Only trained personnel are permitted to install and remove parts of the high-
performance automatic spray gun AGMD.
The work should be performed on a clean horizontal work surface.
For the assembly and disassembly of the high-performance automatic spray gun
AGMD, follow the respective parts list and the exploded drawing.
After the removal and replacement of the high-performance automatic spray gun
AGMD on the adaptor, the spraying process can continue, and the defective high-
performance automatic spray gun AGMD can be serviced at a suitable location.
The item indicated in parentheses corresponds to the individual parts from Chapter 7.1
AGMD-514 (conventional atomisation) and/or Chapter 7.2 AGMD-515 (Trans
Tech and HVLP atomisation).

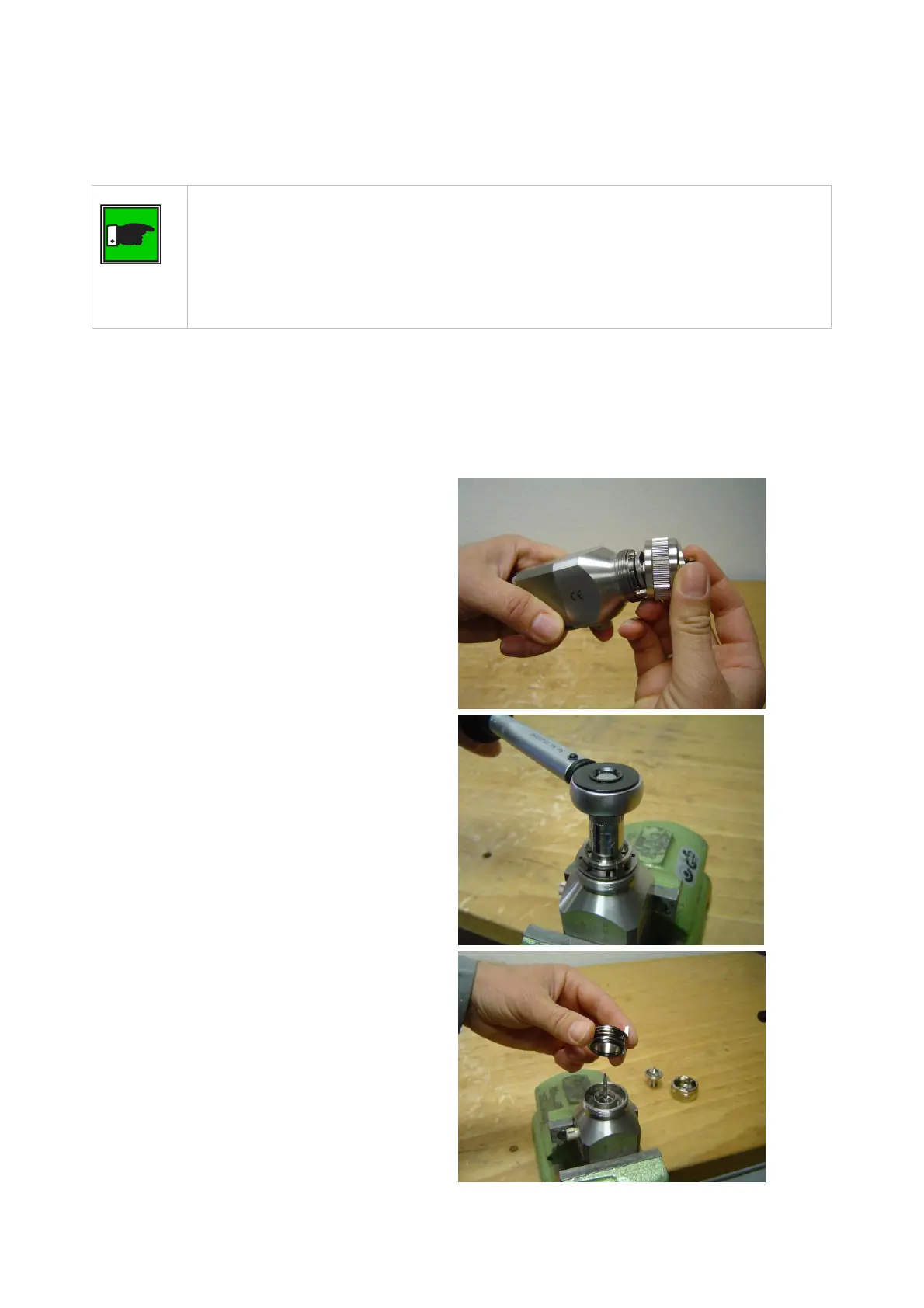

1. Screw on retaining ring (item 1) and
remove air cap (item 2).
2. Loosen and remove the nozzle (item 3)
with socket wrench, size ½“.
3. Remove the air distributing ring (item 5)
and both gaskets (item 4).
