DeVilbiss AGMD Series - Adjusting the Jet Geometry; Distance to Workpiece

High-performance automatic gun
AGMD
1-1-AGMD-514&515-E-002-1
13

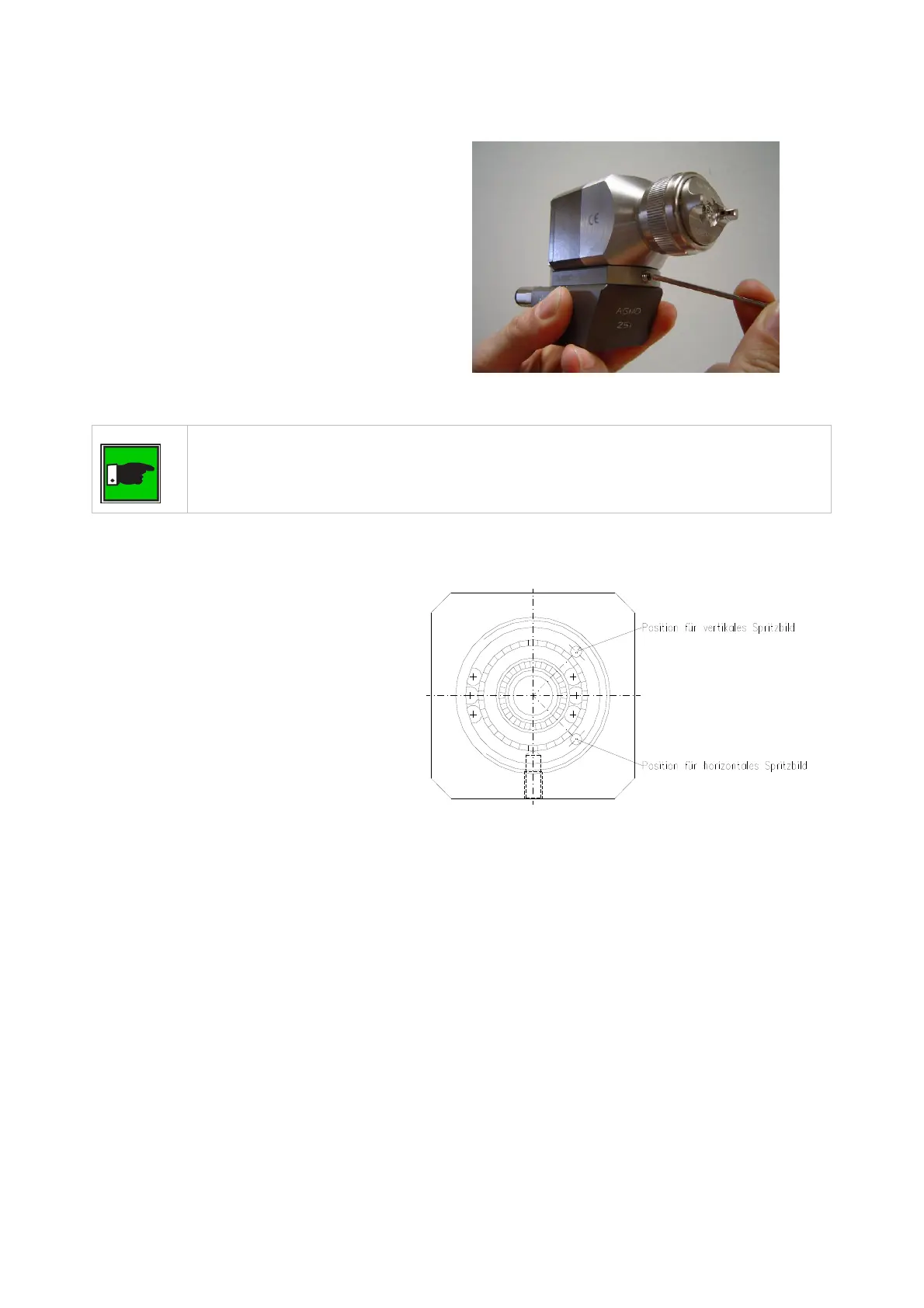

5. Fasten the high-performance automatic
spray gun AGMD and the “pointed tapping
screw” on the intermediate plate with a
size 3 hexagon socket head wrench.
4.4 Adjusting the jet geometry
Note!
The gun has a variable jet geometry to produce a round or flat spray pattern.
You should only work with clean, dry, filtered, oil-free air.
1. Select a suitable air flap.
2. Position the air distributing ring to
produce the desired jet geometry.
3. Make the appropriate setting for the atomiser air.
4. Make the appropriate setting for the horn air.
4.4.1 Distance to work piece
Position the high-performance automatic spray gun AGMD about 15 to 30 cm from the
work piece.
