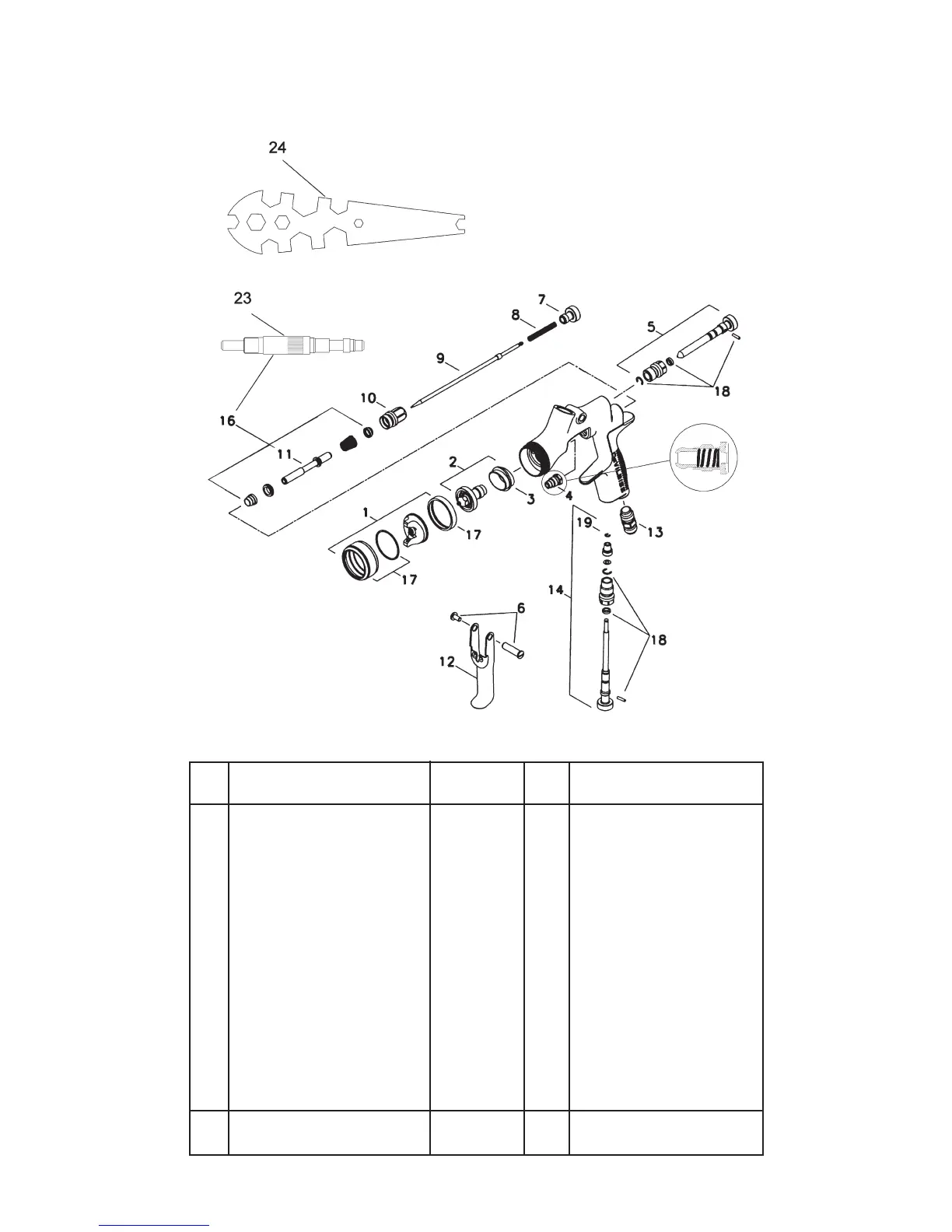

DeVilbiss CVI - Parts List

Page 4 SB-2-658-D
P
atent No. 2372465 (GB)
Ref.
No. Description Part Number Qty. Options
1 Air Cap/Retaining ring SP-100-***-K 1 505, 510 e.g *** = 510
2 Nozzle SP-200S-**-K 1 10, 12, 13, 14 e.g ** =13 =1.3 mm
+ 3 Separator SP-626-K5 5
+4 Packing GTI-445-K2 2
5 Spreader Valve SP-403-K 1
6 Stud and Screw GTI-408-K5 5
7 Needle Adjusting Screw SP-614-K 1
+8 Spring SP-622-K5 1
9 Needle SP-300S-**-K 1 10, 12, 13, 14 e.g ** =13 =1.3 mm
10 Airvalve housing & seal SP-612-K 1
11 Spindle 1
12 Trigger SP-617-K 1
13 Connector SP-611-K 1
14 Airflow Valve SP-402-K 1
16 Air Valve Service Kit SPK-101-K 1
17 Retaining Ring and Seals SPK-102-K 1
+18 Clip, Seal and Pin Kit GTI-428-K5 5
23 Air Valve assembly Tool 1
24 Spanner SPN-5-K 1
Spraygun Service Kit SPK-402-K 1
(parts included marked + )
PARTS LIST
