MACHINE SETUP
To set up the machine follow this procedure:
1 Familiarize yourself with the machine. Read all danger, warning,
and caution statements as well as the Operator's Manual. If
operator is unable to read English, have the manual explained
before operating.
2 Install handle and fasten latches. (Figure 6)
3 Insert control link into notch and slide collar to pin.
Raise sanding drum with control lever. (Figure 5 & 6)
4 Install dust tube.
5 Connect the handle pigtail to the motor cord. Align ground
pin, insert and twist. (Figure 7)
6 To install abrasive on sanding drum equipped with paper
clamp: loosen screws to paper clamp with a coin. Do not
remove screws or clamp from the sanding drum. Insert one
edge of abrasive under paper clamp. Rotate sanding drum to
wrap abrasive around drum. Insert other edge of abrasive
under paper clamp. Center abrasive and take up any slack in
the abrasive. Tighten screws on paper clamp.
Close drum cover. See Figure 8.
To install abrasive on sanding drum equipped for Sleeve abrasive: slide
abrasive over drum, center abrasive, and close drum cover.
ENGLISH

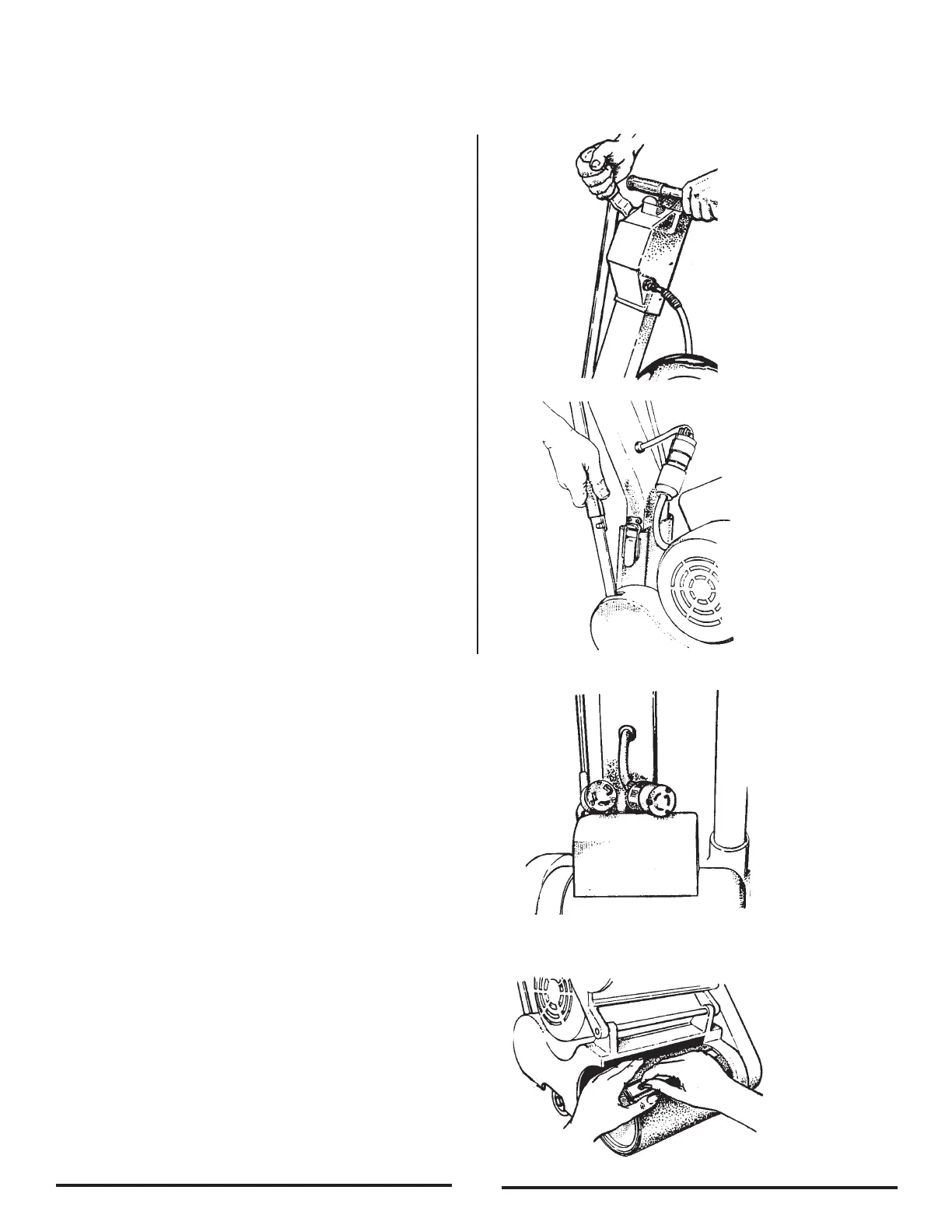

Figure 5
