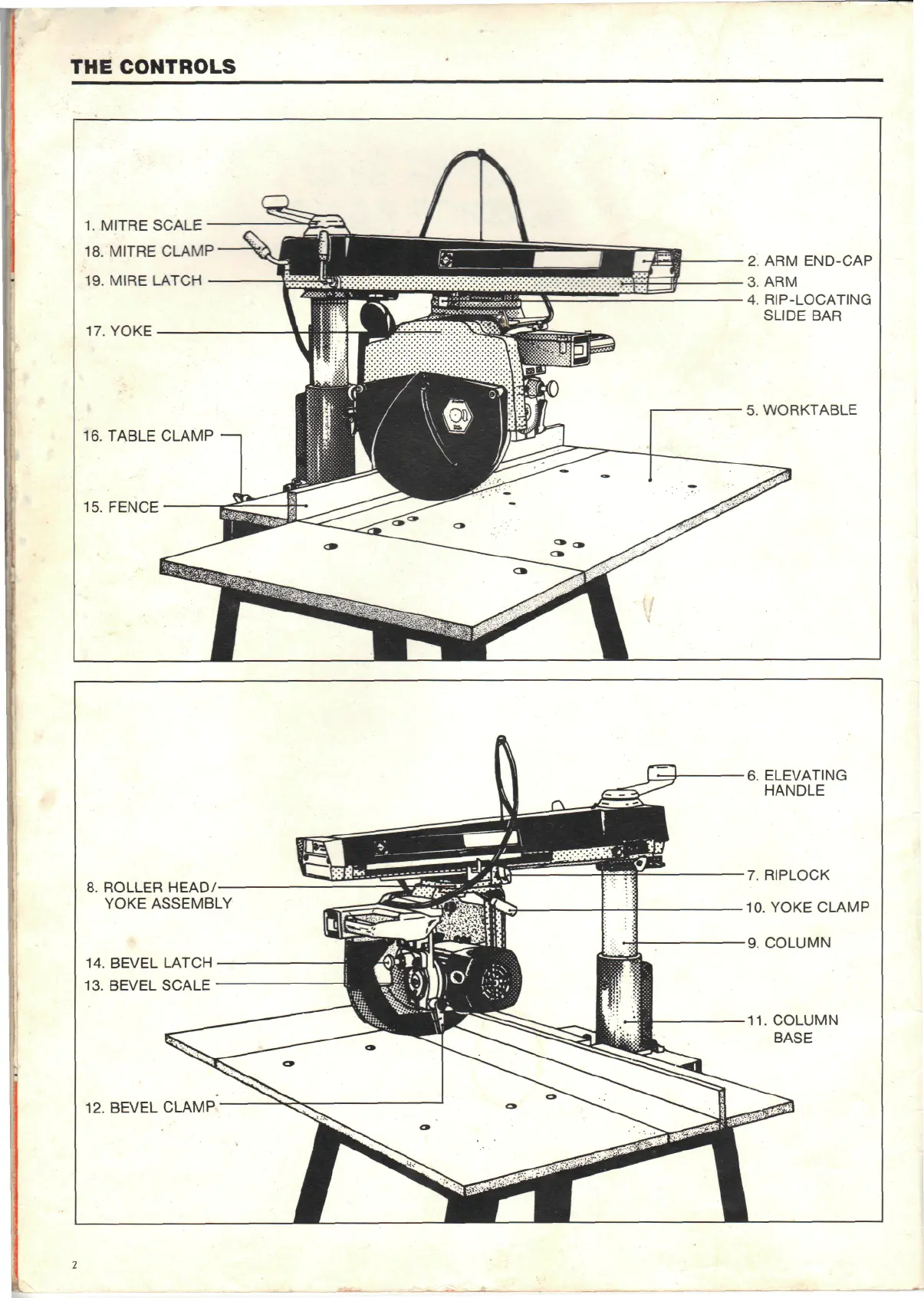

THE CONTROLS
1. MITRE SCALE
18. MITRE CLAMP
19. MIRE LATCH
17. YOKE
16. TABLE CLAMP —i
15. FENCE
2. ARM END-CAP
3. ARM
4. RIP-LOCATING
SLIDE BAR
5. WORKTABLE
8. ROLLER HEAD/
YOKE ASSEMBLY
14. BEVEL LATCH -
13. BEVEL SCALE -
12. BEVEL CLAMP
6. ELEVATING
HANDLE
7. RIPLOCK
10. YOKE CLAMP
9. COLUMN
11. COLUMN
BASE
