WARNING: STABILITY HAZARD. If the tool’s mounting holes do
not line up with the slots in the mounting rails, mount the miter saw
or planer to a piece of 3/4 inch (19 mm) plywood (See Figure15 for
dimensions). The plywood must be a minimum of 4 inch (101.6mm)
wider than the tool base being mounted and a minimum depth of
16inch (406.4mm). Plywood must be at least as deep as the tool
base being mounted. Drill 3/8inch (9.5 mm) holes near both ends of
the plywood to align with the slots in the mounting rails as described in
Attaching the Tool. Other hardware (not supplied) may be necessary
under these circumstances.
WARNING: STABILITY HAZARD. All purchased hardware must
be a minimum of Grade2. Hardware should be 1-1/4 inch (31.8mm)
longer than the thickness of the tool base you are assembling.
NOTICE: To prevent binding and/or inaccuracy, ensure the plywood
is not warped or uneven. If binding and/or inaccuracy occurs, replace
the plywood with a non-warped, even piece of plywood.
PRODUCT STABILITY TEST (FIG. 16–17)
The rolling miter saw/planer stand is designed to be used in
conjunction with a wide variety of miter saws, compound miter saws,
sliding compound miter saws and planers.
WARNING: Any tool used with this stand must be properly
positioned and secured to ensure stability and to prevent inadvertent
tipping.
WARNING: Planers MUST be mounted in the orientation shown
in Figure 16.
WIDTH OF SAW + 4" (101.6mm)
1" (25.5mm)
1" (25.5mm)
3/8" (9.5mm)
DIAMETER
HOLES, ALL 4
CORNERS
2" (50.8mm)
MINIMUM BOTH
SIDES
15"
(381mm)
BOTH
SIDES
MINIMUM OF
16" (406.4mm)
MUST BE AT
LEAST AS
DEEP AS THE
SAW BEING
MOUNTING
1" (25.5mm)
1" (25.5mm)
MOUNT MITER
SAW IN SHADED
AREA

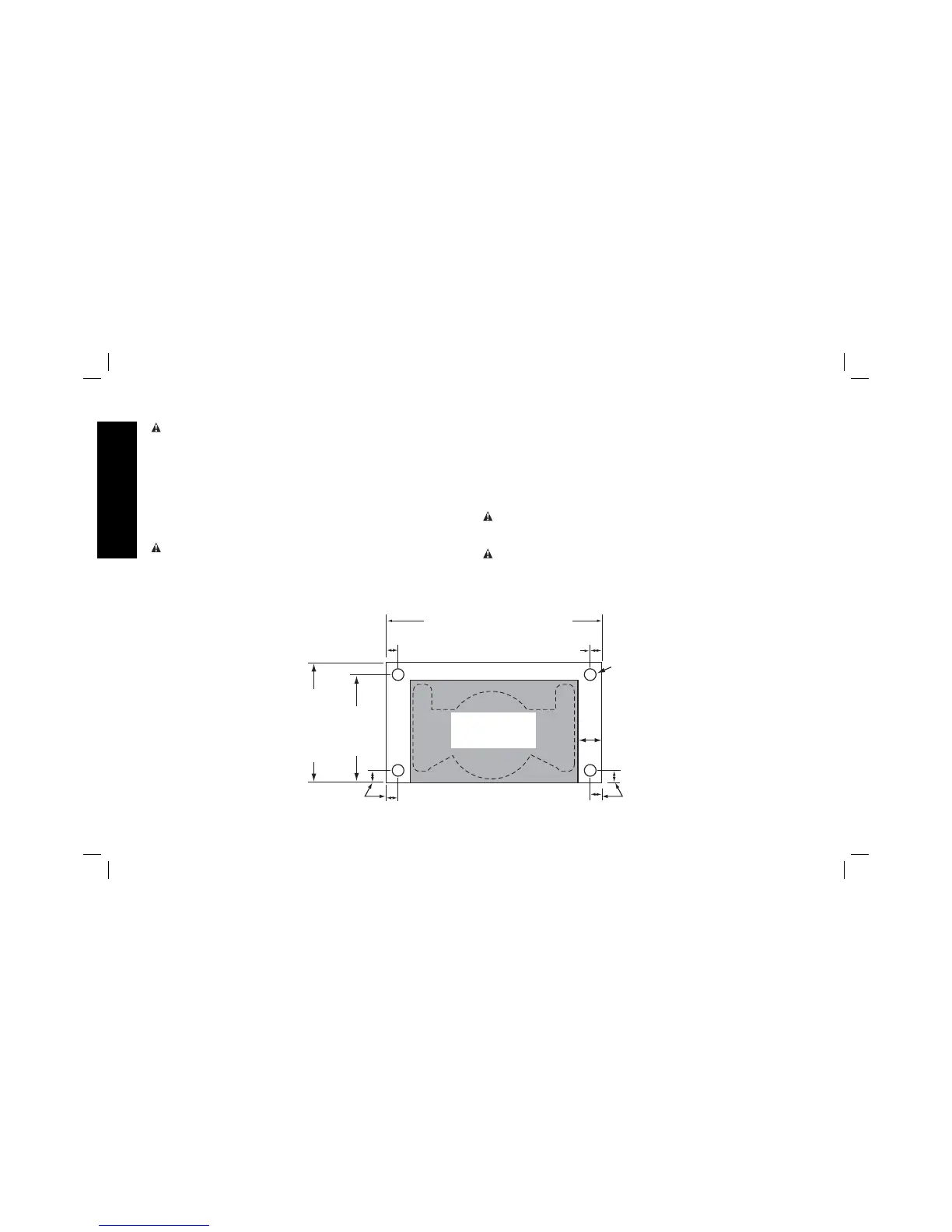

FIG. 15

DeWalt DWX726 Specifications

General

Type	Miter Saw Stand
Adjustable Mounting Rails	Yes
Foldable	Yes
Wheel Kit Compatible	Yes
Adjustable Length	Yes
Brand	DeWalt
Weight Capacity	300 lb
Color	Yellow
