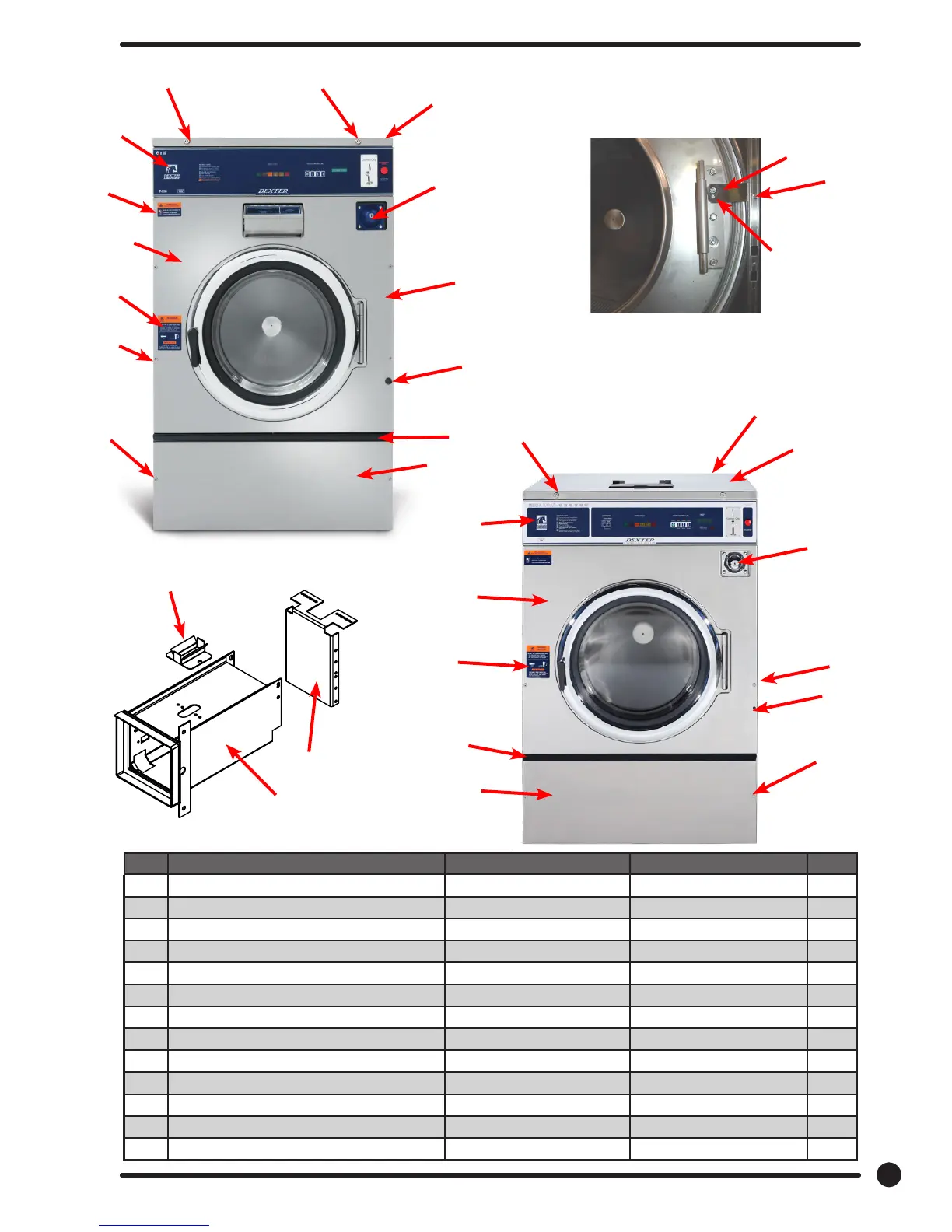

Dexter Laundry T900 - Page 101

Key Description T900 T1200 QTY
17 Handle (bumper guard) 9244-086-003 9244-086-003 1
* Rivet Blind 3/16” Alum 9491-009-003 9491-009-003 4
* Screw 9545-045-010 9545-045-010 4
18 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 2
19 Washer, Finish 8641-585-001 8641-585-001 2
* Nut, Spring 8640-399-008 8640-399-008 2
20 Coin Vault, Black 9942-040-002 9942-040-002 1
21 Back-Coin Vault 9050-060-001 9050-060-001 1
* Screw, 10B x 1/2 9545-008-026 9545-008-026 8
22 Chute, Coin 9119-028-001 9119-028-001 1
* Screw, Coin Schute 9545-008-001 9545-008-001 2
23 Coin Box assy, Large Blue 9807-099-002 9807-099-002 1
23 Coin Box assy, Large Black 9807-099-004 9807-099-004 1
20
22
18, 19
17
21
23
17
18, 19
23
101
