Dexter Laundry WCAD Series - Page 39

CN (No coin Mech) 80lb

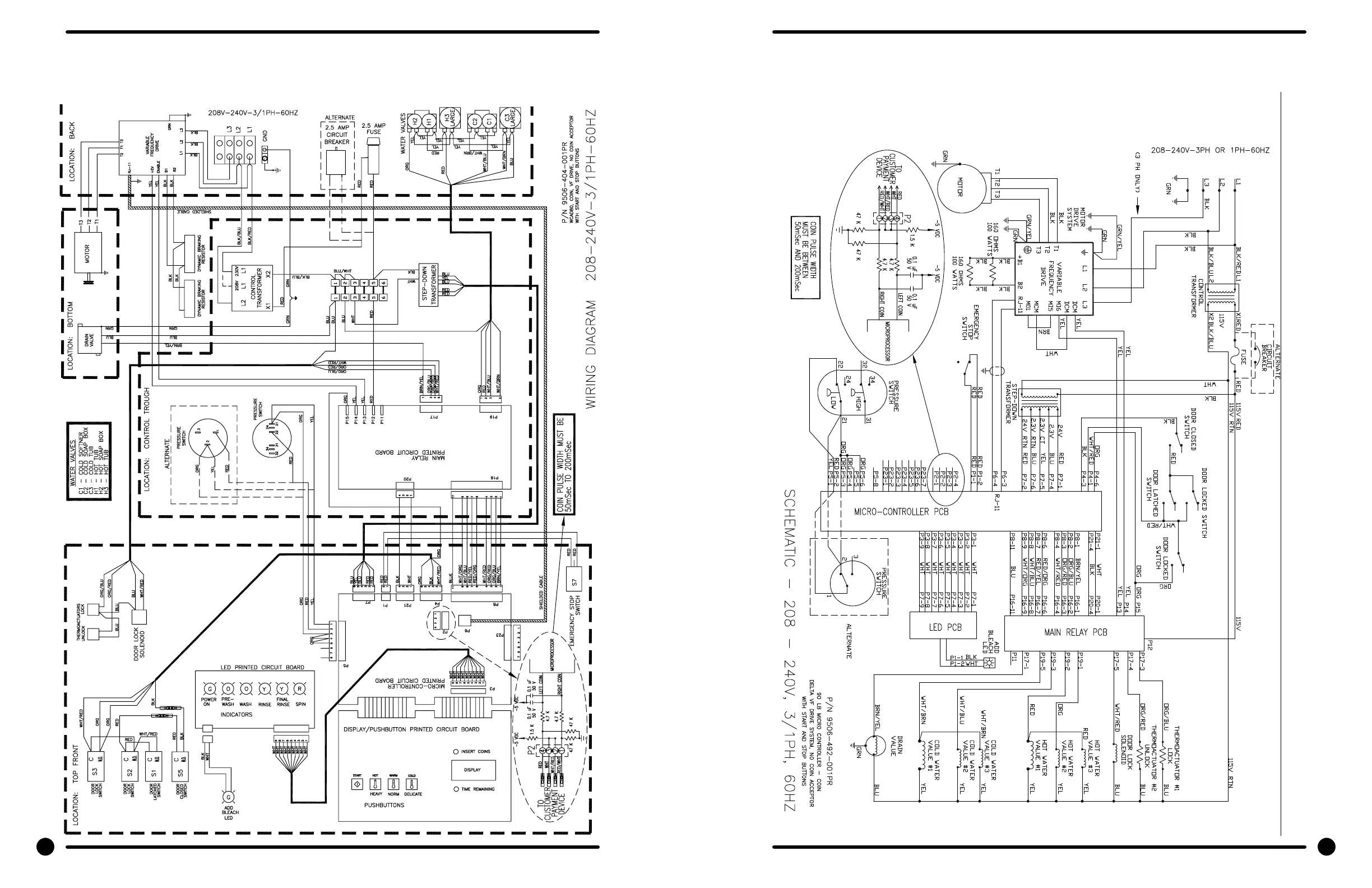

WCAD80KCB-CN Diagram
CN (No coin Mech) 90lb Express
WCAD90KCB-CNSZ Schematic
