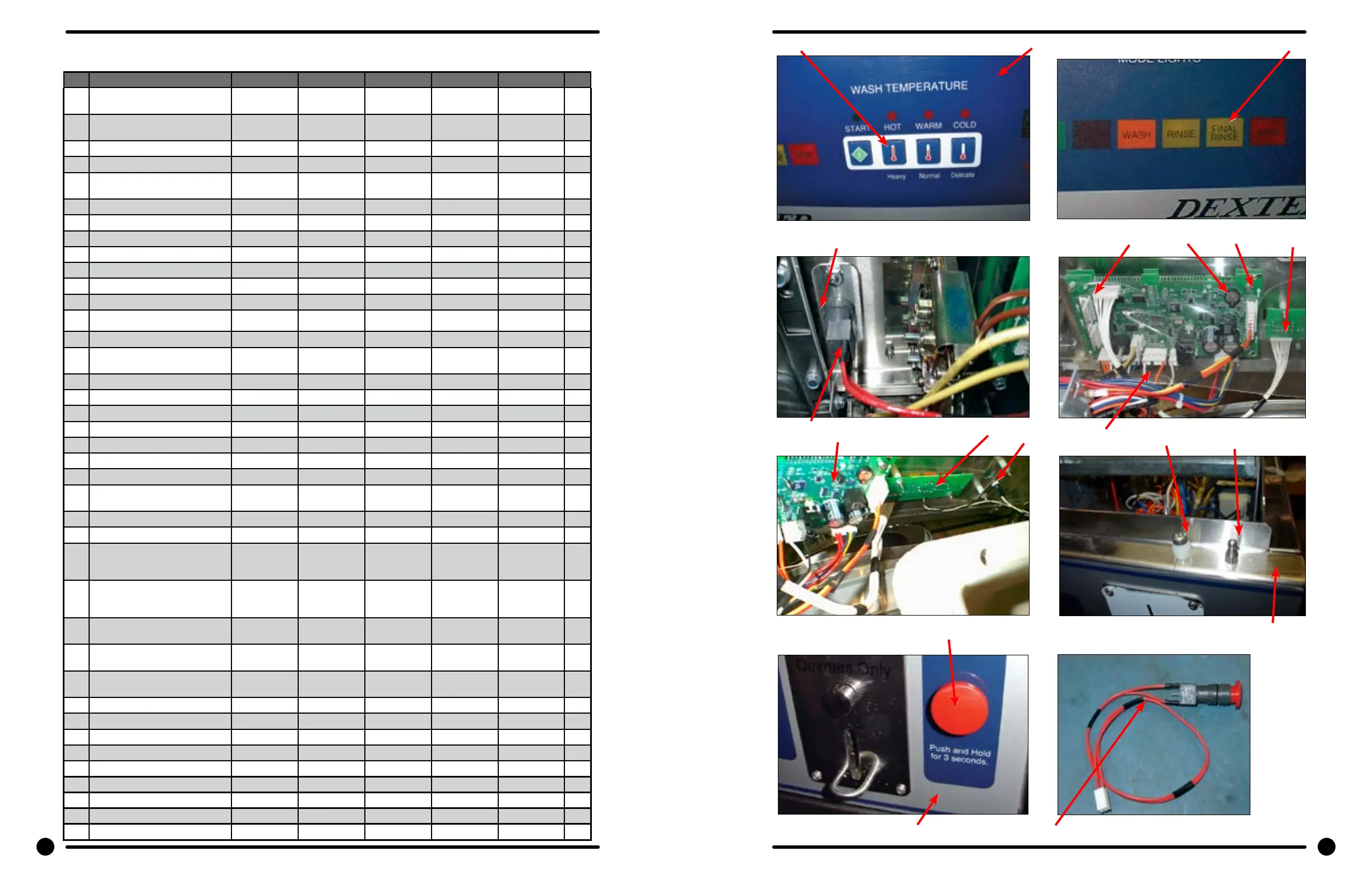

Control Panel Part # by Model
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Panel Control Assembly(panel
only) Before Serial #530673
9989-500-001 9989-500-001 9989-500-001 1
1 Panel Control Assembly(panel
only) After Serial #530673
9989-525-001 9989-525-001 9989-525-001 9989-525-001 9989-529-001 1
1a Retainer, Coin Accecptor 9486-149-001 9486-149-001 9486-149-001 9486-149-001 9486-149-001 2
1b Screw, Torx T-10 4Bx5/8ss 9545-053-002 9545-053-002 9545-053-002 9545-053-002 9545-053-002 4
* Screw, Hxwshrhdundct #10Bx
1/2”
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
2 Post Locator Top 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
* Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-412-005 2
3 Locator Panel 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
* Screw FillHDCR 10Bx1/2” Guide 9545-008-025 9545-008-025 9545-008-025 9545-008-025 9545-008-023 2
* Spacer Pushbutton (Micro) 9538-178-001 9538-178-001 9538-178-001 9538-178-001 9538-178-001 1
* Retainer Pushbutton (Micro) 9486-150-001 9486-150-001 9486-150-001 9486-150-001 9486-150-001 1
* Nut Hexelasticstop #4-40 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 2
10 Pushbutton Control (coin), Blue 9035-062-001 9035-062-001 9035-062-001 9035-062-001 9035-062-001 1
10 Pushbutton Control (coin), Black 9035-062-002 9035-062-002 9035-062-002 9035-062-002 9035-062-002 1
7 PCB assembly Control /Display
STOP
9473-009-005 9473-009-005 9473-009-005 9473-009-005 9473-009-005 1
11 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157- 018 9538-157-018 9538-157-018 5
11 Nut Elasticstop #6-32 8640-411-002 8640-411-002 8640-411-002 8640-411-002 8640-411-002 5
12 Harness LEDPCB 9627-797-001 9627-797-001 9627-797-001 9627-797-001 9627-797-001 1
8 Harness Doorlock, Switches 9627-791-00 4 9627-791-005 9627-791- 005 9627-791-005 9627-791-006 1
16 PCB assembly Mode lights 9473-005-001 9473-005-001 9473-005-001 9473-005-001 9473-005-001 1
* Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157- 018 9538-157-018 9538-157-018 2
* Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
19 Light, LED,ADD BLEACH As-
sembly
9794-001-001 9794-001-001 9794-001-001 9794-001-001 9794-001-001 1
* Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157- 018 9538-157-018 9538-157-018 2
* Nut Hexeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
9 Nameplate,Control Panel
(one piece) Blue Before Serial
#535659
9412-162-001 9412-141-001 9412-142-001 1
Nameplate,Control Panel (one
piece) Black Before Serial
#535659
9412-165-001 9412-173- 001 1
Nameplate,Control Panel (one
piece) Blue After Serial #535659
9412-162-001 9412-198-001 9412-191-001 9412-193-001 1
Nameplate,Control Panel (one
piece) Black After Serial #535659
9412-172-001 9412-199-001 9412-192-001 9412-194-001 1
22 Switch Assembly Emergency
Stop (includes wire harness)
9732-223-001 9732-223-001 9732-223-001 9732-223-001 9732-223-001 1
* Spacer Plastic #8x5/16 E-Stop 9538-157-020 9538-157- 020 9538-157-020 9538-157-020 9538-157- 020 2
* Nut HexKep #8-32 E-Stop 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 2
26 Battery 8612-001-001 8612-001-001 8612-001-001 8612-001-001 8612-001-001 1
* Plastic Shield over main PCB 9550-184-001 9550-184-001 9550-184-001 9550-184-001 9550-184-001 1
27 Plate to mount e-stop button 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-001 1
* Bracket Retainer, Front Panel 9029-191-001 9029-191-001 9029-191-001 9021-191-001 1
* Bracket Retainer, Front Panel 9029-191- 001 2
* Screw-#10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 3
* Screw-#10Bx1/2 9545-008-026 6
110 111
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
110 111
22
22
16
19
22
8
3 2
1
9
7
10 16
12 26
11
9
16
27
