Cabinet and Front Panel Group Part # by Model
Front Soap Dish
25
26
7
19 & 11
16
18
15
10 & (11
under)
9
15
2
3&4
12
16
18
23
8
1
17
5
24
20
15
21
21
14
22
13
19
22
Tub Front Here
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Dispenser Soap 9122-005-004 9122-005-004 1
* Nut, Spring ss 8640-399-007 8640-399-007 4
* Flow restictors 9475-002-002 9475-002-002
* Flow restictors Optional (Smaller) 9475-002-003 9475-002-003
2 Door, Dispenser 9108-095-005 9108-095-005 1
3 Pin, Plain 9451-191-001 9451-191-001 2
4 Post, Door Mounting 9467-025-001 9467-025-001 2
5 Screw, SS Dispenser 9545-045-002 9545-045-002 4
* Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 8641-581-008 8641-581-008 1
8 Screw, Locator 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 1
9 Plastic Sleeve, Locator 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 1
10 Locator Post 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
11 Nut, Locator Post 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
* Catch, Top Panel 9086-017-001 9086-017-001 9086-017-001 9086-017-001 9086-017-001 2
12 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 1
12 Lock, Top (w/Key) 8650-012-003 8650-012-003 2
* Gasket Despinsor 9206-416-001 9206-416-001
* Hose, Despinsor to tub 9242-450-001 9242-450-001 1
* Clamp 8654 -117-008 8654-117-0 08 2
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
13 Bolt,#10-32 x 1 1/4”SS 9545-012-026 9545-012-026 9545-012-026 9545-012-026 6
14 Special Washer, Rubber 8641-222-000 8641-222-000 8641-222-000 8641-222-000 6
* Tub Front 9974-011-002 1
15 Washer-Flat, 1/4 8641-581-018 8641-581-018 8641-581-018 8641-581-018 12
16 Nut, #10-32UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 6
17 Spacer Plastic #10x1/2 9538-157-019 9538-157-019 9538-157-019 9538-157-019 6
18 Soap Dispenser (no lid) 9807-087-001 9807-087-001 9807-087-001 9807-087-001 1
* Det. Dispenser Mtg Gasket to
Tub frnt
9206-425-001 9206-425-001 9206-425-001 9206-425-001 1
19 Bracket Soap box mounting 9029-122-002 9029-122-002 9029-122-002 9029-122-002 1
20 Nut Hex Elasticstop #10-32 SS
mtg dispenser
8640-413-006 8640-413-006 8640-413-006 8640-413-006 6
21 Lid Assembly dispenser 9987-104-001 9987-104-001 9987-104-001 9987-104-001 1
22 Lid screws #10-32x1/2 SS 9545-012-017 9545-012-017 9545-012-017 9545-012-017 2
23 Softner siphon tube (plastic) 9574-252-002 9574-252-002 9574-252-002 9574-252-002 1
* Flow restictors 9475-002-003 9475-002-003 9475-002-003 9475-002-003 AR
24 Washer Dispenser Label Blue 8502-687-001 8502-687-001 8502-687-001 8502-687-001 1
24 Washer Dispenser Label Black 8502-745- 001 8502-745-0 01 8502-745-001 8502-745-001 1

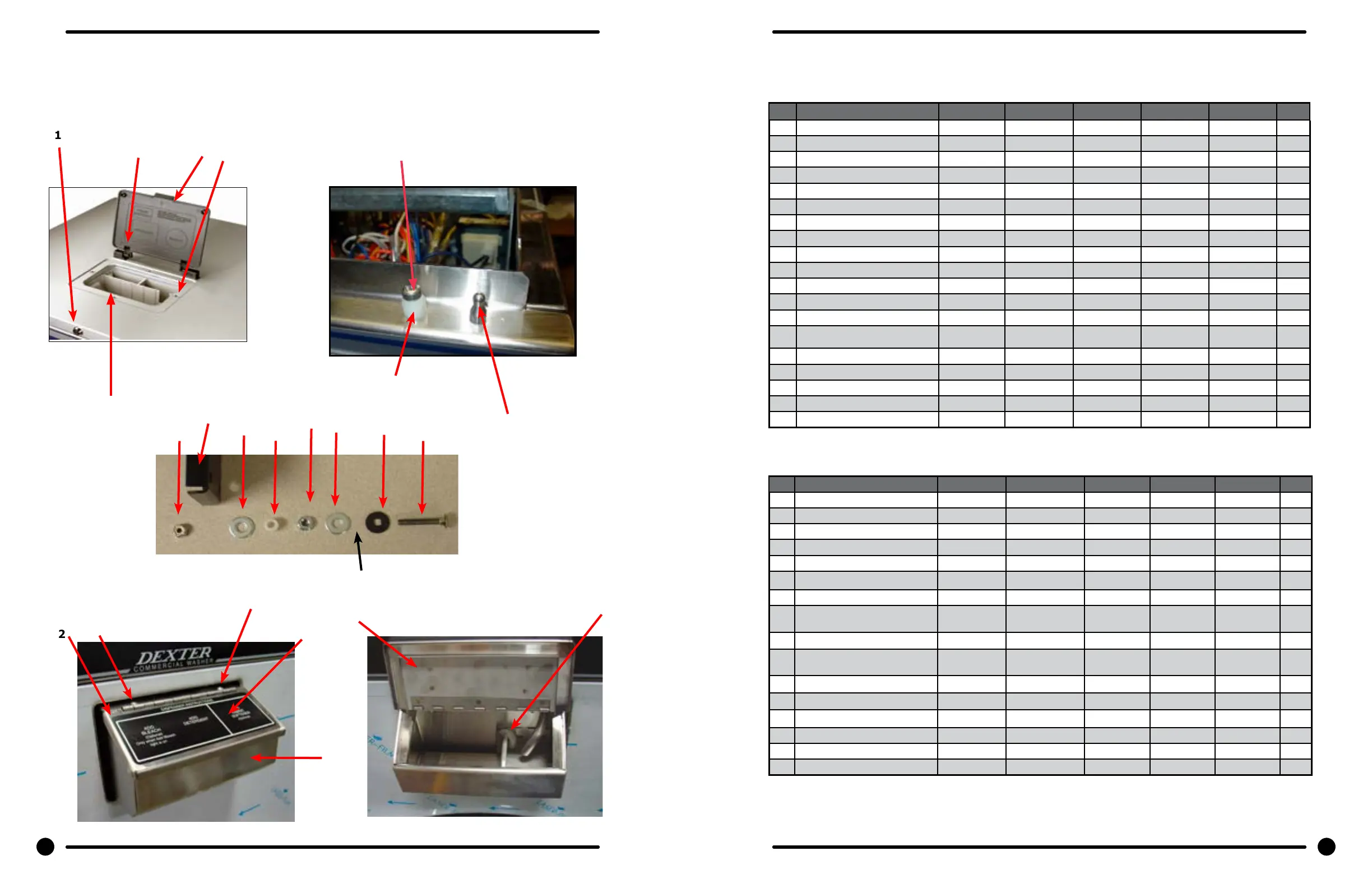

Front Mount Detergent Dispenser
Top Mount Detergent Dispenser
88 89
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
