Dexter Laundry WCAD Series Parts And Service Manual

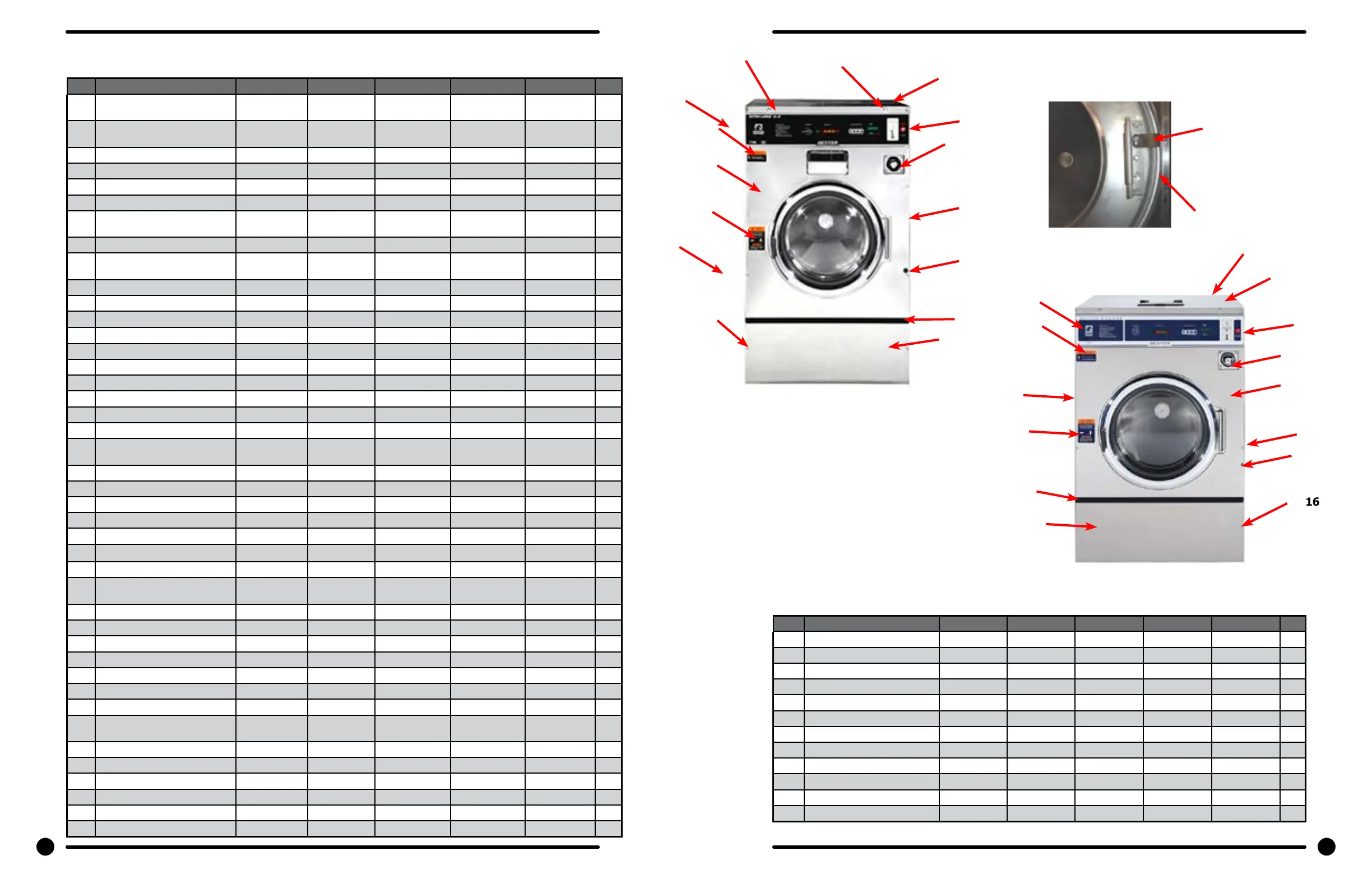

Cabinet and Front Panel Group Part # by Model
Large Door After Serial # 535659
Key Description T-750 T-900 T950 T-1200 T1450 QTY
1 Panel, Side (Left or Right) -
stainless
9454-812-001 2
1 Panel, Side (Left or Right) -
stainless
9732-359-002 9732-359-002 9732-359-003 9732-359-004 4
* Strap Assembly (side panel) 9966-013-001 9966-012-001 9966-012-001 9966-012-002 9966-012-002 2
* Shim (side panel) 9552-041-001 9552-039-001 9552-039-001 9552-042-001 9552-044-001
2 Screw, (Side Panel to Base) 6
2 Screw, (Side Panel to Base) 9545-018-013 9545-018-013 9545-018-013 9545-018-013 8
2 Nut, Hex 1/4-20 UNC (for strap
assembly
8640-414-006 6
2 Nut, Hex 1/4-20 UNC 8640-414-006 8640-414-006 8640-414-006 8640-414-006 8
3 Bracket, Side Panel under front
panel
9046-085-001 9046-085-001 9046-085-001 9046-085-001 9046-086-001 1
* Screw #10Bx1/2 side panel brkt 9545-008-026 1
* Nut 1/4-20 UNC side panel brkt 8640-414-006 1
• Nut, Hex 8640-413-002 8640-413-002 8640-413-002 8640-414-006 2
* Screw 9545-008-024 9545-008-024 9545-008-024 9545-008-026 2
4 Panel Assy, Front 9454-810-001 9989-617-002 9989-617-002 9989-618-002 9989-618-002 1
* Stop Button Mounting Plate 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-001 1
5 Band, Edge Protector 9578-072-002 9578-092-002 9578-092-002 9578-092-002 9578-092-002 1
* Bumper Loading Door 9051-055-001 9051-055-001 9051-055-001 9051-055-001 9051-055-001 1
* Nut, 1/4 x 20 for bumper 8640-414-006 8640-414-006 8640-414-006 8640-414-006 8640-414-006 1
* Screw, Hex- To Control Panel 9545-008-024 9545-008-024 9545-008-024 9545-008-024 9545-008-024 2
* Nut, Spring- To Control Panel
10/32
8640-442-001 8640-442-001 8640-442-001 8640-442-001 8640-442-001 2
6 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
6 Screw, Flat Head- Front to Sides 4
6 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
6 Washer, Finish 4
* Nut, Spring-To Front Panel 8640-442-001 8640-442-001 8640-442-001 8640-442-001 8640-442-001 2
7 Label, Door Opening (Blue) 8502-723- 001 8502-723-001 8502-723-001 8502-723-001 8502-723-0 01 1
7 Label, Door Opening (Black) 8502-742-001 8502-742-001 8502-742-001 8502-742-001 8502-742-001 1
8 Panel, Control (Mounts Name-
plate)
9989-525-001 9989-525-001 9989-525-001 9989-525-001 9989-529-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
9 Nameplate Decal, Control Blue 9412-162-001 9412-198-001 9412-191-001 9412-142-001 9412-193-001 1
Nameplate Decal, Control Black 9412-199-001 9412-192-001 9412-173-001 9412-194-001
10 Panel Top 9454-743- 001 9454-736 -002 9454-736- 002 1
11A Panel Top Front 9454-761-001 9454-850-001 1
11B Panel Top Rear 9454-762- 001 9454-851-001 1
12 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 8650-012-003 8650-012-003 2
13 Door, Lower Service, Includes
Handle
9108-118-001 9960-286-004 9960-286-004 9960-286-004 9960-286-005 1
14 Handle (bumper guard) 9244-086-003 9244-086-003 9244-086-003 9244-086-003 9244-086-004 1
* Rivet Blind 3/16” Alum 9491-009-003 9491-009-003 9491-009-003 9491-009-003 9491-009-003 4
* Screw 9545-045-010 9545-045-010 9545-045-010 9545-045-010 9545-045-010 4
15 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
16 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring 8640-442-001 8640-442-001 8640-442-001 8640-442-001 8640-442-001 2
Key Description T-750 T-900 T950 T-120 0 T1450 QTY
17 Coin Box assy, Large Blue 9807-099-002 9807-099-002 9807-099-002 9807-099-002 9807-099-002 1
17 Coin Box assy, Large Black 9807-099-004 9807-099-004 9807-099-004 9807-099-004 9807-099-004 1
* Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 6292-006-007 6292-006-007 1
* Lock 8650-012-003 8650-012-003 8650-012-003 8650-012-003 8650-012-003 2
* C am, Lock-Top 9095-038-001 9095-038-001 9095-038-001 9095-038-001 9095-038-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 8640-426-001 8640-426-001 1
* Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 8641-581-008 8641-581-008 1
18 Coin Vault, S.S. 9942-037-001 9942-037-001 9942-037-001 9942-037-001 9942-037-001 1
18 Coin Vault, Black 9942-037-005 9942-037-005 9942-037-005 9942-037-005 9942-037-005 1
* Screw, 10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Chute, Coin 9119-031-001 9119-031-001 9119-028-001 9119-028-001 9119-028-001 1
* Screw, Coin Schute 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001 2
