Cabinet and Front Panel Group Part # by Model
Large Door Before Serial # 535659
Key Description T-750 T-900 T-950 T-1200 T-1450
1 Panel, Side (Left or Right) -
stainless
9454-812-001 2
1 Panel, Side (Left or Right) -
stainless
9454-813-001 9732-359-003 4
* Strap Assembly (side panel) 9966-013-001 9966-012-001 9966-012-002 4
* Shim (side panel) 9552-041-001 9552-039-001 9552-042-001 2
* Screw, (Side Panel to Base) 9545-018-013 6
* Screw, (Side Panel to Base) 9545-018-013 9545-018-013 8
* Nut, Hex 1/4-20 UNC (for strap
assembly to base)
8640-414-006 6
* Nut, Hex 1/4-20 UNC (for strap
to base)
8640-414-006 8640-414-006 8
2 Bracket, Side Panel under front
panel
9046-085-001 9046-085-001 9046-085-001 1
* Screw #10Bx1/2 side panel brkt 9545-008-026 1
* Nut 1/4-20 UNC side panel brkt 8640-414-006 1
* Nut, Hex 8640-413-002 8640-413-002 2
* Screw 9545-008-024 9545-008-024 2
3 Panel Assy, Front 9454-810-001 9454-810-001 9989-618-002 1
* Stop Button Mounting Plate 9452-725-001 9452-725-001 9452-725-001 1
* Band, Edge Protector 9578-072-002 1
4 Bumper Loading Door 9051-055-001 9051-055-001 9051-055-001 1
* Nut, 1/4 x 20 for bumper 8640-414-006 8643-414-006 8643-414-006 1
* Screw, Hex- To Control Panel 9545-008-024 9545-008-024 9545-008-024 2
* Nut, Spring- To Control Panel
10/32
8640-442-001 8640-442-001 8640-442-001 2
5 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 9545-008-014 2
5 Screw, Flat Head- Front to Sides 4
6 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 2
6 Washer, Finish 4
* Nut, Spring-To Front Panel 8640-442-001 8640-442-001 8640-442-001 2
7 Label, Door Opening (Blue) 8502-723- 001 8502-723- 001 8502-723-0 01 1
7 Label, Door Opening (Black) 8502-742-001 8502-742-001 8502-742-001 1
8 Panel, Control (Mounts Name-
plate)
9989-500-001 9989-500-001 9989-500-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 9545-008-026 4
9 Nameplate Decal, Control Blue 9412-162-001 9412-141-001 9412-142-001 1
9 Nameplate Decal, Control Black 9412-165-001
10 Panel Top 9454-743- 001 9454-736- 001 1
11A Panel Top Front 9454-761-0 01 1
11B Panel Top Rear 9454-762- 001 1
12 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 2
13 Door, Lower Service 9960-286-004 9960-286-004 9960-286-004 1
14 Handle (bumper guard) 9244-086-003 9244-086-003 9244-086-003 1
* Rivet Blind 3/16” Alum 9491-009-003 9491-009-003 4
* Screw 9545-045-010 9545-045-010 4
15 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 9545-008-014 2
16 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring 8640-442-001 8640-442-001 8640-442-001 2
Key Description T-750 T-900 T950 T-120 0 T1450 QTY
17 Coin Box assy, Large Blue 9807-099-002 9807-099-002 9807-099-002 1
17 Coin Box assy, Large Blue 9807-099-004
* Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 1
* C am, Lock-Top 9095-038-001 9095-038-001 9095-038-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 1
* Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 1
* Coin Vault, S.S. 9942-037-001 9942-037-001 9942-037-001 1
* Coin Vault, Black 9942-037-005 9942-037-005 9942-037-005 1
* Screw, 10B x 1/2 9545-008-026 9545-008-026 9545-008-026 4
* Chute, Coin 9119-031-001 9119-031-001 9119-028-001 1
* Screw, Coin Schute 9545-008-001 9545-008-001 9545-008-001 2

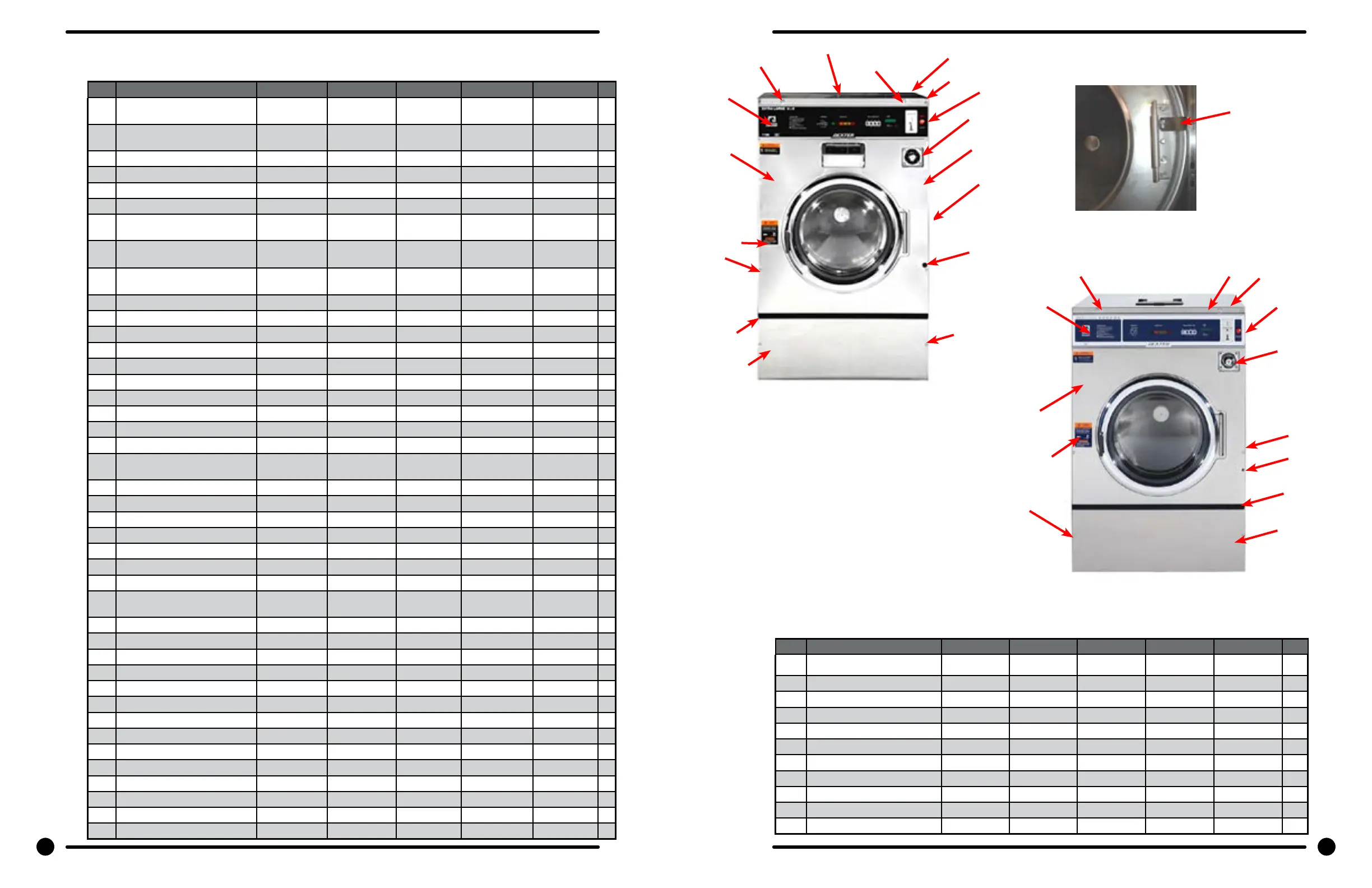

84 85
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
84 85
3
9
12
14
10
11A
15,16
13
1
2
4
7
8
9
17
5,6
9
7
3
11B
1212
12
13
14
4
5,6
15,16
5,6
17
8
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
To Next Page
