Dexter Laundry WCAD Series Parts And Service Manual

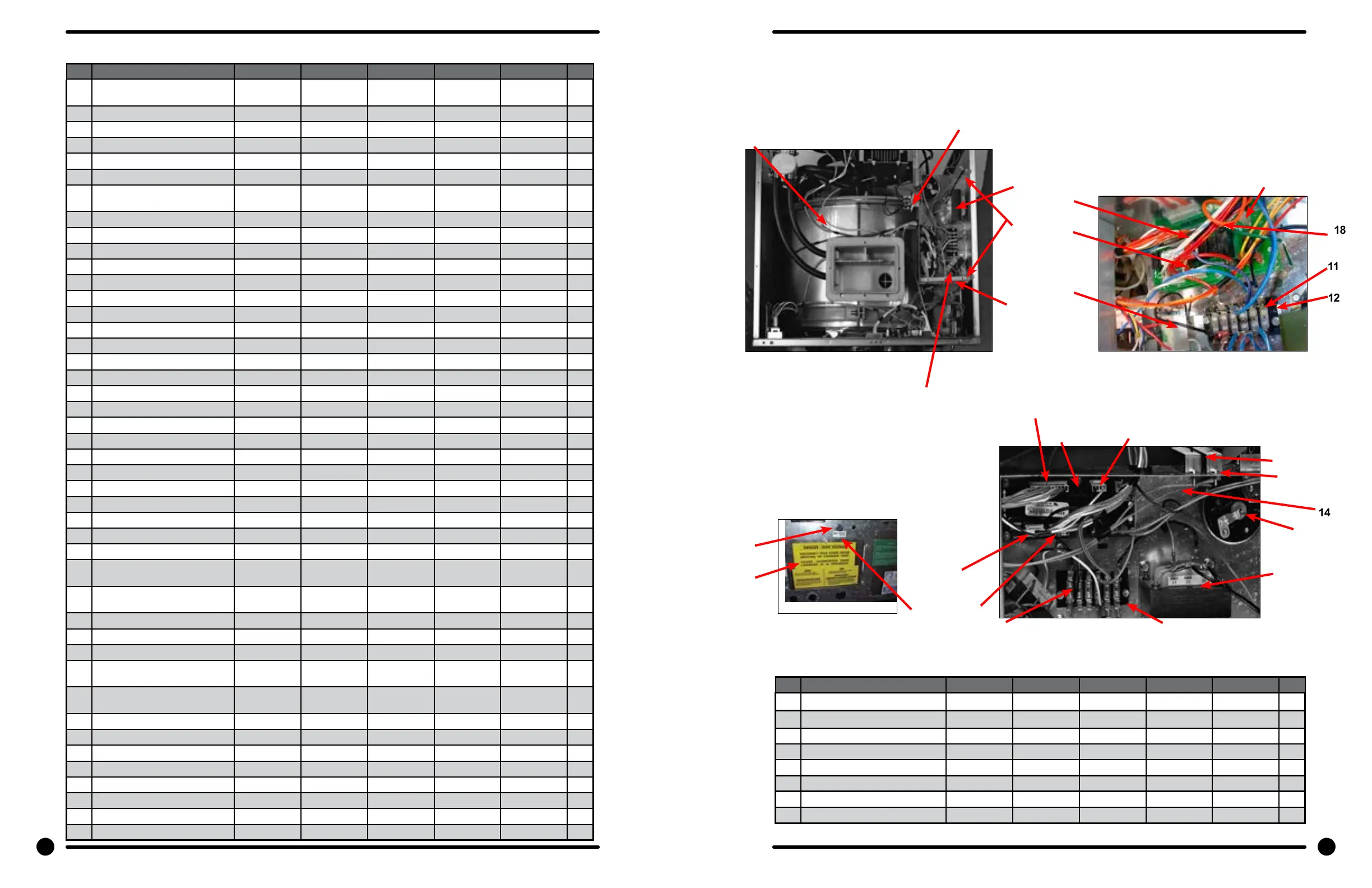

Electrical Components - Top Compartment
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Trough Assy,Controls 208-240
volt (all parts below #2-#43)
9857-159- 002 9857-154- 001 9857-160-001 9857-191-001 1
* Trough only 9839-015-001 9839-015-001 9839-015-001 9839-017-001 1
* Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Lockwasher Exttooth #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 4
2 Angle Support Trough 9003-278-001 9003-271-001 1
3 Screw, Trough Bracket 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 3
4 Transformer, Control (Secondary
Voltage to 115 volts)
8711-004-001 8711-004-001 8711-004-001 8711-004-001 8711-004-001 1
* Screw, Mtg #8Bx1/4” 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 4
* Lockwasher #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 4
* Screw GRN. #10-32x 1/2” 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 1
* Lockwasher #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 1
* Lug, Grounding 8652-130-037 8652-130-037 8652-130-037 8652-130-037 8652-130-037 1
5 PCB assembly Relay Main 9473-006-001 9473-006-001 9473-006-001 9473-006-001 9473-006-001 1
* Spacer Plastic #8x3/8” 9538-157-011 9538-157-011 9538-157- 011 9538-157-011 9538-157-011 6
* Nuts Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 6
6 Harness, P17 Drain/Therm/Sol 9627-796-002 9627-796-002 9627-796-002 9627-796-002 9627-796-002 1
7 Harness P19/Water Valve 9627-795-004 9627-795-002 9627-795-004 9627-795-004 9627-795-004 1
8 Harness P8/P16 9627-794- 001 9627-794-001 9627-794-004 9627-794-004 9627-794- 001 1
9 Harness P20/P21 9627-793- 001 9627-793-001 9627-793- 001 9627-793-001 9627-793-0 01 1
* Bushing , Wire 7/8 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 2
* Stando Twistlock 9527-002-002 9527-002-002 9527-002-002 9527-002-002 9527-002-002 3
10 Dynamic Braking Resistor 9483-004-003 9483-004-003 9483-004-003 9483-004-003 2
11 Screws #10-32x1/2” (pnhdcr) 9545-012-008 9545-012-008 9545-012-008 9545-012-008 9545-012-008 4
12 Nuts, #10-32 UNF 2B 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
* Screw #6-32x5/16” 9545-044-006 9545-044-006 9545-044-006 9545-044-006 9545-044-006 4
* Nuts Hex #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 4
11 Terminal Block Assy, POWER 9897-034-001 9897-034-001 9897-034-001 9897-034-001 9897-034-001 1
* Screw, Mtg 8Bx3/8” 9545-045-007 9545-045-007 9545-045-007 9545-045-007 9545-045-007 2
12 Strip, Terminal Marker 9558-027-001 9558-027-001 9558-027-001 9558-027-001 9558-027-001 1
13 Switch, Pressure Before Serial
#538202
9539-457-002 9539-457-002 9539-457-002 9539-457-002 1
13 Switch, Pressure After Serial
#538202
9539-457-004 9539-457-004 9539-457-004 9539-457-004 9539-457-002 1
* Screw, Mtg #10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
* Electronic Pressure Swtich Kit 9732-314-001 9732-314-001 9732-314-001 9732-314-001 9732-314-001 *
14 Harness P5/Pressure 9627-803-001 9627-803-001 9627-803-001 9627-899-001 1
15 Transformer, (Step Down)
120/2.3 VAC&24 VAC 50/60hz
8711-009-001 8711-009-001 8711-009-001 8711-009-001 8711-009-001 1
* Screw, Transformer Mtg
#8Bx1/4”
9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 4
* Lockwasher #6 exttooth 8641-582-005 8641-582-005 8641-582-005 8641-582-005 8641-582-005 4
16 Fuseholder 9200-001-002 9200-001-002 9200-001-002 9200-001-002 9200-001-002 1
16 Fuse 1.5 amp 8636-018-001 8636-018-001 8636-018-001 1
16 Fuse 2.5 amp 8636-018-004 8636-018-004 1
17 Label Fuse 1.5 amp Rear 8502-716-0 01 8502-716- 001 8502-716 -001 1
17 Label Fuse 2.5 amp Rear 8502-716-002 8502-716-002 1
* Bracket Terminal Mounting, 9029-076-001 9029-076-001 1
Screw #10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
Electrical Components - Top Compartment
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Terminal Lug, Solderless 8652-134- 001 8652-134-001 8652-134- 001 8652-134-001 8652-134-001 1
* Terminal Block, Power 9897-033-001 9897-035-001 9897-035-001 9897-033-002 9897-035-001 1
* Strip, Terminal Marker Power 9558-025-001 9558-025-001 9558-025-001 9558-025-001 9558-025-001
* Wiring Harness Power Terminal 9627-747-003 9627-747-002 9627-747-002 9627-747-002 1
18 Cover Electrical 9074-267-001 9074-267-001 9074-267-001 9074-267-007 9074-267-001 1
19 Label, Warning 8502-614-001 8502-614-001 8502-614-001 8502-614-001 8502-614-001 1
20 Label, Warning 8502-639-001 8502-639-001 8502-639-001 8502-639-001 8502-639-001 1
* Screw 8B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
108 109
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
108 109
4
6
7 4
11
8
5
1
12
19
15
15
18
16 & 17
10
2,3
17
7
18,19,20
15
9
11,12
12
11
MAIN PCB
13
14
16
10,11,12
