Dexter Laundry WCAD Series - Page 81

Converted Easy Card 60Lb. Non-Express

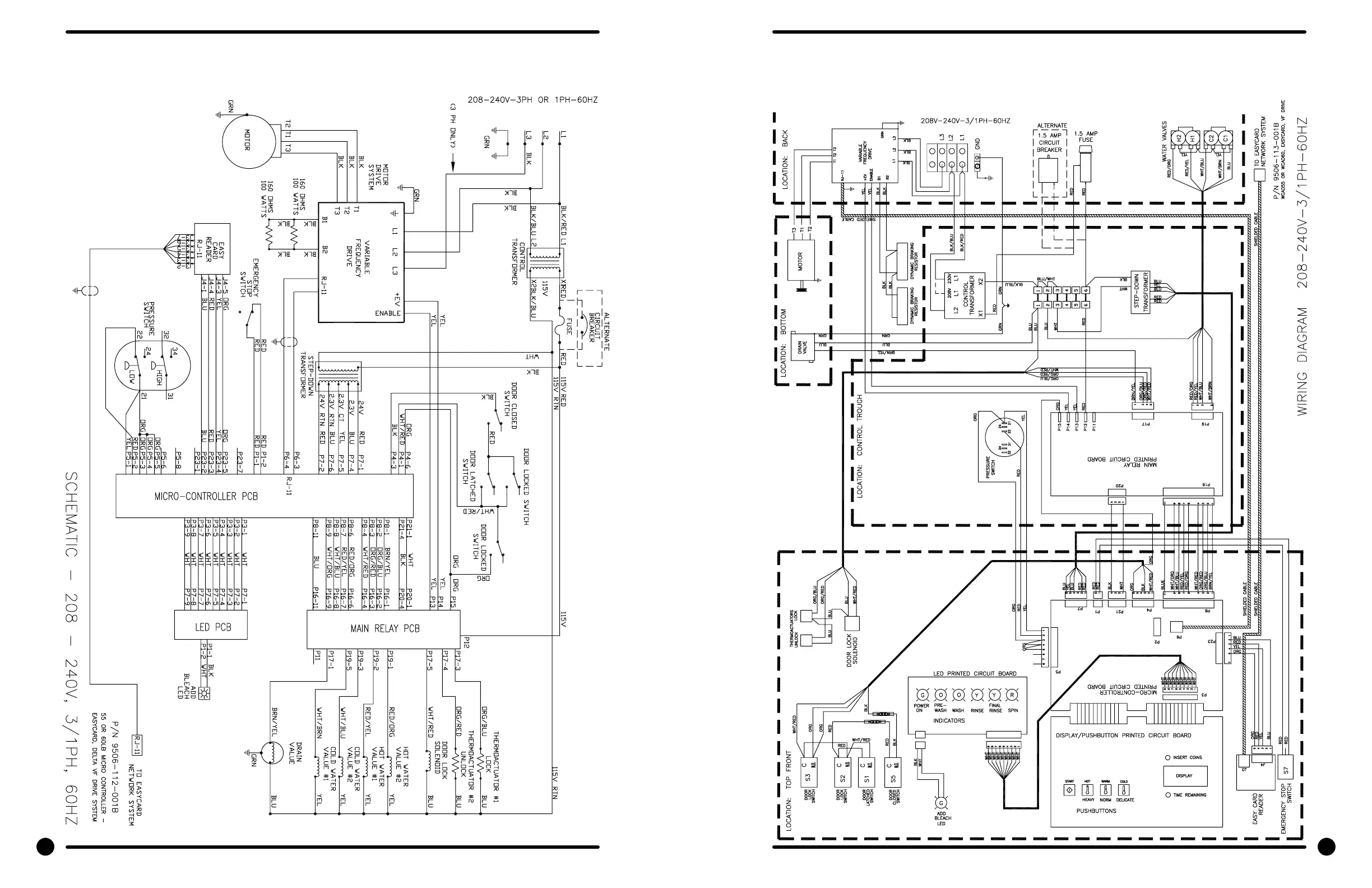

208-240 Volt Wiring Schematic
Converted Easy Card 60Lb. Non-Express
208-240 Volt Wiring Diagram
