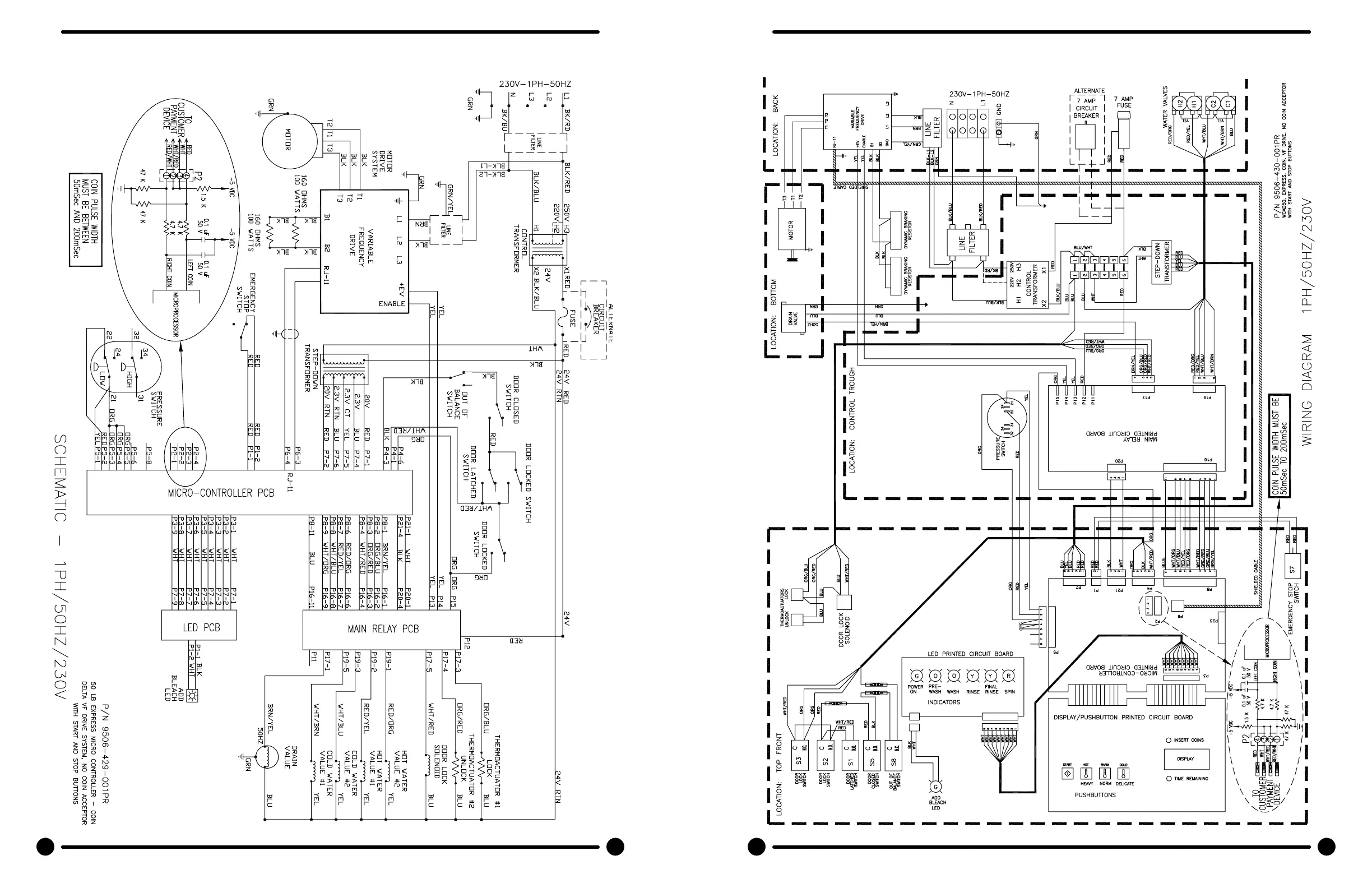

WCAD50KCB -59CNSZ 230/50/1 Voltage Schematic WCAD50KCB -59CNSZ 230/50/1 Voltage Diagram
174 175
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
174
Part # 8533-066-001 5/11
174
175
Part # 8533-066-001 5/11
175
