www.d
fi
.com
18
Chapter 2 Hardware Installation
Chapter 2

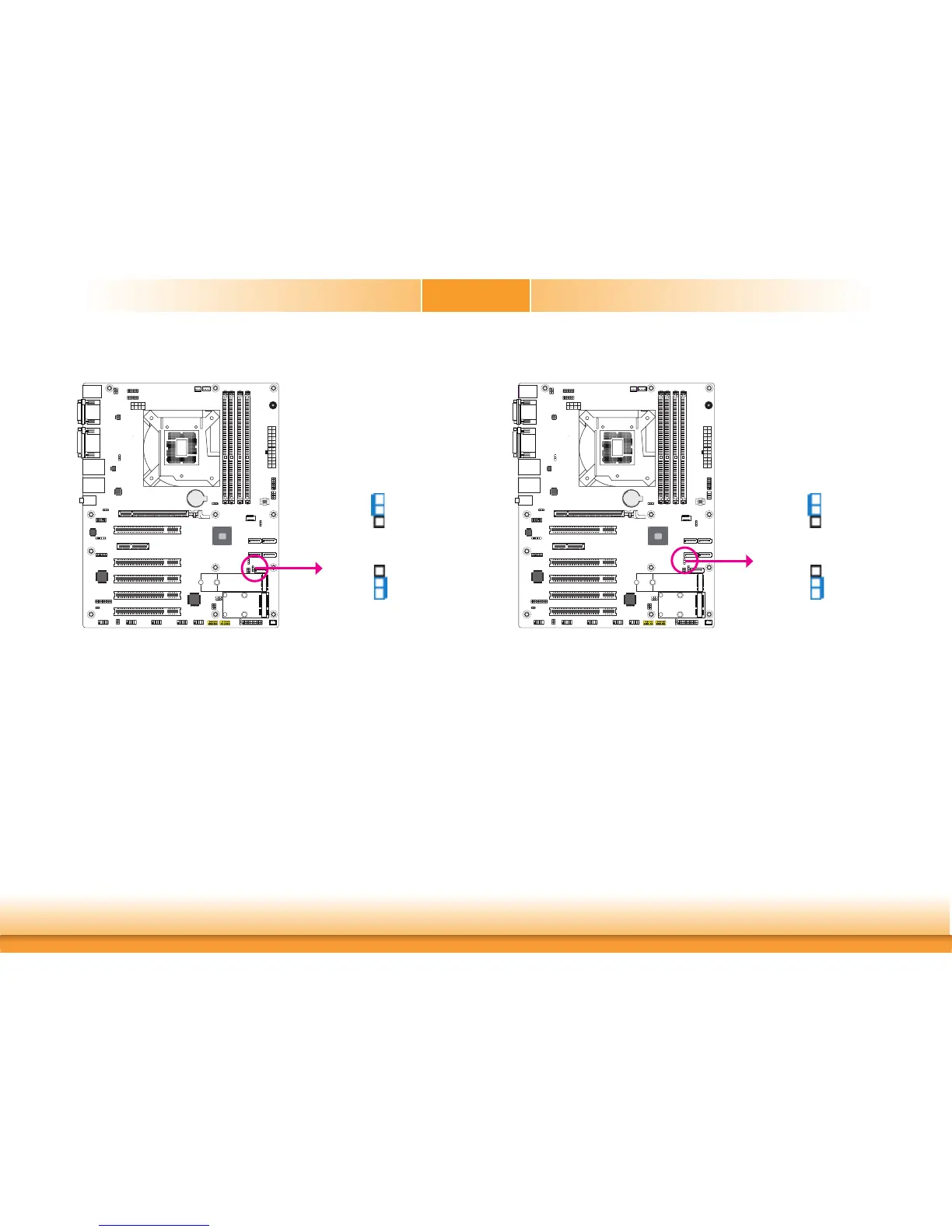

Mini PCIe/mSATA Power Select (for CS630-Q370 only)
JP21 is designed to select the Mini PCIe/mSA
TA power: 3V3 (default) or 3V3DU.
A61
Battery
A61
JP21
Mini PCIe/mSATA Signal Select (for CS630-Q370 only)
JP9 is designed to select the Mini PCIe signal: mSA
TA or Mini PCIe (def
ault).
A61
Battery
A61
JP9
2-3 On:
m
S
ATA
1-2 On:
Mini PCIe (default)
3
1
2
3
1
2
2-3 On:
3V3DU
1-2 On:
3V3 (default)
3
1
2
3
1
2
17
19
Table of Contents
Default Chapter
2
Copyright
2
FCC and DOC Statement on Class B
2
Trademarks
2
Table of Contents
3
Safety Measures
4
Static Electricity Precautions
4
Warranty
4
About the Package
5
Before Using the System Board
5
Optional Items
5
Chapter 1 - Introduction
6
Specifications
6
Features
7
Chapter 2 - Hardware Installation
9
Board Layout
9
System Memory
9
Installing the DIMM Module
10
Cpu
11
Installing the CPU
12
Installing the Fan and Heat Sink
14
Jumper Settings
15
COM1/COM2 RS232/422/485 Select
15
COM1/COM2 Rs232/Power Select
16
Clear CMOS Data
17
USB Power Select
17
Mini Pcie/Msata Signal Select (for CS630-Q370 Only)
18
Mini Pcie/Msata Power Select (for CS630-Q370 Only)
18
Digital I/O Power Select
19
Digital I/O Output State
19
PS/2 Power Select
20
Rear Panel I/O Ports
21
PS/2 Keyboad/Mouse Port
21
COM (Serial) Ports
22
Graphics Interfaces
23
RJ45 LAN Ports
24
USB Ports
24
Audio
25
I/O Connectors
26
SATA (Serial ATA) Connectors
26
Digital I/O Connector
26
Cooling Fan Connectors
27
Power Connectors
27
Chassis Intrusion Connector
28
Front Panel Connector
28
Standby Power LED
29
Expansion Slots
29
S/PDIF Connector
30
Battery
30
Smbus Connector
31
LAN LED Connector
31
LPC Connector
32
Chapter 3 - BIOS Setup
33
Overview
33
AMI BIOS Setup Utility
34
Main
34
Advanced
35
Chipset
46
Security
50
Boot
50
Save & Exit
51
Updating the BIOS
52
Notice: BIOS SPI ROM
52
Chapter 4 - Supported Software
53
Chapter 5 - RAID (CS630-Q370 Only)
62
Chapter 6 - Intel AMT Settings (CS630-Q370 Only)
64
Appendix A - Troubleshooting Checklist
78
