The 8-bit Digital I/O connector provides powering-on function to external devices that are con-
nected to these connectors.

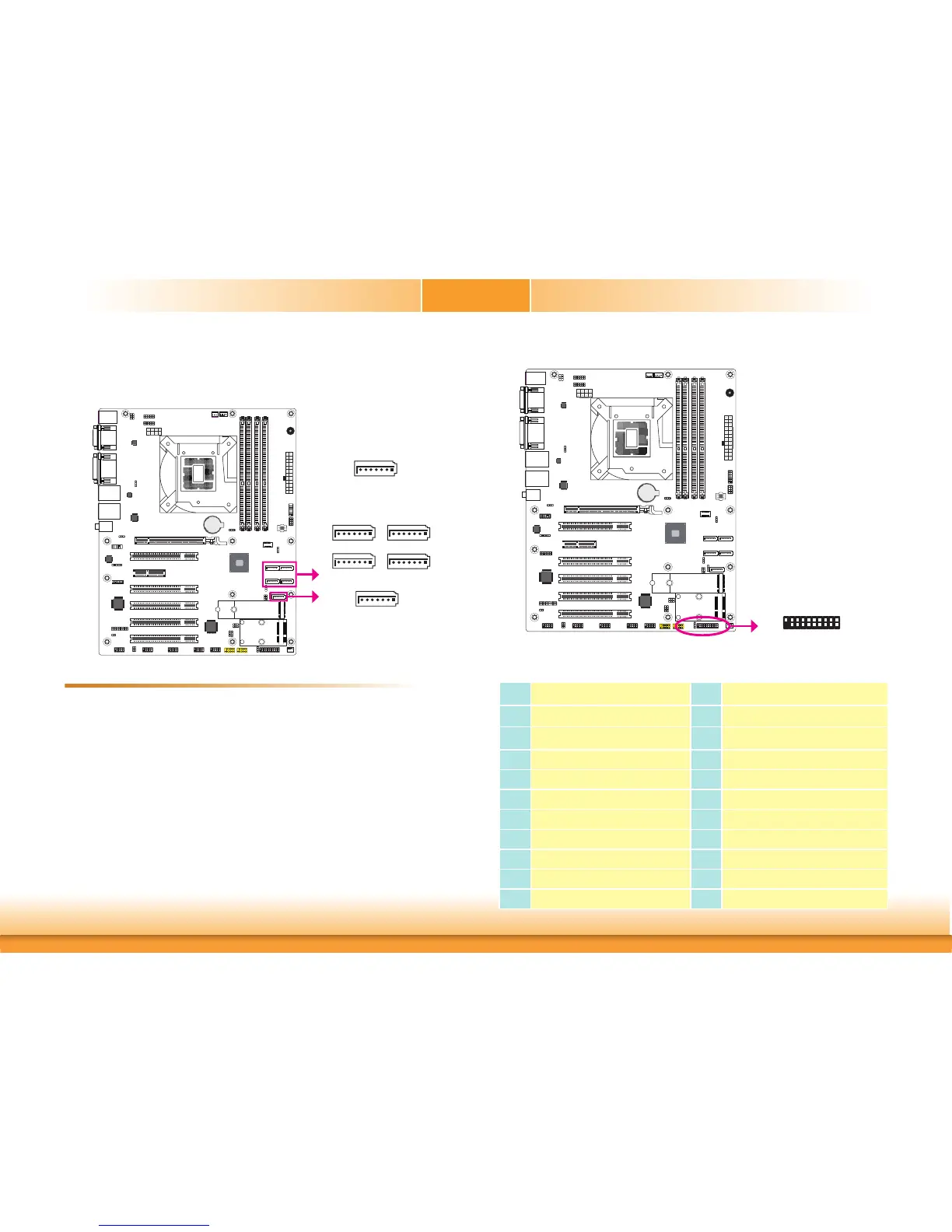

Digital I/O Connector
Digital I/O Connector
Pin Pin Assignment Pin Pin Assignment
1
GND
2
+12V
3
DIO7
4
+12V
5
DIO6
6
GND
7
DIO5
8
+5V
9
DIO4
10
+5V
11
DIO3
12
GND
13
DIO2
14
+5VDU
15
DIO1
16
+5VDU
17
DIO0
18
GND
19
GND
A61
Battery
A61
I/O Connectors
SATA (Serial ATA) Connectors
7
RXN
GND
TXP
TXN
GND
1
RXP
GND
A61
Battery
A61
SATA 1SATA 0
SATA 3SATA 2
• Serial ATA 3.0 ports with data transfer rate up to 6Gb/s
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports Intel
®
Smart Response Technology
• Supports RAID 0, RAID 1, RAID 5, RAID 10 (CS630-Q370 only)
The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Se-
rial ATA data cable to a SATA connector and the other end to your Serial ATA device.
BIOS Setting
Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the
BIOS. Refer to the chapter 3 for more information.
Features
SATA 4
(CS630-Q370 only)
Digital I/O
1
2
19
