Chapter 2 Hardware Installation
Chapter 2

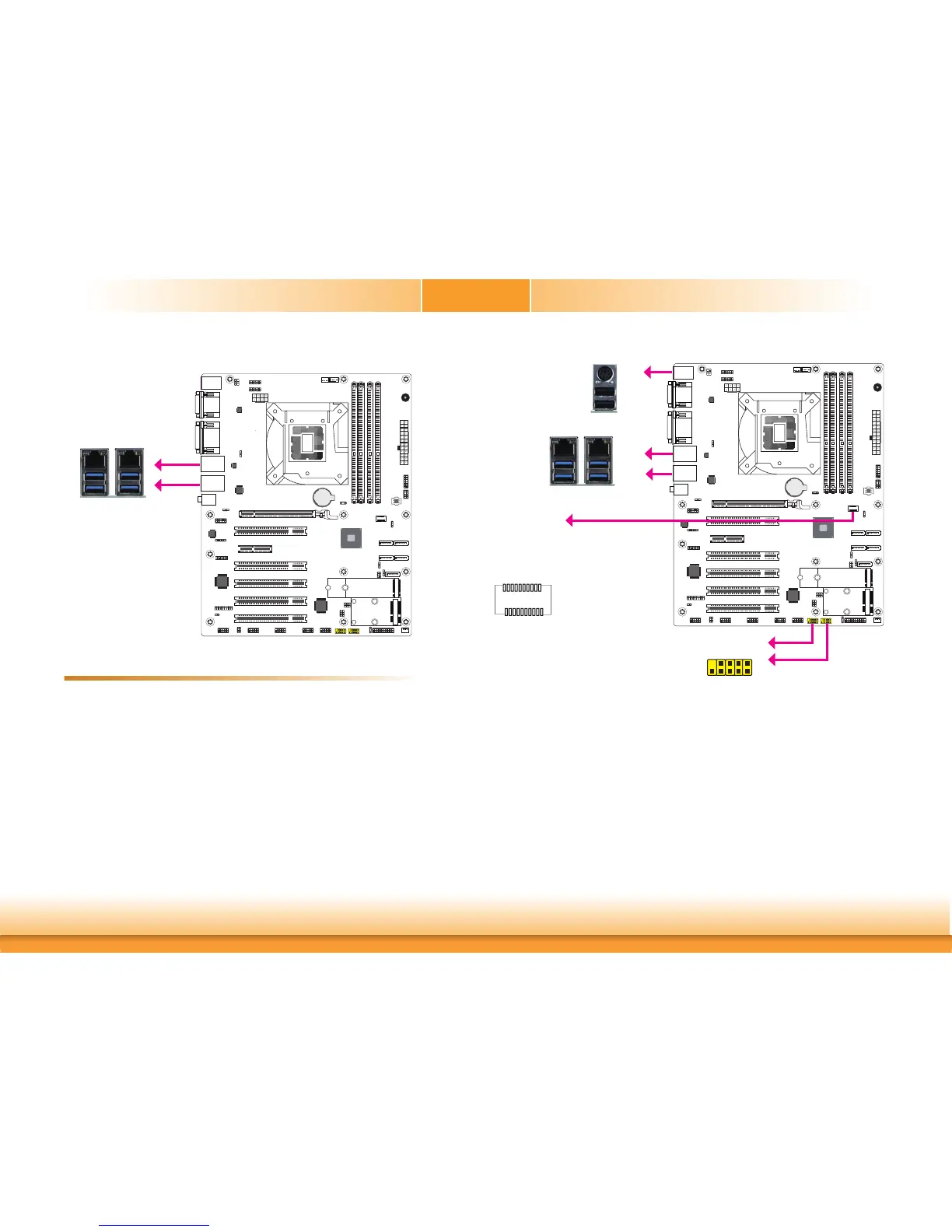

USB Ports
The USB device allows data exchange between your computer and a wide range of simultane-
ously accessible external Plug and Play peripherals.
The system board is equipped with 2 onboard USB 2.0 ports (USB 5-6) and 4 onboard USB
3.1 Gen 1 ports (USB 1-2/3-4). The 10-pin connectors allow you to connect 4 additional USB
2.0 ports (USB 7-8/9&14). The 20-pin connector allows you to connect 2 additional USB 3.1
Gen 2 ports (USB 5-6) for CS630-Q370. The additional USB ports may be mounted on a card-
edge bracket. Install the card-edge bracket to an available slot at the rear of the system chas-
sis and then insert the USB port cables to a connector.
BIOS Setting
Configure these onboard USB devices in the Advanced menu (“USB Configuration” submenu)
of the BIOS. Refer to the chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your system operation to use the USB device.
Refer to your operating system’s manual or documentation for more information.
10
VCC
-Data
+Data
GND
VCC
-Data
+Data
GND
N.C.
9
1
2
USB 2.0
USB 6
USB 5
USB 2.0
A61
Battery
A61
USB 7-8
USB 4
USB 3
USB 3.1 Gen 1
USB 2
USB 1
USB 9&14 or opt. vertical USB 9
USB 5-6
RJ45 LAN Ports
LAN 2
A61
Battery
A61
LAN 1
LAN 1
LAN 2
GND
USBP_C_11P
USB3_TX5_C_DN
USB3_TX5_C_DP
USB 3.1 Gen 2
Features
• 1 Intel
®
I211AT PCIe
• 1 Intel
®
I219V LAN Phy (CS630-H310)
• 1 Intel
®
I219LM LAN Phy with iAMT12.0 (CS630-Q370)
The LAN port allows the system board to connect to a local area network by means of a
network hub.
BIOS Setting
Configure the onboard LAN ports in the Advanced menu (“ACPI Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to the chapter 4 for more information.
(for CS630-Q370 only)
1
10
11
20
GND
USB3_RX5_C_DP
USB3_RX5_C_DN
GND
USBP_C_11N
SBV6 GND
USB3_TX6_C_DN
USB3_TX6_C_DP
GND
USB3_RX6_C_DP
USB3_RX6_C_DN
GND
USBP_C_12N
USBP_C_12P
SBV6
2
2
10
10
9
