Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state.
Audio
Rear Audio
The system board is equipped with 2 audio jacks (Line-out and Mic-in). Line-in jack is available
upon request. A jack is a one-hole connecting interface for inserting a plug.
• Line-in Jack (Light Blue) (optional)
This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player,
AM/FM radio tuner, synthesizer, etc.
• Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
• Mic-in Jack (Pink)
This jack is used to connect an external microphone.
Front Audio
The front audio connector allows you to connect to the second line-out and mic-in jacks that
are at the front panel of your system.
BIOS Setting
Configure these Audio devices in the Advanced menu (“Audio Configuration” submenu) of the
BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the audio driver. Refer to the chapter 4 for more information.

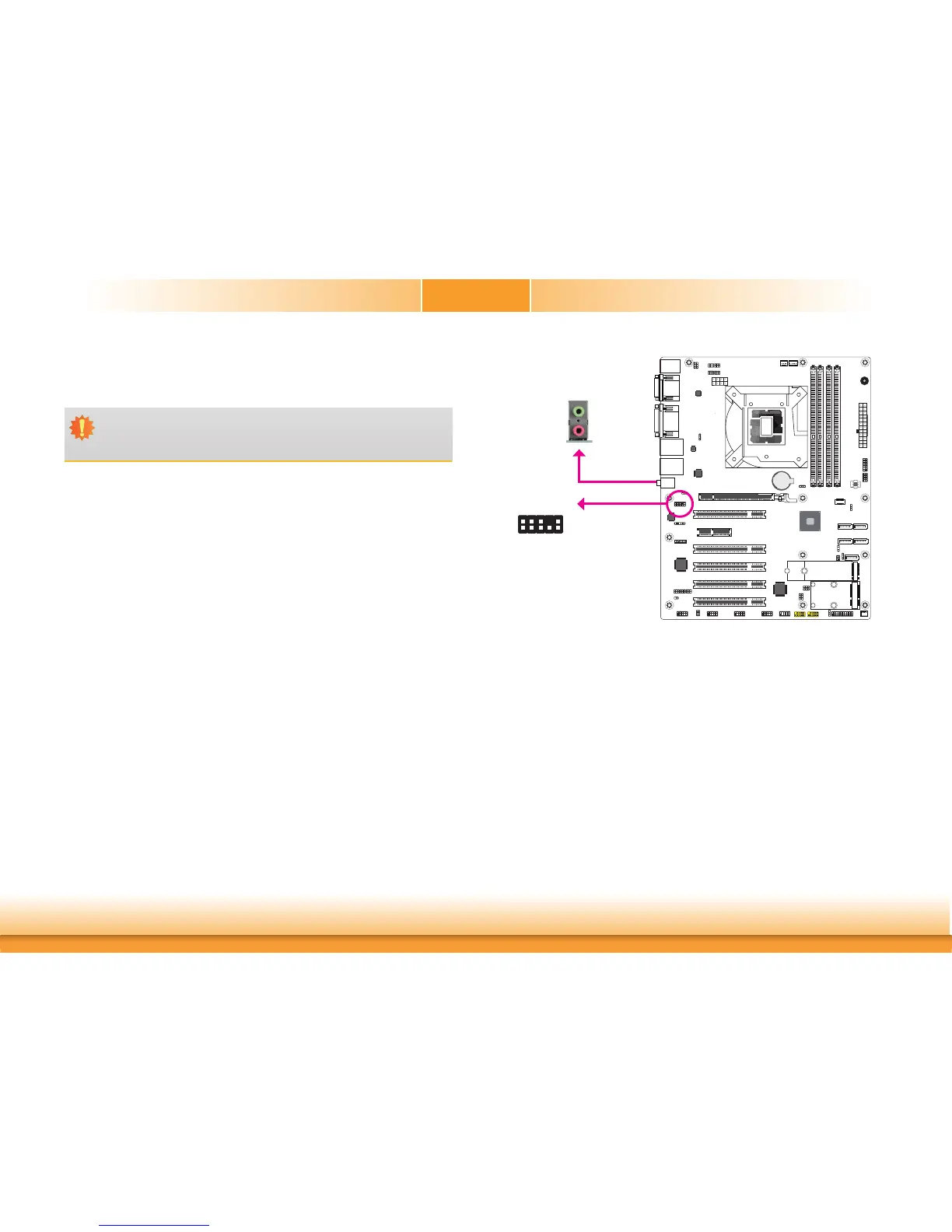

Rear Audio
Line-out
Mic-in
A61
Battery
A61
Front Audio
1
Mic2-L
Line2-R
Front_IO_Sense
GND
NC
2
9
Mic2-JD
Line2-JD
10
Mic2-R
Line2-L
