Hardware Installation
1
USB 4
USB 3
Universal Serial Bus Ports
The system board supports 10 USB 2.0/1.1 ports. USB allows data
exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.

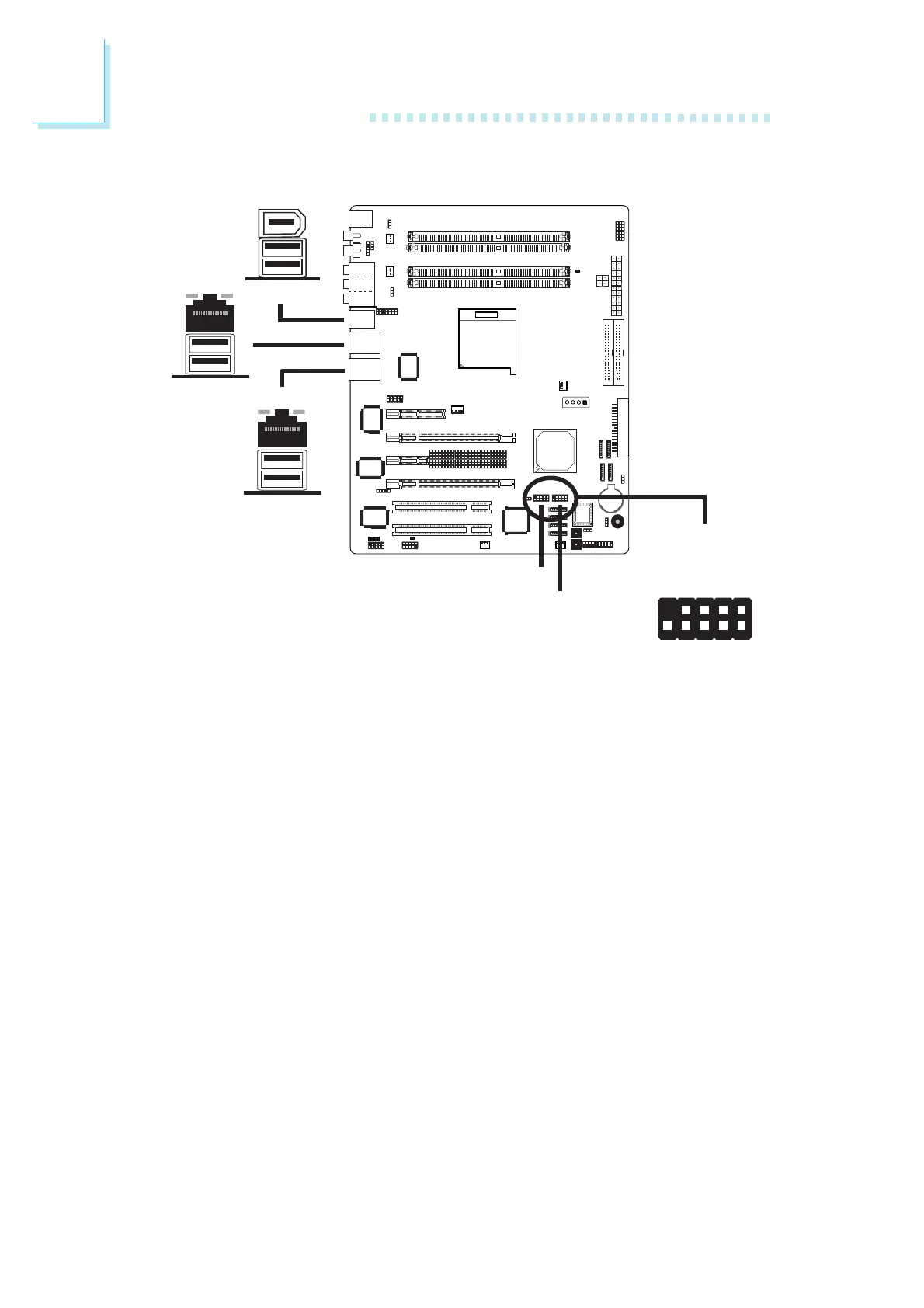

Six onboard USB 2.0/1.1 ports (Black) are at locations CN3 (USB
1-2), CN4 (USB 3-4) and CN6 (USB 5-6) of the system board.
J18 (USB 7-8) and J33 (USB 9-10) allow you to connect 4
additional USB 2.0/1.1 ports. The USB ports may come mounted on
a card-edge bracket. Install the card-edge bracket to the system
chassis then insert the connector that is attached to the USB port
cables to J18 or J33.
BIOS Setting
Configure the onboard USB in the Integrated Peripherals submenu of
the BIOS. Refer to chapter 3 for more information.
USB 6
USB 5
W
W
USB 2
USB 1
USB 7-8
W
USB 9-10
W
1
210
9
VCC VCC
-Data
-Data
+Data
+Data
Ground
Ground
KeyN. C.
