GRYPHON
®
- S3 MANUAL
© 2006
22

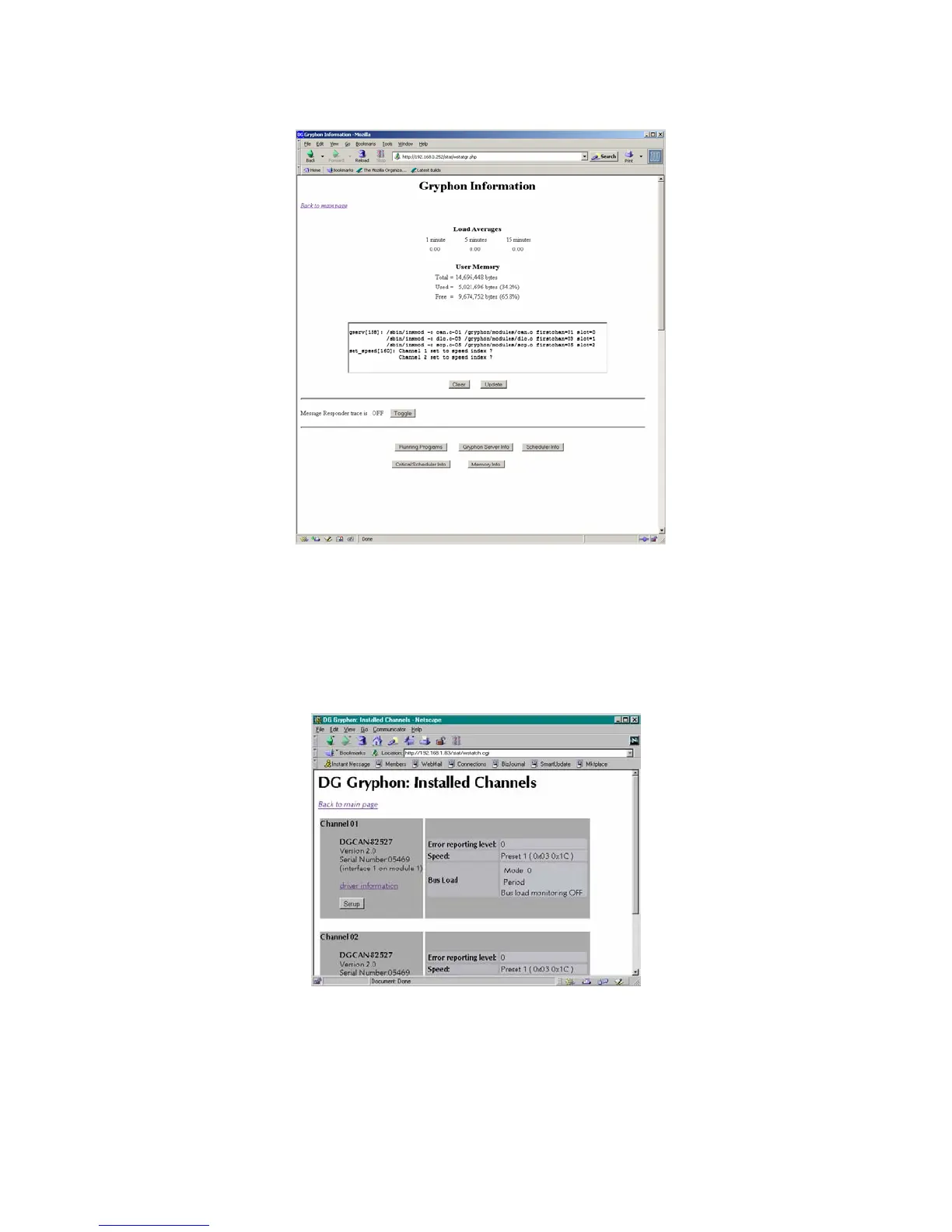

4.1.3 Channels/Stats page
This page is a listing, by channel, of the modules (with their associated pin outs) installed on the
hardware, (i.e., a different view of the module/pin out information).
On this page, you may configure the following channel settings (by clicking the Setup button for the
particular channel you wish to modify):
