RPM4™ OPERATION AND MAINTENANCE MANUAL
© 2004-2007 DH Instruments, a Fluke Company Page 130
The pneumatic schematic for RPM4’s with two Q-RPT modules is the same as for the single Q-RPT
modules in Figure 8 with the following exceptions:
• If both modules use the barometer, the barometer is connected to teed to both module barometer
connection points.

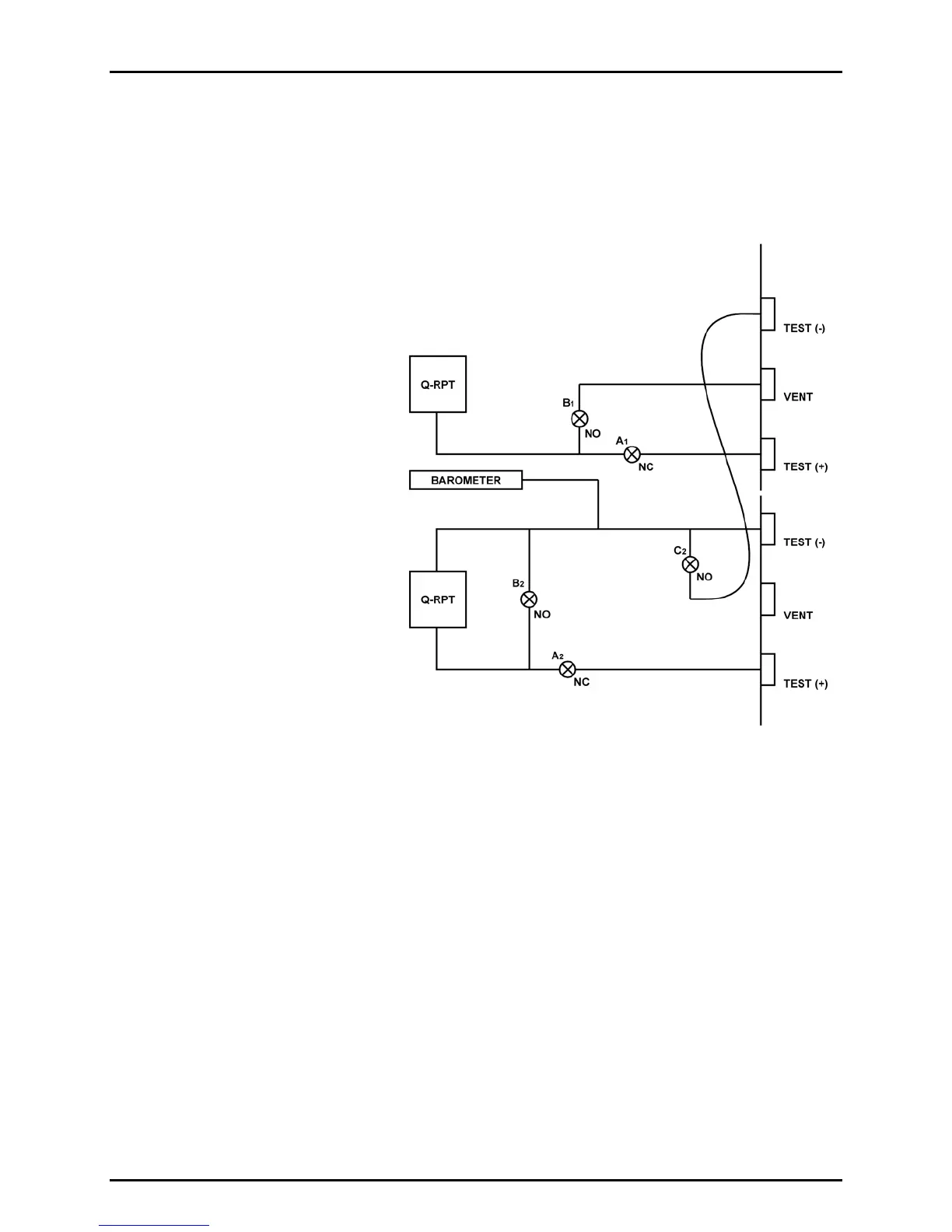

• An exception is the combination of an Axxx with SDS (<A10M) and a G15K or BGxxx shown below.
Axxx Q-RPT <A10M with G15K or
BGxxx
Figure 9. Pneumatic/hydraulic schematics of RPM4 with Two Q-RPT Modules
