Press the up arrow to move the yoke upward, and press the down arrow to move the yoke
downward. Note the position value moves in the opposite direction. This is because downward
yoke movement is considered positive since this is the direction of cut.
A quick tap on either the up or down arrow key results in a single step. Press and hold one of these
keys and the yoke moves continuously at a slow rate of speed. Release the key very briefly and
resume pressing it and the yoke accelerates and continues to move at a higher velocity as long as
the key is held down. Release the key and the yoke quickly decelerates to a stop.

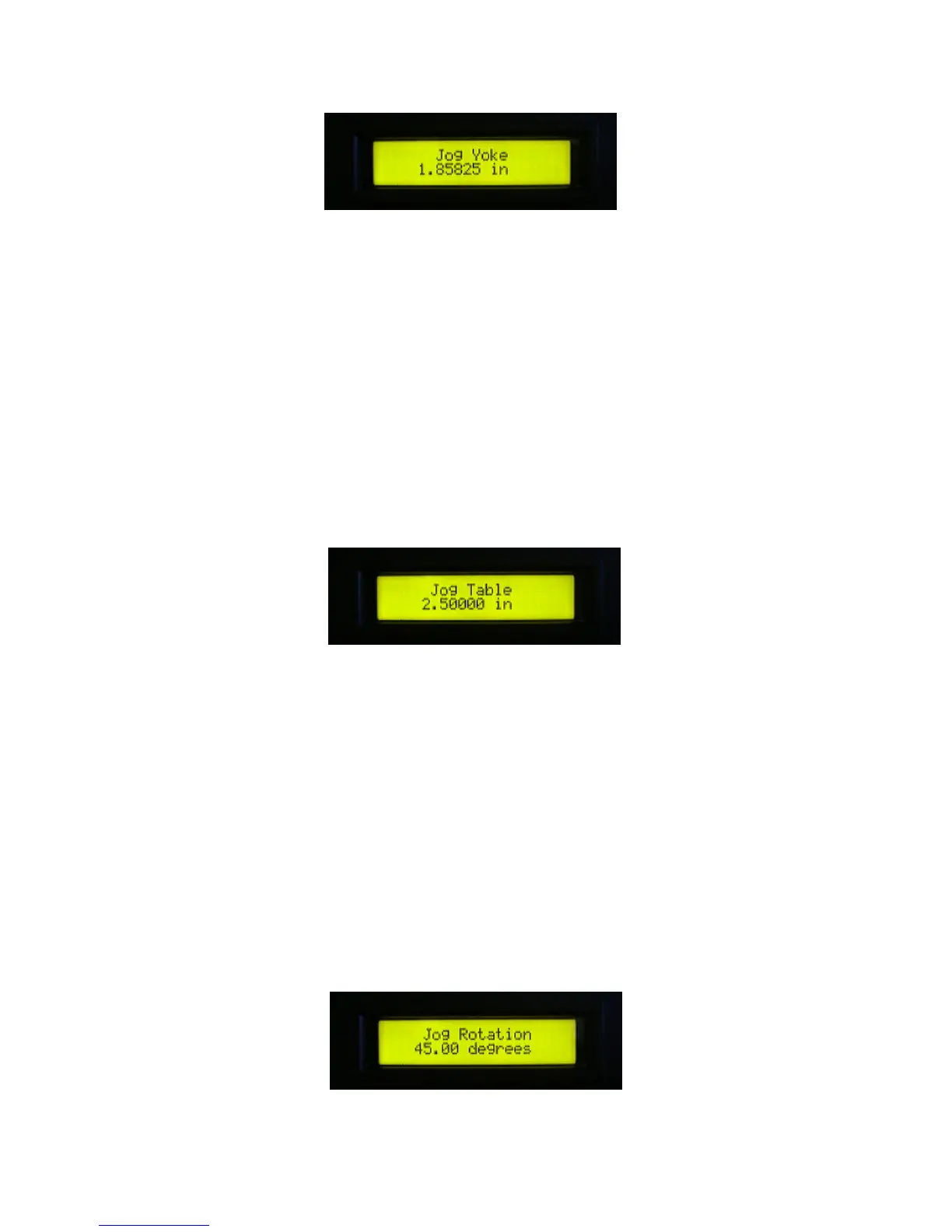

Press the left arrow to select another axis to jog, or the right arrow to move to the Jog Table menu.
The display indicates the current action and the absolute position of the table since power was
turned on. Each step of the stepper motor results in a movement of 0.00025 inches (or 0.00635 mm,
if configured for metric display).
Press the up arrow to move the table forward in the positive direction, towards the stepper motor.
Press the down arrow to move the table backward in the negative direction, away from the stepper
motor.
A quick tap on either the up or down arrow key results in a single step. Press and hold one of these
keys and the table moves continuously at a slow rate of speed. Release the key very briefly and
resume pressing it and the table accelerates and continues to move at a higher velocity as long as
the key is held down. Release the key and the table quickly decelerates to a stop.
Press the left arrow to select another axis to jog, or the right arrow to move to the Jog Yoke menu.
Jog the table rotation (Dicing Option only):
The display indicates the current action and the absolute position of the table rotation since power
on. Each step of the stepper motor results in a movement of 0.02 degrees.
