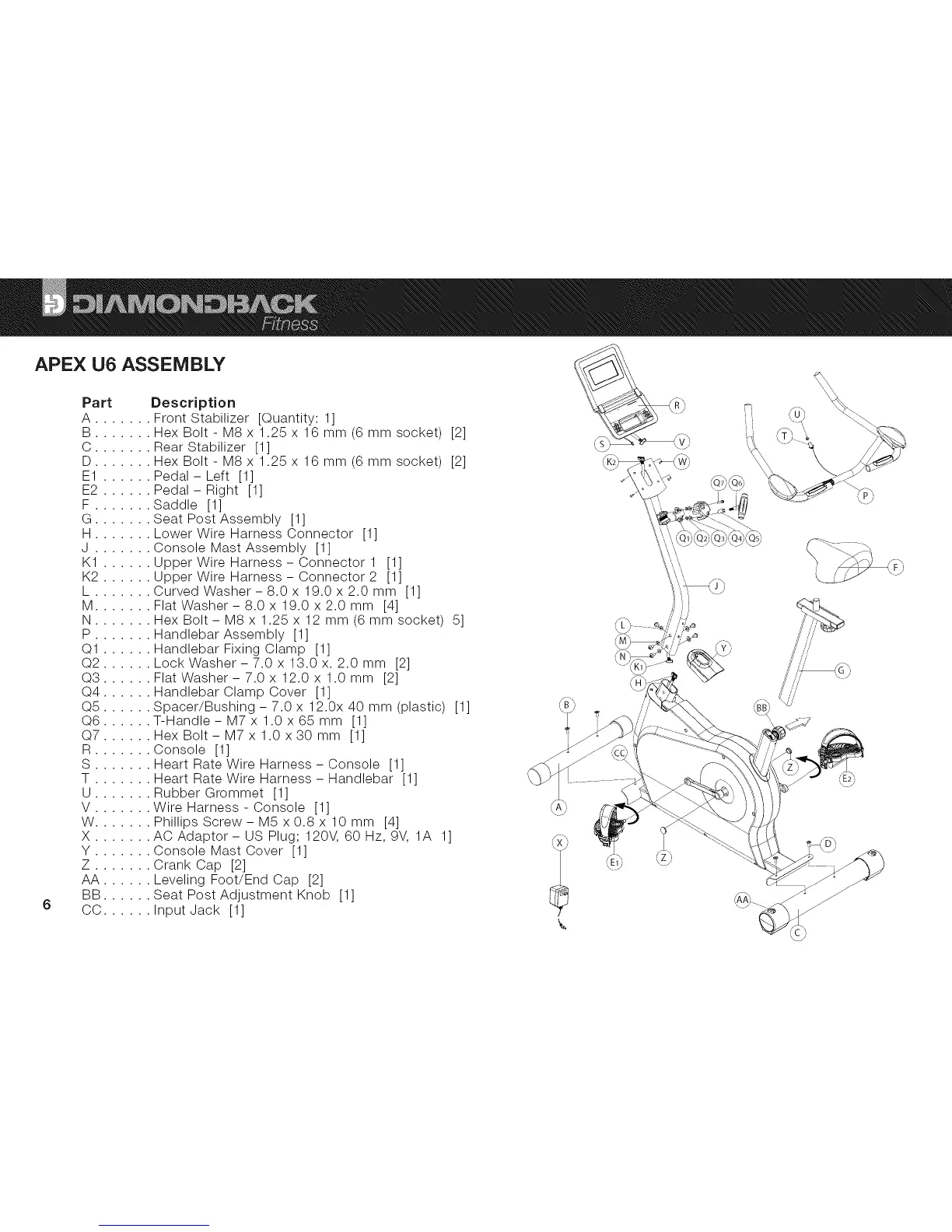

APEX U6 ASSEMBLY
Part Description
A ....... Front Stabilizer [Quantity: 1]
B ....... Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
C ....... Rear Stabilizer [1]
D ....... Hex Bolt - M8 x 1.25 x 16 mm (6 mm socket) [2]
E1 ...... Pedal - Left [1]
E2 ...... Pedal - Right [1]
F ....... Saddle [1]
G ....... Seat Post Assembly [1]
H ....... Lower Wire Harness Connector [1]
J ....... Console Mast Assembly [1]
K1 ...... Upper Wire Harness- Connector 1 [1]
K2 ...... Upper Wire Harness- Connector 2 [1]
L ....... Curved Washer- 8.0 x 19.0 x 2.0 mm [1]
M ....... Flat Washer- 8.0 x 19.0 x 2.0 mm [4]
N ....... Hex Bolt- M8 x 1.25 x 12 mm (6 mm socket) 5]
P ....... Handlebar Assembly [1]
Q1 ...... Handlebar Fixing Clamp [1]
Q2 ...... Lock Washer- 7.0 x 13.0 x. 2.0 mm [2]
Q3 ...... Flat Washer- 7.0 x 12.0 x 1.0 mm [2]
Q4 ...... Handlebar Clamp Cover [1]
Q5 ...... Spacer/Bushing - 7.0 x 12.0x 40 mm (plastic) [1]
Q6 ...... T-Handle- M7 x 1.0x65mm [1]
Q7 ...... Hex Bolt- M7 x 1.0 x 30 mm [1]
R ....... Console [1]
S ....... Heart Rate Wire Harness- Console [1]
T ....... Heart Rate Wire Harness- Handlebar [1]
U ....... Rubber Grommet [1]
V ....... Wire Harness- Console [1]
W ....... Phillips Screw- M5 x 0.8 x 10 mm [4]
X ....... AC Adaptor- US Plug; 120V, 60 Hz, 9V, 1A 1]
Y ....... Console Mast Cover [1]
Z ....... Crank Cap [2]
AA ...... Leveling Foot/End Cap [2]
BB ...... Seat Post Adjustment Knob [1]
CC ...... Input Jack [1]
